Stellite Band Saw Blade Tipped Machine Carbide Bandsaw Blades Tip Teeth Welding Equipment

Stellite Bandsaw Blade Production Line

• Technical data

Item	Technical data
Blade automatic feeder	Processing blade width:200mm
Saw blade punch	Processing blade width:200mm

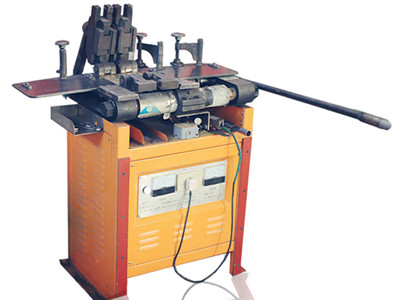

Saw blade welding machine	Blade width max.: 150mm blade thickness max.:1.25mm
Saw blade annealing machine	Blade width max.: 150mm blade thickness max.:1.25mm
Blade roll machine and working platform	Blade width max.: 150mm blade thickness max.:1.25mm
Blade recondition tool	cross hammer, recondition frame,etc
Alloy saw blade front angle grinder	Grinde blade width max.:150mm Grinding speed: 50 tooth/min
Electric simple side grinder(optional I)	Blade length:500-11000mm blade width :6—250mm teeth pitch range:10-45mm
Stellite saw blade side grinder(optional II)	Blade length:500-11000mm blade width: 6—200mm feeding speed: 1-60tooth/min teeth pitch range: 10-40mm
Stellite alloy tooth head welding machine Equipped with smart chiller	Processing blade length: 3000-14800mm blade width:30-200mm blade thickness 0.6-2mm welding speed:360-400tooth/hourWelding wire diameter:1.6-4.0mm voltage:220V,50HZ

Company  was set up in 1985, specialized in R/D, manufacture and export of wood-working machines to customers around the world. Currently our main running items are as below:

1. Portable Horizontal Band Saws,
2. CNC Vertical Band Saws,
3. Circular Saws (Angle Circular Saws with Double Blades and Twin Blades Saws, etc)
4. Debarkers & Chippers,

5. Large Size Heavy Duty Horizontal Band Saws,

6. Wood Shaving Machines,
7. Thicknesser/Planer and Moulder
8. Edge Banding Machine/Sanding Machine
9. Chainsaws,
10. Wood Chipper/Crusher,
11. Band Saw Blades and Circle Blades.

12.Pallet Nailing Machine

All the above machines can be powered with Electric or Diesel, and you can choose the manual or automatic way as per your requirements.

Working video link: https://www.youtube.com/channel/UC40G3W5PDYvMBTNjW3x4uug
