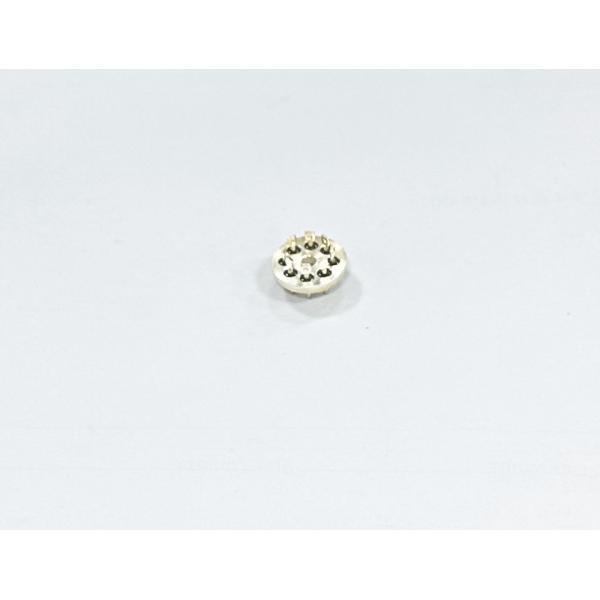

2mm Hermetic Cable Connectors Hermetic SMA Connector 4MPa N2 Pressure No Leak

Screw Mounted Hermetic Feedthrough Devices Connectors

Product Description:

At Goshen Sealing, we offer customizable sintered seal terminals to meet the specifications of our customers. Our terminals are created using 45 steel and have the following performance parameters:

• Hi-pot: 3000v leak current ≤ 0.5MA
• IR: 1000V IR > 1000MΩ
• Leak Test: 4MPa N2 pressure No leak
• Burst Test: 5MPa No leak
• Operating Temperature Range: -70°C - 300°C

Features:

• Product Name: Hermetic Feedthrough Connectors
• Material: 45 Steel
• Temperature Rating: -70°C To 300°C.
• Mounting Type: Mounting Screw
• Core column: Φ0.5mm-Φ3.2mm
• Hermetic Seal Connectors
• Hermetic Feedthrough Assemblies
• Hermetic Cable Connectors

Technical Parameters:

Our company's products all use an environmentally friendly electroless nickel plating method with coating thickness of 3-5 microns.

This plating does not contain traces of mercury, lead, cadmium and hexavalent chromium, all of which are considered extremely toxic.

We are proud to have a SGS environmental testing report that certifies our plating to be up to EU standards.

This environmentally friendly nickel plating coating has excellent electrical connecting properties.

Applications:

Our sintered joints are used in a vast array of sensor systems. They serve to act as a seal, insulation and transmit pressure signals. These areas include pressure, temperature and signal sensors.

The sintered joints can handle incredibly high levels of pressure and temperature, making them the preferred choice in these sensitive systems. Their durability and reliable performance make these components an excellent option.

Customization:

Support and Services:

Hermetic Feedthrough Connectors provide technical support and services to ensure that customers have the best experience and results when using the product. Our team of experts can provide guidance and advice on a variety of topics, from installation to troubleshooting and beyond. We also offer a range of technical support services, including remote and onsite assistance, as well as online support to answer any questions or concerns that may arise. Additionally, our customer service team is available to provide additional assistance with warranty and repair information.
