Inorganic Non Metallic Alumina Toughened Zirconia Corrosion Resistant ZTA Ceramics

Product introduction

Alumina-toughened zirconia ceramics (also known as ZTA ceramics) are inorganic non-metallic wear-resistant materials, corrosion-resistant, chemically Good and stable, and have high alumina hardness. Zirconia has good toughness, and the two materials form an excellent composite with high strength and high toughness, which is more versatile.

Alumina-toughened zirconia ceramics have higher flexural strength and fracture toughness at room temperature, so ZTA ceramics have excellent wear resistance. The performance of ZTA ceramics is better than 99 alumina ceramics, and the price is much lower than that of zirconia ceramics; in many occasions where alumina ceramics are not competent, it shows a better cost performance than zirconia ceramics. It is widely used in machinery, mining, chemical, port, and other industries.

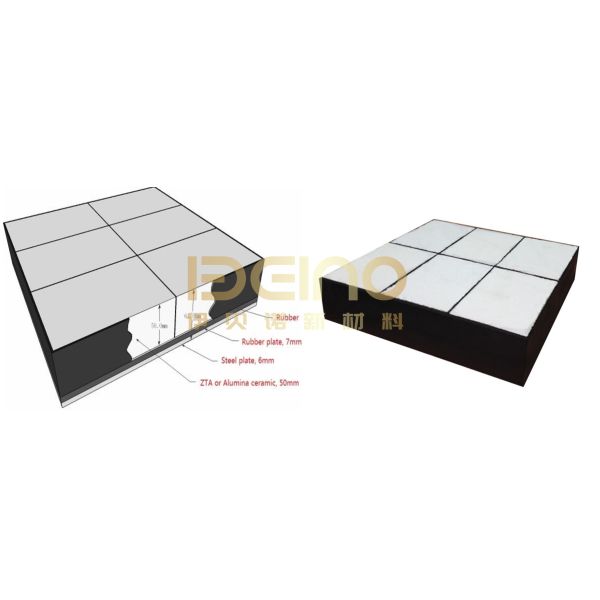

The Alumina toughened zirconia ceramic liner produced by our company uses the art of thermal vulcanization to vulcanize the ZTA ceramic to the steel plate through the rubber. The back is equipped with bolts to form a three-in-one ceramic liner with high wear resistance, impact resistance, and easy installation. is suitable for high-wear industries such as mines and ports with strong impact and large conveying materials. Zirconia toughened alumina ceramic three-in-one liner is 2.5 times the service life of alumina ceramic liner. At present, it is mainly concentrated on the application of chutes, hoppers, and other equipment, which are used in mines, ports, and other industries with large conveying capacity, large impact, and harsh working conditions.

Company Introduction

The company’s main products: are wear-resistant ceramic liners, pipeline lining ceramics, ceramic drum encapsulation, overall equipment lining ceramics, ceramic pump pipes, etc., mainly serving thermal power, cement, steel, ports, coal, ports, mineral processing, Engineering machinery and other industries, with rich on-site construction and installation experience, providing a series of supporting services from production to construction.

Technical parameters

In actual use, ZTA ceramics are more wear-resistant than 95% alumina ceramics.

1. The corundum ceramic material has the characteristics of high-temperature resistance, high strength, good insulation, and lightweight. Due to the brittleness of the corundum ceramic material, its application range is limited. To overcome the brittleness of ceramics, a wide range of toughening methods include ZrO2 Toughness and fiber toughening. ZTA ceramics are fired using a tunnel resistance kiln isostatic pressing process.

2. Zirconia toughened alumina ceramics are based on alumina and add a certain amount of zirconia ceramics. The wear resistance and toughness are between alumina ceramics and zirconia ceramics.

3. In actual use, ZTA ceramics are more wear-resistant than 95% alumina ceramics, and cheaper than zirconia ceramics.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a manufacturing enterprise specializing in the production of wear-resistant ceramic pipes, wear-resistant ceramic liners, and ceramic linings for various equipment.

Q: What Yibeinuo Produce?

A: Pipelined ceramics (patch ceramic + integral ceramic ring)

Wear-resistant ceramic roller rubber coating.

Wear-resistant ceramic lining of hopper and chute

Cyclone lined with ceramic anti-wear

Concrete pipe pile (electric pole) industry pipe lined with wear-resistant ceramic

Ceramic + rubber vulcanized two-in-one sulfur liner

Ceramic + rubber + steel plate three-in-one vulcanized liner

Ceramic + steel plate two-in-one porcelain steel liner

Engineering machinery accessories (ceramic pump tube + ceramic transition sleeve)

Medium frequency hot simmering seamless steel pipe

Q:What Tecera provide?

A: Provide the best anti-wear design solution for equipment wear

Provide high-quality wear-resistant ceramics

Provide consulting services for industrial equipment wear

Provide engineering construction and installation services

Q: How to get a quotation?

A: Please provide product size (preferably drawings), steel parts and wear-resistant material requirements, operating conditions (temperature), material transportation and material particle size, pressure requirements, surface treatment, paint appearance color, and requirements, etc.

Q: ZTA ceramic or alumina ceramic which is more wear-resistant

A: ZTA ceramics is better

Q: How long is your delivery time?

A: The general delivery time is 20-35 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.

YIbeino New Materials focuses on the research and development of new wear-resistant ceramic materials and is committed to providing material conveying, pneumatic conveying system engineering design and equipment wear problems under various complex working conditions for cement, thermal power, steel, coal, port, chemical, new energy, mineral processing, engineering machinery, concrete pipe pile, and other industries. We have 20 years of industry experience in the field of wear-resistant materials, We provide one-stop service from production to installation, according to customer demand for product design, research and development, production, processing, and other services.

The company has a professional anti-wear construction team. Relying on our strong technical strength and years of accumulated practical experience, we can provide timely solutions to various wear problems and select appropriate wear-resistant materials and construction plans based on actual working conditions. Rational product design, on-site construction, and comprehensive after-sales service can help you effectively improve the operating efficiency and service life of your equipment and solve equipment wear problems under various complex working conditions.

We have more than 20 years of industry experience in the field of wear-resistant materials and a group of experienced technical and management personnel. We can provide product design, research and development, production, processing, and other services according to customer needs. The company has a full set of advanced equipment for the production of wear-resistant products. Our company's main products are wear-resistant ceramic sheets, wear-resistant ceramic liners, ceramic composite pipes, wear-resistant ceramic elbows (lithium battery pneumatic conveying elbows), wear-resistant ceramic roller lagging, the overall equipment is lined with ceramics, ceramic pump truck pipes, alumina structural ceramics, ZTA ceramics and other series of products. The products have high strength, high hardness, good wear resistance, and corrosion resistance.

Hunan YIbeino New Materials Co., Ltd. has passed the ISO9001:2015 quality system certification. The company has a strict quality control system. Product design, manufacturing, and installation services are fully integrated into the ISO quality management system. From raw material purchase and ingredients, All aspects from production process management to factory inspection and control ensure stable product performance and excellent quality.

The company has users all over the world, mainly exporting to the United States, Germany, Sweden, India, Turkey, the Netherlands, Italy, Spain, Japan, South Korea, Russia, Vietnam and other countries. The company adheres to the business philosophy of "integrity, hard work, innovation" and adheres to the "customer We provide our customers with high-quality services based on the principle of "quality first", welcome to patronize us!

Company Advantage

The company is a manufacturing enterprise, we have many years of on-site industry experience and can provide customers with the best equipment anti-wear design, product samples, quality service, and competitive prices.

Company Honor

The product patents are as follows: "A kind of elbow of pump pipe discharge anti-clogging pipe", "A lining board installation structure", "A lining board processing console", "A conveying device for ceramic-lined pipes" etc.
