| Categories | Pneumatic Air Cylinders |
|---|---|
| Brand Name: | FESTO |
| Model Number: | DSBG-200-200-PPVA-N3 |
| MOQ: | 1pc |
| Price: | EXW USD400-500 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 300 pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | plastic bag, carton，OPP bag |
| Type: | DSBG-200-200-PPVA-N3 |
| Brand: | FESTO |
| Part no: | 2390146 |
| Piston diameter: | 200 mm |
| Piston rod thread: | M36x2 |
| Symbol: | '00991235 |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
Excellent flexibility thanks to the wide range of variants
Conforms to standard:ISO 15552
The variants can be configured according to individual needs using a modular product system
Technical data
| Stroke | 200mm |
| Piston diameter | 200 mm |
| Piston rod thread | M36x2 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Tie rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 48 mm |
| Cushioning length, return stroke | 48 mm |
| Product weight | 20413 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G3/4 |
| Note on materials | RoHS-compliant |
| Material cover | Cast aluminium, coated |
| Material piston seal | NBR |
| Material piston | Cast aluminium |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | NBR |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material bearing | Metal polymer compound |
| Material collar nut | Galvanised steel |
| Material tie rod | High-alloy steel |

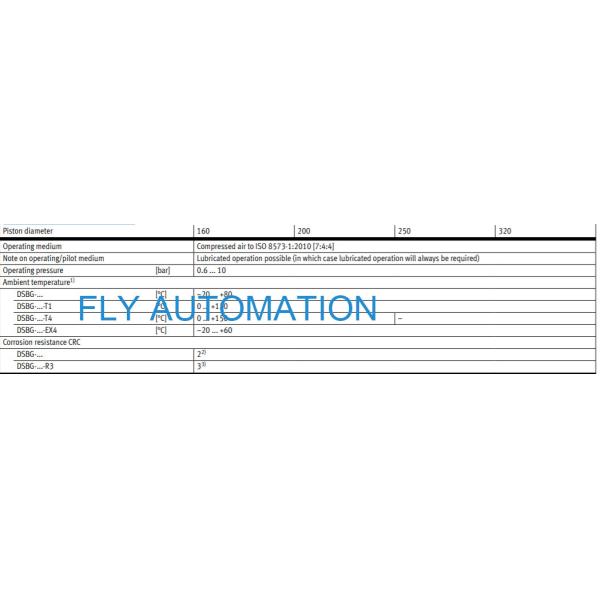

Operating and environmental conditions
There are so many models ,please contact with me.
Attention
1.Before you endorse the parcel, please do open the package, and
check out whether the items are damaged during the shipping
process.
If so, please do refuse to sign for the parcel, the courier will
send back the package to our company. Otherwise we are not
responsible for this...
2.Any order is welcome. we will give discounts and combined
shipping costs for you if you order more or mix order. If you have
any questions.
please feel free to contact us.
|
