Name: Outdoor Taxi Display Advertising Sign P5 Roof Led OEM
Brand: LONGVISION
Price: 899 USD

Product Details
Company Profile

Outdoor Taxi Display Advertising Sign P5 Roof Led OEM

Outdoor Taxi Display Advertising Sign P5 Roof Led OEM

Advantage:

1, Patent structure design,aluminum case with oxidation treatment,coating

film for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.

2, High tranparent pc cover that not turning yellow color or old in 10 years.

3, high level powersupply,beyond voltage,current load,short circuit will be protected,

work in -40°C~+70°C environment.

4, Web control and could manage in anytime and any location through web browser.

No need for download software.

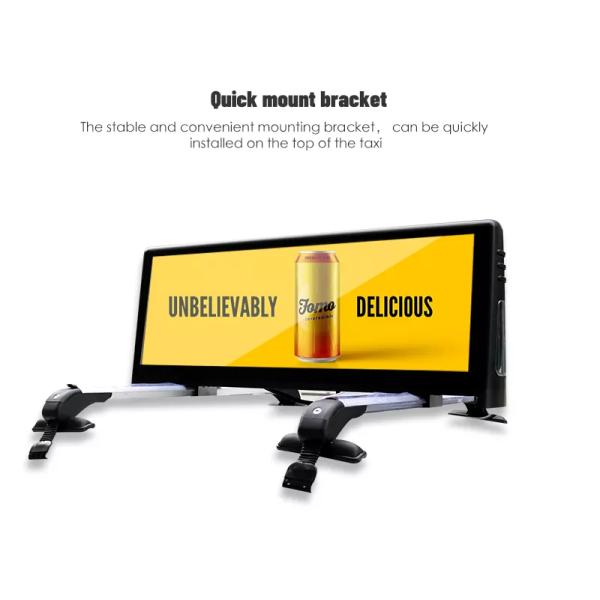

5, Easy installtion bracket , fast maintenance structure.

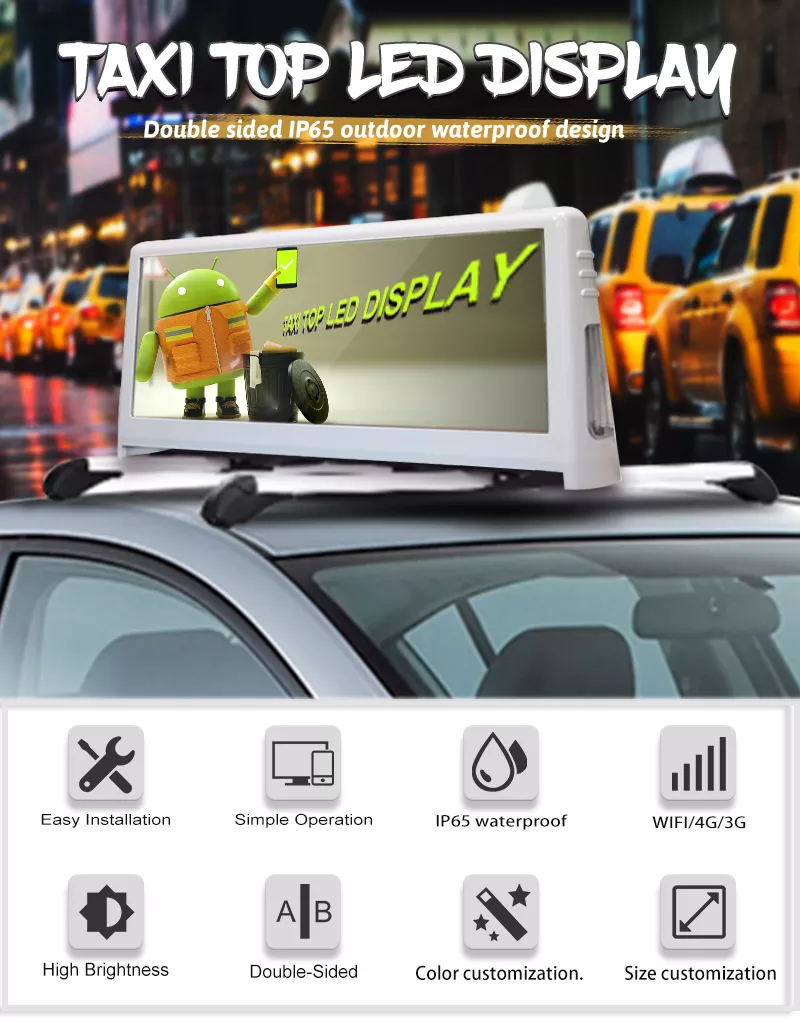

Taxi top sign is for outdoorsolution with slim and beautifulaluminum and pc case. Base on

the car power system and windresistance,it will not damage thecar or block the wind in

heavy condition. With high brightness but low power comsumption,it will be useful for bring

moreads .The structure is easy to maintain and fast to check any problem.It will be with 2-4

years warrenty according to the car request.

Product Parameters
Item	P2.5	P3.33	P4	P5
Package Mode	SMD1415	SMD1921	SMD1921	SMD1921
Pixel Pitch	2.5mm	3.3mm	4mm	5mm
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Module
Module Size(W*H)	320mm*160mm	320mm*160mm	320mm*160mm	320mm*160mm
Module Weight	0.5Kg	0.6Kg	0.5Kg	0.5Kg
Module Resolution(W*H)	128Dots*64Dots	96Dots*48Dots	80Dots*40Dots	64Dots*32Dots
Pixel Density	160000dots/㎡	91828dots/㎡	62500dots/㎡	40000Dots/㎡
Scan Mode	16S	16S	10S	16S
Refresh Rate	3840Hz	3840Hz	3840Hz	1920-3840Hz
Brightness	≥5300CD/㎡	≥5500CD/㎡	≥5500CD/㎡	≥5500CD/㎡
Signal Processing	16Bit	16Bit	16Bit	16Bit
Port	HUB75	HUB75	HUB75	HUB75
Power Consumption	45W	45W	40W	40W
Protection Level	IP65	IP65	IP65	IP65
Temperature	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃	Operating:-20℃～70℃ Storage:-40℃～85℃
Relative Humidity	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation	Work:10%～90%,No Condensation Store:10%～90%,No Condensation
Cabinet(Aluminum Cabinet or Iron Cabinet)
Screen Area(W*H)	960mm*320mm Double-sided	960mm*320mm Double-sided	960mm*320mm Double-sided	960mm*320mm Double-sided
Cabinet Size(WHTHK)	1080mm450mm58mm	1080mm450mm58mm	1080mm450mm58mm	1080mm45mm58mm
Cadbinet Weight	15Kg	15Kg	15Kg	15Kg
Cabinet Resolution(W*H)	384pixels*128pixels	288pixels*96pixels	240pixels*80pixels	192pixels*64pixels
Module Distribution(W*H)	32 Double sided	32 Double sided	32 Double sided	32 Double-sided
Installation Method	Fixed roof installation	Fixed roof installation	Fixed roof installation	Fixed roof installation
Power Consumption	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS	Average:160W/PCS Max.:480W/PCS

Item	P2.5	P3.33	P4	P5
Best View Distance	2.5-15m	3m-16m	4m-18m	5m~20m
Best View Angle	140°(W)～120°(H)
Flatness	≤0.2mm
Working Voltage	DC12～24V±15% 40～65HZ
Control Method	Asynchronous Control, 4G control
Control Terminal	LaptopMobile Phone
Temperature Sensor	Including
Brightness Sensor	Including
Smoke Alarms	Optional
Content	Office(DNG/JPEG/GIF/PNG/BMP/PSD) (AVI/JPEG/MOV/MPEG/DAT/VOB/BMP/JPG/TIFF/GIF/FLI/FLC/RMVB)
Life span	＞50000Hours
Package(Aluminum Cabinet)
Packing	Plywood case	Plywood case	Plywood case	Plywood case
Quantity	2PCS	2PCS	2PCS	2PCS
Weight	45kg	45kg	45kg	45kg

FAQ :

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Longvision Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Taxi Top Led Display
Brand Name:	LONGVISION
Model Number:	LTA
Certification:	CE, ROHS, UL, FCC
Place of Origin:	CHINA
MOQ:	1 Unit
Price:	USD899-1600/Unit
Payment Terms:	T/T, D/P, Western Union, MoneyGram
Supply Ability:	5000 Units per month
Delivery Time:	5-10 work days
Packaging Details:	wooden case package
Material:	Aluminum
Color:	Black Red White
Brightness:	5000-6000cd
Refresh Rate:	1920-3840hz
Grey Scale:	14-16bit
Cabinet Size:	960*320mm
Viewing Angle:	160/160
Color Temperature:	3200-9300k
Life time:	100000 hours
