| Categories | Stainless Steel Seamless Tube |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASTM A213/ASME SA213-13a TP316/316L, TP304/304L |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 7DAYS |
| Packaging Details: | PALLET,PLYWOOD CASE |
| STANDARD: | ASTM A213 , ASME SA213 , EN10215-6 , DIN17456 |
| MATERIAL: | TP304/304L/304H , TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L , 2205, 2507, S31803, S32750, S32760 |
| OD: | 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2) |
| WT: | 0.89,1,1.2,1.5,1.65,2,2.11MM... |
| TYPE: | SEAMLESS,WELDED |
| STRUCTURAL CROSS: | 1CORE---16 CORES |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

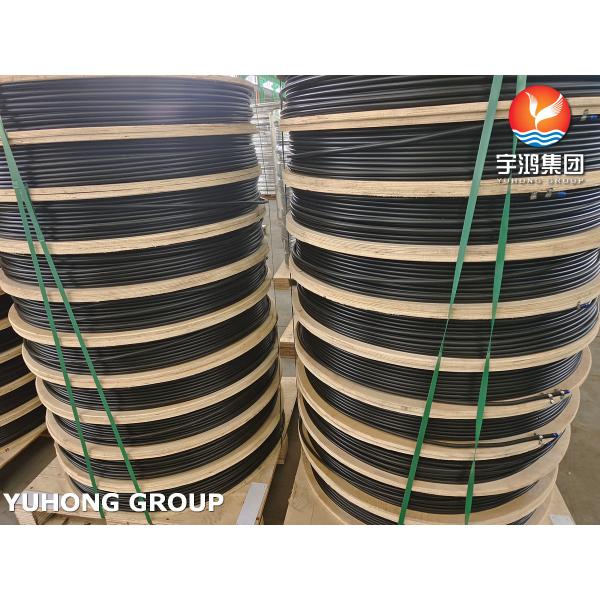

Multicore Tubing Single Sheathed Core Stainless Steel Seamless Tube TP304 PVC
Multicore tubes efficiently connect installation, maintenance and
control at the same time. They are made of stainless steel, cunifer
or copper.
With a total of 10 tubes in the bundle, and other tube dimensions
from 6 to 15 mm or from ¼” to ½” – up to the maximum operating
pressure of 440 bar.Multicore tubes are used for pneumatic and
hydraulic remote control, measuring and monitoring
systems.materials are ASTM TP316/ 316L, TP304/304L The multicore
tube consists of one to nine stainless steel tubes laid up spirally
inside an extruded outer PVC sheath.
For easy identification and protection purposes each individual
tube is PVC sheathed in a different color. The extruded outer
sheath is made of oil and seawater resistant,weatherproof, flame
retardant, corrosion and acid resistant PVC.
They are used mostly in,
| 1.Shipbuilding |
| 2.Offshore plants and for liquid, gas or electricity transport. |
|
