| Categories | Aluminum Sheet Plate |
|---|---|
| Brand Name: | Sewaly Metal |
| Model Number: | 5052, 5083, 5754, 5005, 5086,5182 |
| Certification: | ISO9001;ISO14001; ISO 18001; TUV |
| Place of Origin: | China |
| MOQ: | 1 ton |
| Price: | $3,000.00/ton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Ton/Tons per Month |
| Delivery Time: | 5-10/days |
| Packaging Details: | Standard seaworthy export packing or according to the customers' request. |
| Keyword: | 5052 Aluminum Sheet |
| color: | silver, Customer requirements |
| Grade: | 5052, 5083, 5754, 5005, 5086,5182 |
| Temper: | O-H112, T351-T851 |
| Surface treatment: | Coated, Embossed, anodizing, customer request |
| packing: | standard export packing |
| application: | construction, decoration, transportation, etc. |
| Surface: | Bright, Anodizing, polished |
| Company Info. |
| Shanghai Walmay Metal Group Co., Itd |
| Verified Supplier |
| View Contact Details |
| Product List |

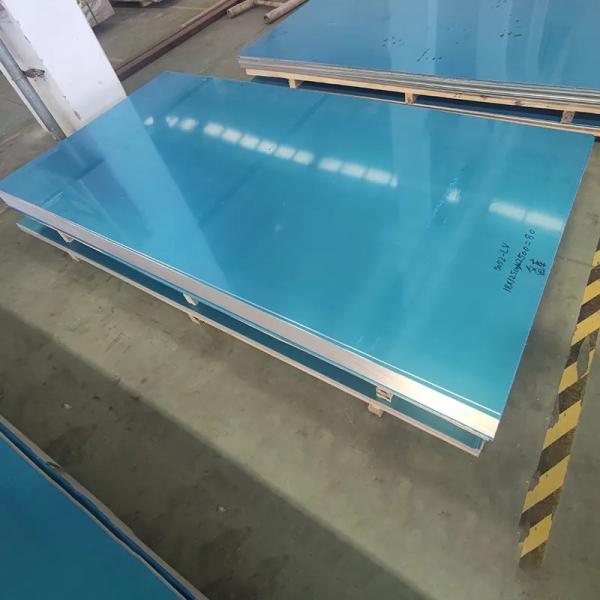

Aluminum Sheet 5052, 5083, 5754, 5005, 5086,5182 Aviation Grade Aluminum 5000 Series Polished Aluminium Alloy Plate
5052 aluminum sheet light in weight, nonmagnetic, and non-heat treatable. It has good workability and high fatigue strength with good resistance to correction even in salt water. Besides, it can be anodized to improve the correction resistance of the material in a corrosive environment.
5052 aluminum sheet Chemical Composition: Magnesium (Mg): 2.2-2.8%; Chromium (Cr): 0.15-0.35%; Manganese (Mn): 0.1%; Iron (Fe): 0.4%; Silicon (Si): 0.25%; Copper (Cu): 0.1%; Zinc (Zn): 0.1%; Titanium (Ti): 0.1%; Others: 0.05% each, 0.15% total.
Product Parameters :
1)Product Specification and Steel Grade
| Type | 3003 Aluminum Sheet |
| 1000 Series | 1050 1060 1070 1100 |
| 2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 |
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 |
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 |
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 |
| 7000 Series | 7075,7050,7A04,7472,7475 |
| Thickness(mm) | aluminum plate 0.2mm-300mm |
| Width(mm) | 100-2800mm |
| Length(mm) | 2000mm,2440mm,6000mm, or as required. |
| Surface | Wire drawing, oxidation, PS, Mirror surface, Embossing etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114 |
| Type | coil/sheet/strips/plate |
| Payment | L/C, T/T, D/P, West Union, etc. |
| Package | Standard export packages, such as Wooden pallets |
2)Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
| Each | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99 | |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | - | - | 0.1 | - | 0.05 | 0.15 | remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remaind |
AluminumSheet Product Factory Building:
High quality is inseparable from strong quality control and inspection testing. Our policy is to ensure that all our products must meet or exceed GB, ASTM, ASME, JIS, EN, DIN, BS ISO, and other quality standards.
Aluminum Sheet Application:
Due to its corrosion resistance, the 5052 aluminum sheet is highly
suitable for marine applications, ships, and other marine
structures.
5052 aluminum sheet/coil can be applied to bodies of boats, buses,
trucks, and trailers, as well as to chemical drums.
5052 aluminum sheet is also vastly used for electronic casings,
such as notebook computers and televisions.
Architectural Applications: 5052 aluminum sheet's formability and aesthetic qualities make it suitable for architectural components, such as building facades, roofing, and decorative elements.
Aluminum Sheet Package:
Waterproof Paper + Pallet
FAQ
Q1. Where is your factory?
A1: Our company’s processing center is located in Foshan, Guangdong, China. It is well equipped with kinds of machines, such as laser
cutting machine, mirror polishing machine and so on. We can provide
a wide range of personalized services according to the customers’
needs.
Q2. What are your company's main products?
A2: Our main products are stainless steel plate/sheet, coil,
round/square pipe, bar, channel, etc.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q4. What are the advantages of your company?
A4: We have many professionals, technical personnel, more
competitive prices, and better after-sale service than other
stainless steel companies.
Q5. How many countries have you already exported?
A5: Exported to more than 50 countries mainly from America, Russia,
UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide a sample?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7 days.
|
