| Categories | Architectural Wire Mesh |
|---|---|
| Brand Name: | yuntong |
| Model Number: | 5 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10 sqm |
| Price: | USD 10-25/sqm |
| Supply Ability: | 8000sqm/week |
| Packaging Details: | wooden case |
| Corrosion Resistance: | Excellent |
| Wire Diameter: | 1.2mm-6.0mm |
| Installation: | Easy |
| Flexibility: | Good |
| Color: | Silver |
| Surface Treatment: | Polishing |
| Material: | Stainless Steel |
| Durability: | High |
| Company Info. |
| Anping Yuntong Metal Wire Mesh Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

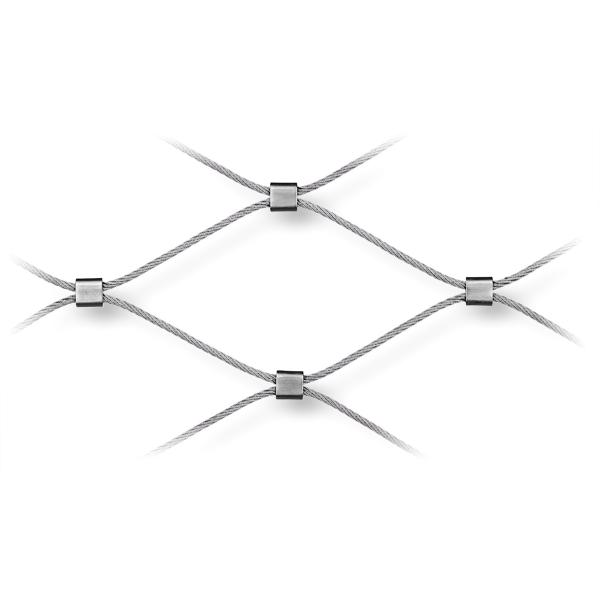

The flexible Stainless Steel Diamond
Rope Mesh For Building Construction ferrule type is rhombus mesh, has excellent flexible
performance, virtually indestructible, most impacting-resistant and
breaking resistant force, most resisting rain, snow, hurricane. As
the material is virtually indestructible stainless steel, then it
can be safely contain any species on land, in the air indoors or
out. And the weave opening, we can infinitely customized to meet
your exhibits exact specifications. No matter how large, how small,
or how cunning you specimens are, we assure their complete security
Technical Parameters:
Material: SUS 304 SUS 316
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm
6.0mm 10mm etc.
Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm
80*80mm 100*100mm 150*150mm 200mm*200mm 300*300mm or customized
etc.
Height: general 0.5-30meter
Length: general 0.5-30mete
Anping Yuntong Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) | ||||||
| Mesh Aperture | Wire diameter | |||||
| OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
| 20 x 35 | 4/5×1.39 | YT1220 | ||||
| 25.4 x 44 | 1×1.73 | YT1225 | YT1525 | |||
| 35 x 61 | 1.37×24 | YT1235 | YT1535 | YT2035 | ||
| 38 x 65.8 | 1-1/2×2.6 | YT1235 | YT1538 | YT2038 | YT3038 | |
| 51 x 88.3 | 2×3.46 | YT1251 | YT1551 | YT2051 | YT3051 | YT4051 |
| 60 x 105 | 2.4×4.16 | YT1260 | YT1560 | YT2060 | YT3060 | YT4060 |
| 76 x 131.6 | 3×5.2 | YT1276 | YT1576 | YT2076 | YT3076 | YT4076 |
| 90 x 156 | 3.5×6.15 | YT1290 | YT1576 | YT2090 | YT3090 | YT4090 |
| 102 x 176.7 | 4×6.9 | YT20100 | YT15100 | YT20100 | YT30100 | YT40100 |
| 120 x 210 | 4.75×8.23 | YT12120 | YT15120 | YT20120 | YT30120 | YT40120 |
| 160 x 280 | 6.3 x 11 | YT12160 | YT15160 | YT20160 | YT30160 | YT40160 |
| 180 x 315 | 7.08 x 12.4 | YT12180 | YT15180 | YT20180 | YT30180 | YT40180 |
| 200 x 350 | 7.87 x 13.78 | YT12200 | YT15200 | YT20200 | YT30200 | YT40200 |
| 250 x 450 | 9.84 x 17.7 | YT12250 | YT15250 | YT20250 | YT30250 | YT40250 |
| 300 x 525 | 11.8 x 20.67 | YT12300 | YT15300 | YT20300 | YT30300 | YT40300 |
Applications:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
|
