OLAB Type 2 Way Steam Solenoid Valve Armature For Coffee Machine Parts

OLAB Type 2 Way Steam Solenoid Valve Armature For Coffee Machine Parts

A solenoid valve is an electrically controlled valve that shuts off or allows fluid flow from one point to the other. The valve consists of 3 main components: a solenoid coil, a solenoid armature and a valve body.

Solenoid coil consists of several turns of enameled wire, taking a cylindrical shape and hollow from the inside. When current flows through the coil, a corresponding magnetic field is produced.

Solenoid armature is the pressure-tight internal part of a solenoid valve. We produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.

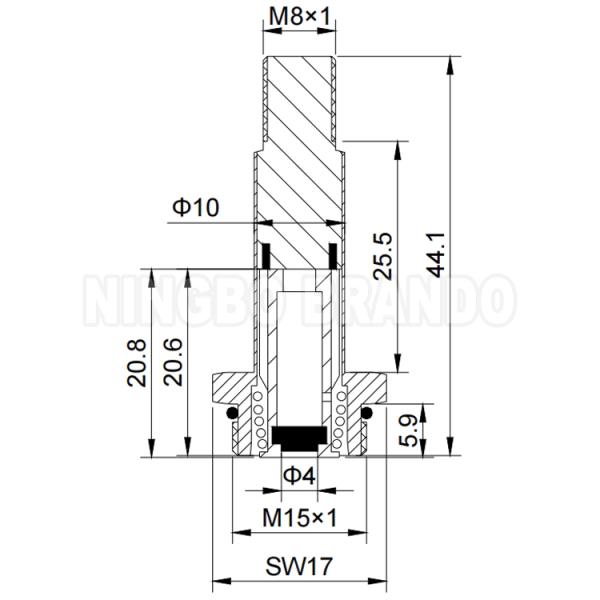

Technical Data:

	BRANDO Model	BAPC210029561
	Guide Tube Material	SS304
	Seal Material	FKM
	O-Ring Material	PTFE
	Function	2 Way Normally Closed

Fitted Coil:

	BRANDO Model	BB10029502
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	4-20VA, 3-6W
	Other voltage and power can be customized
	Connector	DIN43650B

Our Production:

More Solenoid Coils and Armatures:

FAQ: How to choose a right solenoid armature?

1. Working voltage: AC or DC
2. Function: 2/2 way or 3/2 way
3. De-energized state: Normal Closed, Normal Open or Divert
4. Stroke of the matched valve body
5. Valve’s orifice size
6. Working environment: working medium, temperature, pressure, etc

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
