| Categories | Fiber Optic Cable Reel |
|---|---|
| Brand Name: | Qingying or QY |
| Model Number: | LP-10 |
| Certification: | ISO 9001 2015 |
| Place of Origin: | Dongguan China |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 Meter/Meters per Week |
| Delivery Time: | 7 days after receive payment |
| Packaging Details: | Wooden box |
| Product name: | Metal cable reel |
| Application: | Tatical military optical fiber cable |
| Cable Length: | 200m-3000m |
| Reel size: | 390mm*490mm*590mm |
| Material: | Compeletly Metal |
| Gross Weight: | 23KG |
| Package type: | Wooden box |
| Wheels: | Four wheel |
| Fetures: | All metal structure, 3 speed rate adjustable, rod, pulley. |
| Enviroment: | Harsh ,water, snow, Telecomunication |

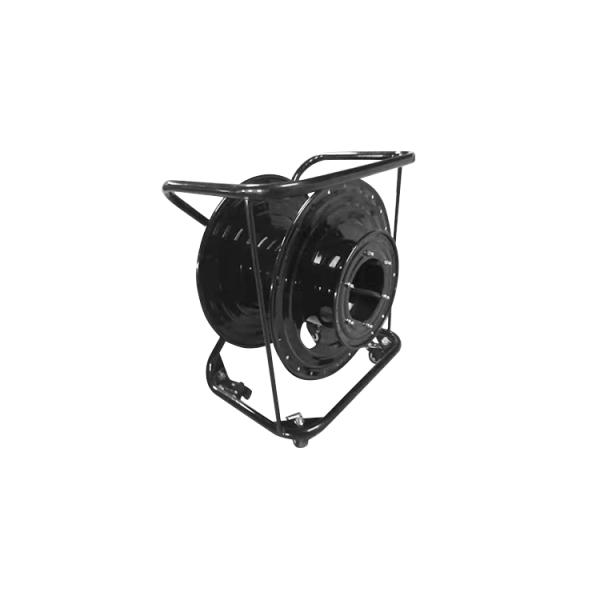

The mobile per-terminated armoured cable reel is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment. The armoured cable is flexible and is able to withstand multiple usages without kinks.
One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipment. Generally these will be customized base on user's requirement so there are options of various cable and connector type with any cable length which then will determine the size of the reel.

1. Internal fiber contacts prevent contamination and damage to
fiber ends
2. Stainless steel dustcaps are durable and waterproof
3. High impact and crush resistance
4. Stainless steel precision machined for durability
5. Handle permanently attached to disc - direct crank rewind

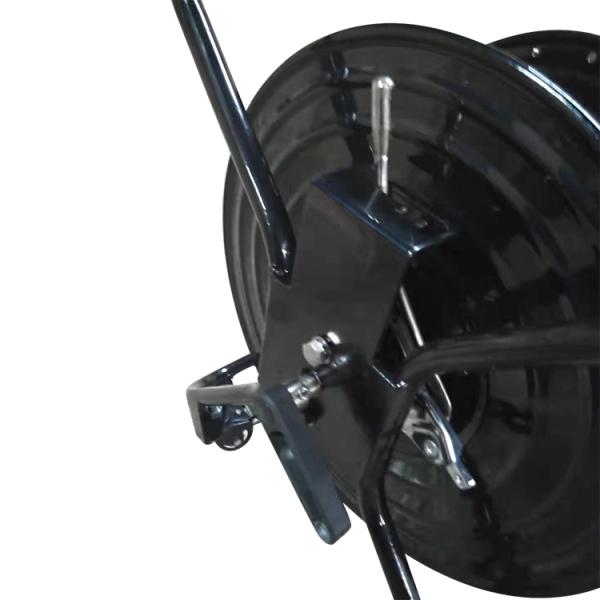

6. Adjustable cam-lock drag brake
7. Storage drum extensions for breakout and easy access

Key features:
| Product model | LP-10 | |||||||
| Packing size | 390*490*590mm | |||||||
| Gross weight | 23KG | |||||||
| Net weight | 16.5KG | |||||||
| Material | Metal | |||||||
| Cable diameter | 3.0mm | 4.0mm | 5.0mm | 6.0mm | 7.0mm | 8.0mm | 9.0mm | 10.0mm |
| Capacity | 3000m | 1600m | 1000m | 800m | 600m | 400m | 300m | 200m |
Package: with wooden box

|
