| Categories | Truck Air Springs |
|---|---|
| Brand Name: | GUOMAT |
| Model Number: | 1T9206 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | GuangDong, China |
| MOQ: | 6pcs |
| Price: | $89.9-99.9/pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 2-8 work days |
| Packaging Details: | strong carton box or as customers need |
| Type: | Air Spring |
| Application: | For Truck Air Suspension |
| Material: | Metal and Rubber |
| Color: | Black |
| Condition: | 100% Brand-New |
| Packing: | Neutral Packing |
| Firestone: | WO1-358-9206 |
| MOQ: | 10 pcs |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

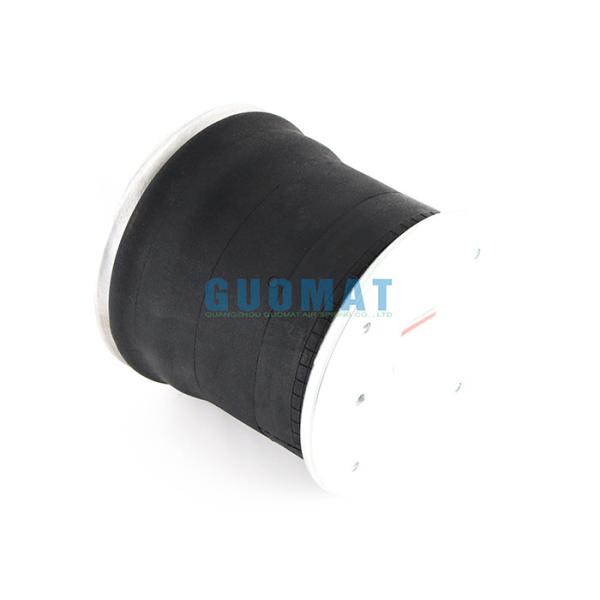

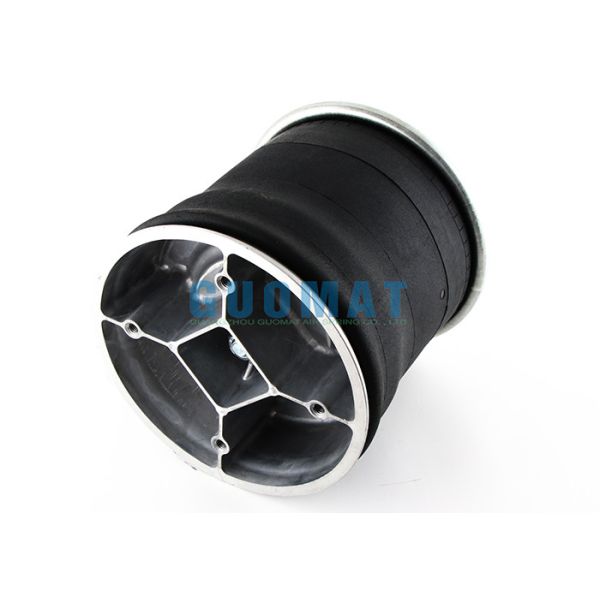

1T19L5 Style Firestone Air Spring W01-358-9206 Rolling Lobe Truck
Air Suspension
Product Details
Air spring part number W01-358-9206, also known as 1T19L5 air spring. GUOMAT is a well-known brand specializing in the production of air springs and other anti-vibration solutions for heavy-duty trucks, trailers, commercial vehicles, and industrial equipment.
Brand: GUOMAT
Model Number: 1T9206
Material: Rubber+Steel
Warranty: 1 Year
| 1 | Suspension Support |
| 2 | Load Leveling |
| 3 | Improved Stability |
| 4 | Adjustable Ride Height |
| 5 | Enhanced Comfort |
| 6 | Braking Assistance |
Precautions
1. Do not use the air spring beyond the recommended safe extension
height.
2. To extend the life of the air spring, do not use the air spring
below the minimum compression height
3. Do not use air springs under pressure exceeding 0.7Mpa
4. Do not use the air spring in a twisted state
5. Rough operations should be prohibited during transportation,
loading and unloading
6. It should be stored in a dry and ventilated warehouse to avoid
direct sunlight.
7. The installation site should have enough installation space to
avoid contact with oil, acid and alkali substances and sharp
substances.
8. Avoid touching the air spring with sharp tools
The Technical Data
Top cover diameter: 11.31
Center distance between threaded holes: 6.25
Distance between threaded hole and air hole: 3.12
Base diameter: 11.81
Center distance between threaded holes: 7.88
Outer diameter: 10.62
Piston height: 3.74
Maximum height: 17.00
Minimum height: 5.30
Truck Air Spring For SCANIA
| Firestone Bellow | Firestone Number | Scania |
| 1T15LR4 | W01-095-0481 | 1515501 |
| 1T15L4 | W01-095-0422 | 1440303/1521114 |
| 1T15L4 | W01-095-0484 | 1515502 |
| 1T15LUX11 | W01-M58-7315 | 1314904/276696 |
| 1T15LUX11 | W01-M58-8948 | 1363007 |
| 1T15L | W01-M58-8124 | 2517987/2073515/1402423/1314903 |
| 1T15LD5 | W01-M58-7367 | 463100 |
| 1T15LMR-3 | W01-095-0566 | 2024285/2024284 |
| 1T15LP3 | W01-358-9652 | 660251 |


|
