| Categories | Dental Handpiece Unit |
|---|---|
| Brand Name: | Finer |
| Model Number: | dsh |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 30 pieces |
| Price: | 135USD/pc |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2000pieces/per month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Carton |

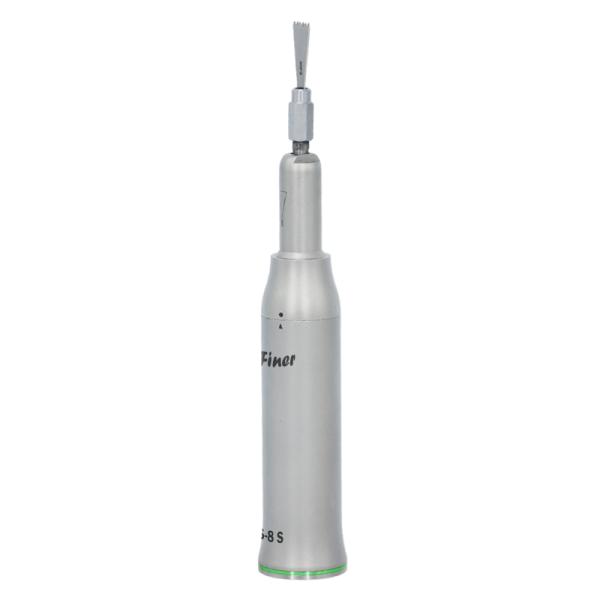

| Product name: | Dental surgical saw handpiece |
| Working system: | Implant motor |
| Max.speed: | 40,000/min |
| Strokes/min: | 12,300/min |
| Strokes: | 3° |
| Blade size: | 6mm,10mm |
| Connection: | E-type |

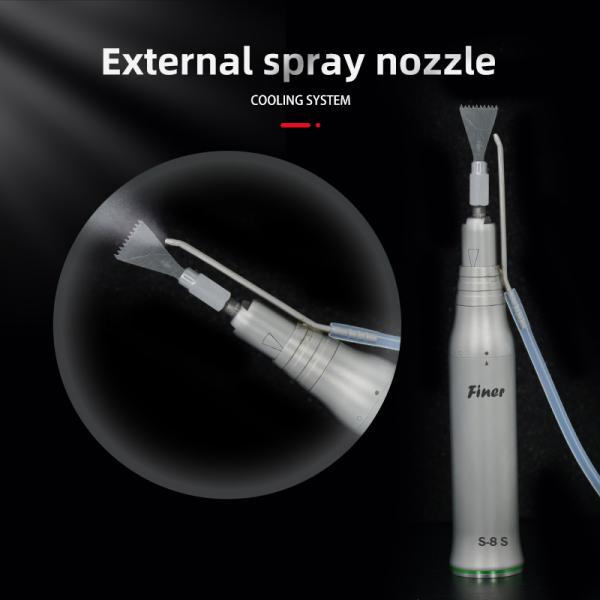

| Cooling system: | External spray nozzle |
| Company Info. |
| 佛山市沣耐医疗器械有限公司 |
| Verified Supplier |
| View Contact Details |
| Product List |
A dental horizontal swing saw handpiece is a specialized dental instrument used in oral and maxillofacial surgery for cutting and shaping bone. It is designed to perform horizontal, back-and-forth cutting motions to create precise bone incisions.
The horizontal swing saw handpiece typically consists of a handheld device with a motorized reciprocating blade that moves in a horizontal plane. This swinging motion allows for controlled and precise bone cutting, especially in areas where vertical or straight-line cutting is challenging.
Similar to other dental surgical saw handpieces, the horizontal swing saw handpiece is typically attached to a dental unit or surgical motor system for power and control. It can be used for various surgical procedures, including osteotomies (bone cuts), ridge augmentation, and bone grafting.
.
1.Adjustable Swing Angle: The handpiece may have an adjustable swing angle mechanism, allowing the operator to set the desired range of back-and-forth motion. This feature provides flexibility and adaptability for different surgical situations.
2.Variable Speed Control: Like other surgical saw handpieces, the horizontal swing saw handpiece may have adjustable speed settings to control the oscillation speed of the blade. This allows the operator to customize the cutting speed based on the specific procedure and patient needs.
3.Blade Options: The handpiece is typically compatible with different blade types and sizes, allowing for versatility in cutting various bone densities and anatomical structures.
4.Ergonomic Design: The handpiece is designed to be comfortable to hold and operate, with ergonomic grips and lightweight construction to minimize operator fatigue during lengthy procedures.
5.Water Irrigation System: Some horizontal swing saw handpieces may incorporate a water irrigation system to provide cooling and irrigation during bone cutting. This helps prevent overheating and provides a clear surgical field.
| Product Name | Parameter |
|---|---|
| Dental surgical saw handpiece | Product name: Dental horizontal swing saw handpiece Air pressure: 0.22-0.25MPa Gear ratio : 4:1 Light: No Stroles angle: 3° Speed range: Max.40,000rpm Blade size: 6mm,10mm Connection: Implant motor Worling system:Implant motor |
|
