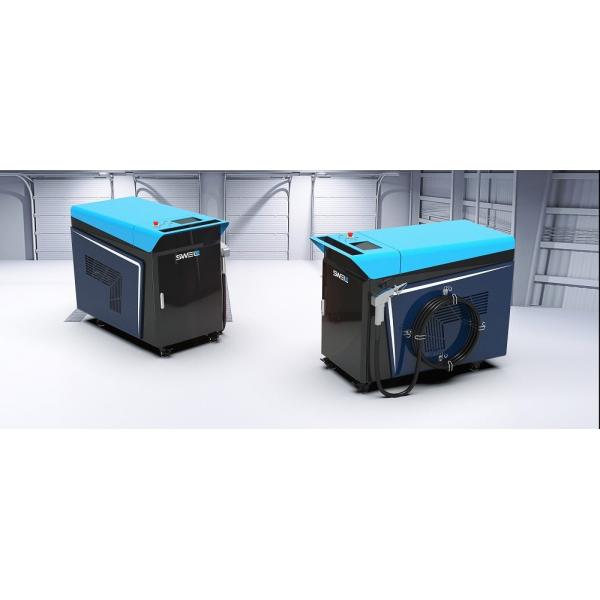

Water Cooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W 2000W 3000W

Categories Laser Welding Machinery
Brand Name: SWEL
Model Number: U1500/U2000/U3000
Place of Origin: CHN
MOQ: 1
Price: Negotiation
Payment Terms: T/T
Supply Ability: 20pcs/month
Delivery Time: 7days
Packaging Details: wooden
Model: U1500/U2000/U3000
Cooling System: Water Cooling
Laser Power: 1500W/2000W/3000W
Laser Source: Fiber Laser
Welding Material: Carbon steel, stainless steel, aluminum, copper
Voltage: 380V/220V
Weight: 290KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Cooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W 2000W 3000W

WaterCooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W/2000W/3000W


Product Description:

The handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding and does not require pressure during the operation. Its working principle is to directly irradiate a high-energy intensity laser beam onto the surface of the material, and through the interaction between the laser and the material , causing the material to melt internally, then cool and crystallize to form a weld. The handheld fiber laser welding machine fills the gap of handheld welding in the laser equipment industry and subverts the working mode of the traditional laser welding machine. The handheld fiber laser welding machine replaces the previous fixed optical path. It is flexible and convenient, and the welding distance is long. It also makes the outdoor operation of laser welding easier. It is mainly aimed at laser welding of long-distance and large workpieces to overcome the limitations of the workbench travel space. The heat-affected area during welding is small, which will not cause work deformation, blackening, or traces on the back, and the welding depth is large. The welding is firm and the melting is sufficient. It can not only realize thermal conduction welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, seal welding, seam welding, etc. Hand-held welding subverts the working mode of the traditional laser welding machine. It has the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. It can weld thin stainless steel plates, iron plates, galvanized plates and other metal materials. Perfectly replaces traditional argon arc welding, stainless steel plate, iron plate, aluminum plate and other metal materials welding.

Features:


1. Overview Advantage

AdvantageDescription
Higher Heat Dissipation EfficiencySuitable for thicker materials due to their ability to absorb and dissipate more heat, especially with higher-power laser equipment.
Reduced Heat Input and Minimal DeformationMinimizes heat input to the necessary amount, reducing metallographic changes and deformation in the heat-affected zone.
Quality of Laser Beam and Fast Welding SpeedHigh laser beam quality leading to fast welding speeds and aesthetically pleasing, firm welding seams.
Improvement in Process DefectsAddresses common welding defects like undercut, under-welding, dense pores, and cracks found in traditional welding.
Flexibility and Outdoor OperationEasy to learn and operate, offers multi-dimensional welding without positional or fixture constraints, suitable for outdoor use.

2.Parameters:

Model No.U1500U2000U3000
Laser Power Supply1500W(100% Real Power)2000W(100% Real Power)3000W(100% Real Power)
Welding Penetration Max.

Carbon steel: 2.8mm

Stainless steel: 3.6mm

Aluminum: 1.0mm

Carbon steel: 3.6mm

Stainless steel: 4.6mm

Aluminum: 2.0mm

Carbon steel: 4.8mm

Stainless steel: 6.9mm

Aluminum: 2.0mm

Operating ModelContinuous / Modulation
Power Adjustment Range10%-100%
Output Central Wavalength1080 ±10nm
Cooling MethodWater cooling
Duty Cycle100%
Welding Line Requirements<0.5mm
Rated Power
220士 20% V AC,50/60H
220士 20% V AC,50/60H380士 20% V AC,50/60Hz
Gross Weight155KG175KG195KG
Machine Dimension(L*W*H)1228*594*1080mm1228*594*1080mm

1228*594*1080mm



MaterialPower RateWelding Max. PenetrationWelding Max.Thickness
Carbon Steel1500W2.8mm4.0mm
2000W3.6mm5.0mm
3000W4.8mm8.0mm
Stainless Steel1500W3.6mm4.0mm
2000W4.6mm5.0mm
3000W6.9mm8.0mm
Pure Aluminium1500W1.0mm2.0mm
2000W2.0mm3.0mm
3000W2.0mm6.0mm
Copper‍1500W0.2mm1.0mm
2000W0.3mm1.5mm
3000W1.0mm

2.0mm


3.Dimension:

3.Welding Quality:


4.Vedio:




5.Production:

Sheet Metal Processing



Support and Services:

Technical Support and Service for Laser Cutting Machine

We provide professional and reliable technical support and service, allowing you to get the most out of your Laser Cutting Machine. Our team of experts can provide you with prompt, comprehensive and effective solutions for all your questions and concerns.

We offer a range of services, from preventive maintenance to emergency repairs, to keep your Laser Cutting Machine running smoothly and efficiently.

We also provide ongoing technical training and remote support to ensure you stay up to date on the latest developments in the field.

For any questions or assistance, please contact us and our team of experts will be happy to help.

Application:
