HUAWEI HG8546M FTTH GPON ONU Router HUAWEI Echolife Optical Network Terminal

HUAWEI GPON ONU HG8546M WiFi router 1GE 3FE USB TEL FTTH optical network terminal

The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The HG8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

Huawei GPON ONU HG8546M Product Specifications

* Dimensions(W x D x H):250 mm x 185 mm x 35 mm

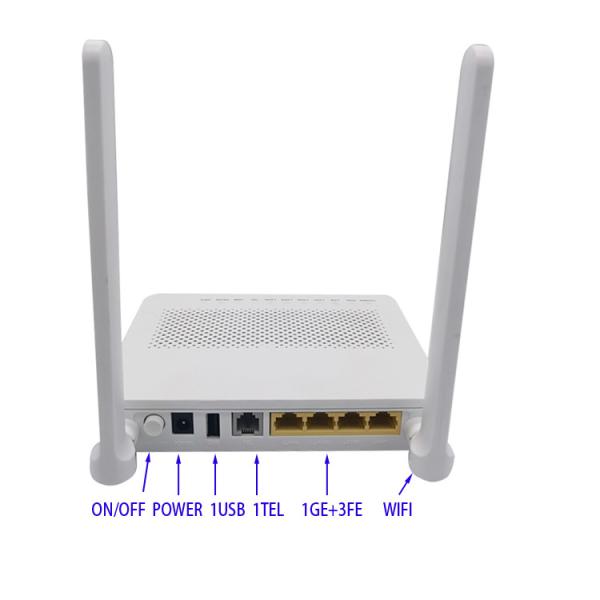

* Port:1POTS+1GE+3FE+1USB+1Wi-Fi

* Average power consumption:8 W

* Operating environment:Temperature: 0℃~+40℃;

* Humidity: 5%–95%, non-condensing

* Power supply:Adapter input: 100–240 V AC, 50–60Hz;

* Adapter output: 11–14 V DC, 1 A

* Weight:About 500g (including the power adapter)

Product Highlights

1. Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

2. Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

3. Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4. High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5. Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.

Maintenance features

* Local management using Web and remote management using TR069 and OMCI

* Optical power monitoring

* 802.1ag Ethernet OAM

* Loop-line test of POTS ports,call emulation and PPPoE dialup emulation

Green engery-saving features

* Dynamic power consumption adjustment

* With a backup battery, the guaranteed services can be selected flexibly

GPON features

* Class B+ optical module

* Security authentication mode: SN,
password or SN+password

* Upstream/downstream FEC

Routing features

* NAT function

* Internet, IPTV and VoIP services are automatically bound to ONT ports

* Virtual server, port trigger, DMZ,and DDNS

Reliability features

* Dual systems for software protection

* Type B protection and rogue ONT detection

* Lithium battery backup and backup battery monitoring

Voice features

* SIP and H.248 protocols

* Media stream and signaling stream separation

Multicast features

* IGMP V2&V3 snooping/IGMP proxy

Wi-Fi features

* 802.11b/g/n, certified by the Wi-Fi Alliance
