| Categories | Galvanized Steel Coil |
|---|---|
| Brand Name: | NADONG |
| Model Number: | 400 |
| Certification: | ISO SGS |
| Place of Origin: | China |
| MOQ: | 1 Ton |
| Price: | $400-$1000 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 ton per month |
| Delivery Time: | 15 working days |
| Packaging Details: | According to customer needs |
| Grade: | DC51D |
| Length: | 2000 3000 6000mm |
| Zinc Coating: | 30-275g/m2 |
| Standard: | ASTM, GB, JIS |
| Type: | Cold Rolled Steel Sheet |
| Spangle: | Big Medium Small Zero |
| Special Use: | High-strength Steel Plate |
| Technique: | Hot Rolled |

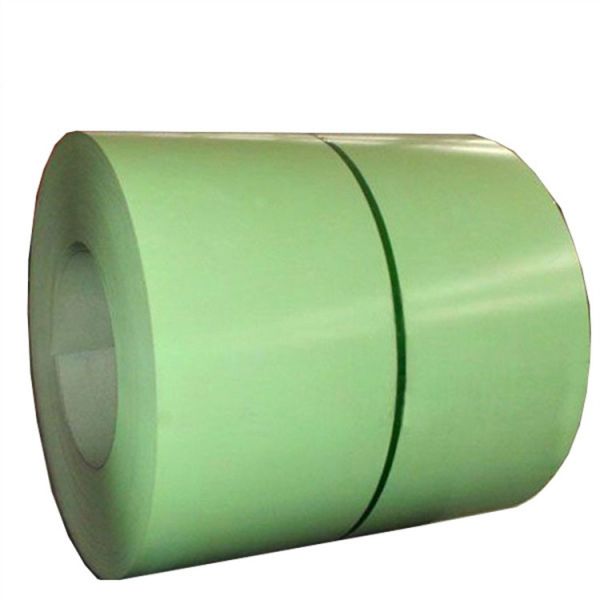

Cold Rolled PPGI Prepainted Galvanized Steel Coil With Slit Edge
Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc. We can provide hot dipped galvanized steel sheet & coil to meet your ASTM requirements with customer-driven surface finish options. |
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 or as requirement |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil or as customer requirements |
| Package | Water proof paper is inner packing,galvanized steel or coated steel
sheet is outer packing , side guard plate,then wrapped by seven
steel belt.or according to customer's requirement |
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS316L | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
Y.S (N/MM2) | T.S (N/MM2) | EL (%) | HRB | Specific Heat (J/g℃) | Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
Applications:316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment. 316Ti: Mainly used for industrial components. |
|
