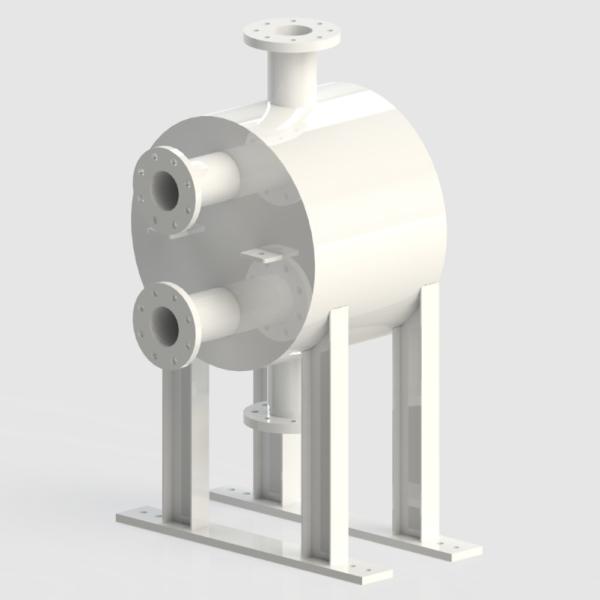

Full Welded Plate And Shell Heat Exchanger For Gas Heating And Cooling

Full Welded Plate And Shell Heat Exchanger For Gas Heating And Cooling

Plate & Shell Heat Exchanger (PSHE)

The PSHE range of heat exchangers are new generation heat exchangers, combining the best properties of the Plate & Frame and Shell & Tube heat exchangers. The PSHE provides high heat transfer rates with a high pressure and temperature operating range. They have no gaskets, are compact, low fouling and can operate at close approach temperatures.
At the heart of the PSHE is a fully welded pack of circular plates without gaskets. This plate pack is housed within a tubular shell to provide a strong compact construction. The PSHE series have a very wide operating range with capacities of up to 100 MW / units, and can operate at pressures up to 100 bar and temperatures up to 400°C. They have a low maintenance design that provides flexibility to select different material and nozzle combinations

Applications:

Steam condensers and generators
Condensate heaters and coolers
Exhaust gas recovery
LNG applications
Crude oil heaters and coolers
Gas heaters and coolers
Hydrocarbon condensers and evaporators
Product heaters and coolers
Gas heaters and coolers
Heat-recovery exchangers like feed/effluent exchangers
Overhead condensers and gas liquefiers
Thermosyphon and kettle reboilers
Reactor temperature-control heat exchangers
Cryogenic applications
Evaporators
Droplet separators
Evaporators/droplet separators (Combined)
Cascades
Desuperheaters
Oil coolers
Subcoolers
Condenser

Benefits:

No Gaskets or Brazing
High Integrity / Total Containment
Strong and Safe Construction
Protection and Resistance to Thermal and Pressure Cycling
Thermally Efficient
Compact and Low Weight
Flexible Construction
Proven, Reliable Technology
Low Fouling
Minimal Maintenance Requirement
Close Approach Temperatures

Technical Specification

Maximum Heat Transfer Area

•2 000 m²/exchanger Mechanical Design
Full vacuum to 70 bar possible
-164 to +500°C

Model	A	B	C	D	E	F	G
BPS16	240	98	250	168	2.4*N+2	DN15	DN15-DN80
BPS22	448	135	310	219	2.4*N+3	DN20	DN20-DN100
BPS46	469	174	368	269	2.4*N+4	DN40	DN25-DN200
BPS72	565	277	460	355	2.4*N+4	DN50	DN25-DN300
BPS128	600	298	694	464	2.8*N+6	DN80	DN25-DN350
BPS179	963	338	725	559	2.8*N+6	DN100	DN25-DN400
BPS647	1520	650	1250	1016	2.8*N+6	DN150	DN25-DN700
BPS1200	1828	900	1548	1372	3.2*N+6	DN300	DN25-DN1000
BPS1600	2048	1000	1838	1562	3.2*N+8	DN350	DN25-DN1200

Material
Shell	Plate
Carbon steel	AISI304
AISI 304	AISI 316L
AISI 904L	AISI 904L
AISI 904L	254 SMO
254 SMO	TI
TI	Nickle
Hastelloy	Hastelloy 254
Others	Others
