2B9-352 Goodyear Suspension Air Springs 578923206 Double Convoluted Air Bellows Actuator

Categories Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B6944
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou, China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Replace FIRESTONE: W013586944
Pressure Ability: 0.2-0.8 M PA
Air Inlet: 3/8 NPT
Top Plate Hole/Stud: 1x1/2
Bottom Plate Hole/Stud: 2x1/2
Top Plate Dia: 160 mm
Bottom Plate Dia: 160 mm
Trademark: AIRSUSTECH or Empty
Transport Package: Cartons
Specification: 24*24*24 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Natural Rubber and Steel
Position: Front and Rear
OEM: FD 200-19 504
Type: Suspension Air Springs For Truck or Machine
N.W.: 3.85 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

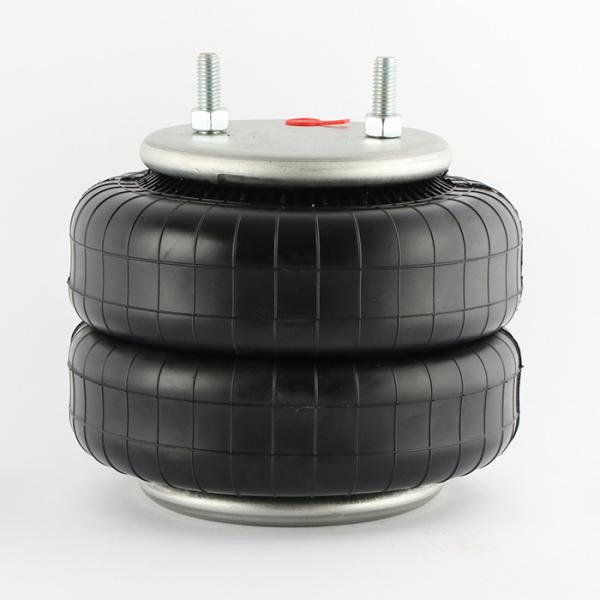

2B9-352 Goodyear Suspension Air Springs 578923206 Double Convoluted Air Bellows Actuator

2B9-352 Goodyear Suspension Air Springs 578923206 Double Convoluted Air Bellows Actuator


Sizes of AIRSUSTECH 2B6944 air spring:


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1⁄2-20UNF

Screw Center Distance of Top Cover Plate : 86 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1⁄2-20UNF

Screw Center Distance of Bottom Cover Plate : 89 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/8 NPT

Center Distance Between Nut and Air inlet: 86 mm


Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm


Rubber Bellows

Rubber Bellows Natural Diameter : 232.5 mm

Rubber Bellows Natural Height : 232 mm


Bumper block / Buffer block

Without Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


2B6944 Comparison number of other suppliers:


AIRSUSTECH Part Number: 2B6944Goodyear UPPER MOUNTING VIEW
:ASA-92-8-176
AIRSUSTECH rubber bellows 2B20F-1Goodyear Bellows NO.:578-92-3-211
Firestone:W01-358-6944Goodyear LOWER MOUNTING VIEW
: ASA-92-6-108
Firestone style:20-2Triangle: 6332/4454
Contitech:FD 220-25 454Histeer
Contitech order NO.:161337: 10307
GoodyearSuspensions Inc.
Goodyear Part NO. 2B9 266;2B9266

2B9-266

Arvin meritor
Goodyear Bellows NO. 578923208,
578-92-3-208;578 92 3 208
: 200118
Watson&ChalinL eland
ASO115G: Sc2124
Tuthill technology : 6390Goodyear Trimmed: 2B9253/
Firestone : W01-M58-6944,Goodyear Trimmed: 2B9-253 /
Firestone : W01 M58 6944,Goodyear Trimmed: 2B9 253
Firestone : W01M586944Goodyear Flexmember: 578-92-3-206 /
Firestone :20-2,20 2Goodyear Flexmember: 578923206 /
Goodyear Flexmember: 578 92 3 206

CONTI
64554
FD 200-25 454
FIRESTONE
W013586944
HISTEER
10307
TRIANGLE
4454
TRP
AS69440


Granning 6390, Granning 7639, Histeer 10307, Loadguard SC2124, Suspensions, Inc. 200118, Taurus 6332, Triangle AS-4454, TRP AS69440, Watson & Chalin AS-0115 -G

Continental ContiTech FD 200-25 454, ContiTech Order # 64554, Arvin Meritor 200118, Automann SP2B12RA-6944, Firestone No. W01-358-6944, Firestone Style 20-2, FleetPride AS6944, Goodyear 2B9-252, Goodyear 2B9 -266, Goodyear Flex No. 578923206, Goodyear Flex No. 578923208,


Anther similar kind goodyear :2B9-607

Goodyear UPPER MOUNTING VIEW :ASA-92-8-270
Goodyear lower MOUNTING VIEW : ASA-92-6-010

Specifications:


Roof hole/stud: 2
Floor hole / stud: 2
Roof diameter: 6.4
Base plate diameter: 6.4
Collapsed height: 3.8


Package size and weight:


2 pieces of AIRSUSTECH Part Number: 2B6944 pack in one carton.

Net WeightGross WeightLength
(cm)
Width
(cm)
Height
(cm)
Measurememt
(cbm)
3.859.92424240.014

The drawing of 2B6944 air spring:
