| Categories | SFP+ Transceiver Module |
|---|---|
| Brand Name: | Trixon |
| Model Number: | TPB-TG60-23DIR |
| Certification: | UL,TUV,FCC,CE,ROHS |
| Place of Origin: | CHINA |
| MOQ: | Negotiable |
| Payment Terms: | L/C D/P |
| Supply Ability: | Negotiable |
| Delivery Time: | Negotiable |
| Packaging Details: | Negotiable |
| Distance: | 60km |
| Wavelength: | ,TX1310nm RX1270nm |
| Temperature Range: | -40~85°C |
| DDM/DOM: | Yes |
| Connector Type: | LC |
| Data Rate: | 10Gbps |
| Compliant Code: | MSA SFF-8472 |
| Fiber Type: | Single-Mode |
| Price: | Negotiable |
| Company Info. |
| Sichuan Trixon Communication Technology Corp.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

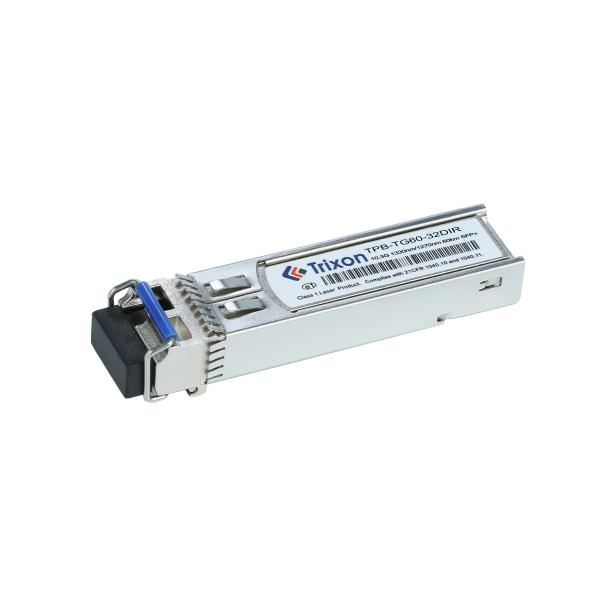

TPB-TG60-32DIR10G,TX1310nm RX1270nm bidi 60km SFF-8472 Compliant SFP Transceiver Module with DDM/DOM Yes
The SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module designed to interface with 10Gbps networking devices. It is compliant with the MSA SFF-8472 standard, and can be used with Single-Mode fibers. The module is equipped with an LC Connector, and is capable of supporting a data rate of up to 10Gbps. It is designed to work with a wide variety of networking equipment, and provides a reliable and cost-effective solution for high-speed networking applications.
| Parameter | Specification |
|---|---|
| Temperature Range | -40~85°C |
| Wavelength | TX1310nm RX1270nm |
| Compliant Code | MSA SFF-8472 |
| Data Rate | 10Gbps |
| Cable Type | Duplex |
| Fiber Type | Single-Mode |
| Connector Type | LC |
| Product Name | SFP+ Transceiver Module |
| Distance | 60km |
| DDM/DOM | Yes |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1320 | 1330 | 1340 | nm |
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note6 | Pout | +1 | - | +6 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1280 | nm |
| Receiver Sensitivity*note7 | SEN | - | - | -20 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -18 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Industrial automation: Industrial-grade SFP transceiver modules are suitable for connecting controllers, sensors and equipment in industrial automation systems, providing reliable and stable high-speed, long-distance data transmission.
Internet of Things (IoT): Industrial-grade modules are used in industrial IoT applications to transmit sensor data, monitor equipment status, etc., and have high-speed, long-distance communication capabilities and anti-interference and anti-vibration characteristics.
Fieldbus network: Industrial-grade transceiver modules connect various industrial equipment and controllers, such as Profibus, Modbus, DeviceNet, etc., to provide stable data transmission and adapt to on-site control and data collection needs.
Power and energy industry: Industrial-grade transceiver modules provide reliable data transmission in remote monitoring and communication applications in the power and energy industry, with anti-interference and anti-electromagnetic interference capabilities.
Railway and transportation systems: Industrial-grade modules are suitable for high-speed train communication, signal transmission and monitoring systems in railway and transportation systems, adapt to vibration and temperature changes, and meet industrial-grade standards and requirements.
Transmission distance: Based on your requirements, we can provide different transmission distance options to suit your specific scene needs.
Wavelength: At your request, we can adjust the wavelength to match your fiber optic network equipment and system requirements.
Power budget: Based on your requirements, we can make power budget adjustments to ensure the signal quality and performance in the transmission link meets your expectations.
Digital diagnostic monitoring: If you require digital diagnostic monitoring capabilities, we can provide corresponding customization options so that you can monitor and manage optical modules.
Connector type: According to your device interface requirements, we can provide different types of connectors, such as LC, SC, ST, etc.
Protocol support: We can provide you with support for specific protocols based on your needs, such as Ethernet, Fiber Channel, etc.
SFP+ Transceiver Module technical support and service includes:
The SFP+ Transceiver Module is packaged in an anti-static bag and shipped in a static-resistant box. It is then placed into a larger cardboard box for shipping. The box is labeled with the product name, a barcode, and the shipping information.
The box is then shipped via courier such as UPS, FedEx, or DHL. The shipping process is tracked using the tracking number provided on the box.
Reference Datasheet file code:DS100037 (10G BIDI)
|
