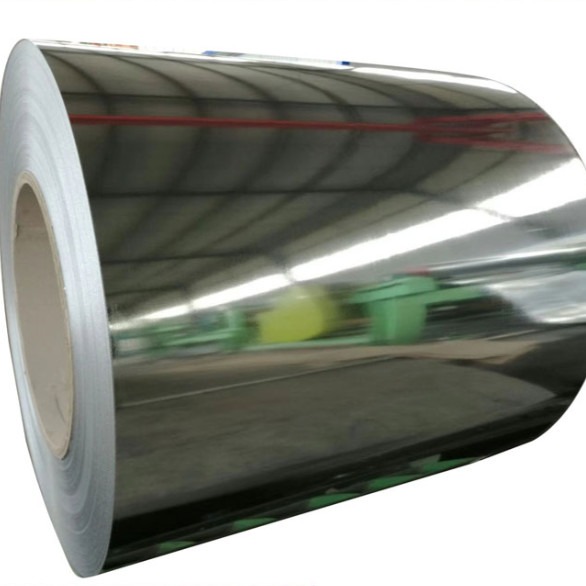

| Categories | Galvanized Steel Coil |
|---|---|
| Brand Name: | DECHO |
| Model Number: | bright zero spangle galvanized steel |
| Certification: | Mill Test Certificate |
| Place of Origin: | China |
| MOQ: | 16 MT |
| Price: | 750~850 USD/MT |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 700 MT/DAY |
| Delivery Time: | 30-45 DAYS |
| Packaging Details: | Standard Exporting Package with Wooden Pallet |
| Steel Grade: | G450/G550 High Strength Structural Steel Grade |
| Export to: | Brazil |
| Usage: | Light Steel Villa |
| Zinc coating: | 275g |
| Dimension: | 0.95×188mm |
| Surface Treatment: | Unoiled, Skin passed, Zero spangle |
| Coil weight: | 3-5 tons |
| Company Info. |
| Shandong Decho Building Materials Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Standard | JIS G3302 / ASTM A653M / EN10327 / DIN17162 |
| Grade | SGSS/SGCD1/SGCD2/SGCD3/SGC340,400,440,490,570/ CS TypeA,B,C/FS TypeA/FS TypeB/DDS TypeA,C/EDDS/DX51D+Z |
| Thickness | 0.12-4.5 mm |
| Width | Coil: 600mm-1500mm Strip:10mm-595mm Sheet: 600mm,914mm, 1000mm,1200mm,1220mm,1250mm,1500mm |
| Coil ID | 508mm, 610mm |
| Color weight | 3-8 tons |
| Packing | Standard seaworthy export packing: waterproof paper+steel trip |
| packed+wooden case seaworthy package | |
| Delivery | Within 10-15 days |
| Price | FOB,CFR,CIF |
| Payment terms | TT or L/C |
| Application | Galvanized steel is available in a variety of forms, such as galvanized pipes and galvanized wire. It is used everywhere. |
| Galvanized steel frames are used to build houses. | |
| Car parts are made out of galvanized steel, for example, the body of trucks and buses. | |
| Galvanized metal has found its way into several household appliances such as washing machines, air conditioning housings, hair dryers, etc. | |
| It is used in high tension electrical towers, protective gears, highway signs etc. | |
| It is also used to make wrought iron gates and other items. | |
| Also used to make metal pails. |
| Structural Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30,33,36,40 | 0.25 | 0.9 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| 36T2,45-80 | 0.25 | 1.35 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| 45T2 | .02- 0.08 | .30- 1.0 | .03- .07 | 0.025 | .02- .08 | 0.6 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | .01- .03 |
| HSLA Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45C1 | 0.22 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 45C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 50C1 | 0.23 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 50C2 & 55C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 55C1 | 0.25 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 60C1 & 65C1 | 0.26 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 60C2 & 65C2 | 0.15 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 70C1 | 0.26 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 | |||
| 70C2 | 0.15 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 |
| Common Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSA | 0.1 | 0.6 | 0.03 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| CSB | 0.02-.15 | 0.6 | 0.03 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| CSC | 0.08 | 0.6 | 0.1 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| BH | 0.012 | 1.5 | 0.12 | 0.03 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| FSA | 0.1 | 0.5 | 0.02 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| FSB | 0.02-.15 | 0.5 | 0.02 | 0.03 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| DDS | 0.06 | 0.5 | 0.02 | 0.025 | .01 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | ||
| EDDS | 0.02 | 0.4 | 0.02 | 0.02 | .01* | 0.2 | 0.2 | 0.15 | 0.06 | 0.1 | 0.1 | 0.15 |





|
