Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint

Categories Color Coated Steel Coil
Brand Name: Decho Building Materials
Model Number: S320GD PRE-PAINTED GAVALUME STEEL
Certification: MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV
Place of Origin: China
MOQ: 25 TONS
Price: USD 700~1050
Payment Terms: L/C, T/T
Supply Ability: 500 tons per day
Delivery Time: 30~45days

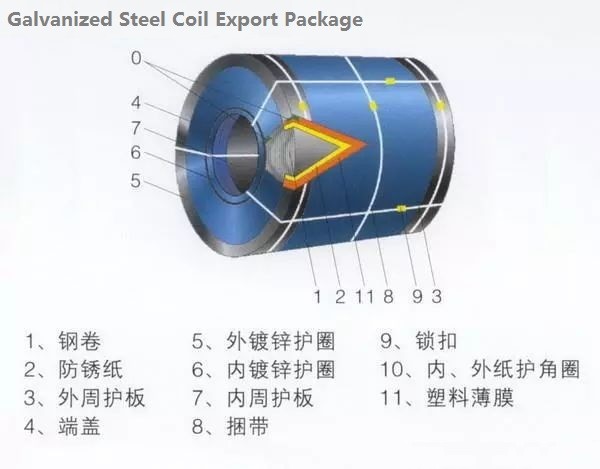

Packaging Details: Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet
Color: RED
thickness: 0.5mm~1.2mm
Z-coating: AZ50~180g/㎡
steel grade: S320GD
STEEL GRADE: DX51D
PAINT SYSTEM: SMP
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pre-Painted Galvalume Steel AZ120 PPGL Steel Coil SMP DX51D For Metal Wall Panels 20 Years Warranty anti scratch paint

Prepainted Galvalumesteel AZ120 PPGL Steel Coil SMP DX51D For Metal wall panels
Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.
Classification

According to the substrate: cold rolled substrate, hot-dip galvanized substrate, electro-galvanized substrate, aluminum zinc plated substrate, etc.

According to the type of coating: polyester, silicone-modified polyester, vinylidene fluoride (fluorocarbon), plastisol.

According to the color: it can be divided into many kinds according to the user's requirements, such as white-gray, scarlet, sea-orchid, porcelain-orchid, withered-yellow, ivory-white, deep-bean-green, sky-orchid, ivory-white and so on.

According to the surface state: coated board, embossed board, printed board, etc.

Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550


Paint Brand:

Valpar, AkzoNobel, PPG, Beckers


Paint Coating Patterns:

Gloss Colors - RAL Code


Structural GradesCMnPSAlSiCuNiCrMoVCbTiN
30,33,36,400.250.90.0350.040.20.20.150.060.0080.0080.025
36T2,45-800.251.350.0350.040.20.20.150.060.0080.0080.025
45T2.02- 0.08.30- 1.0.03- .070.025.02- .080.60.20.20.150.060.0080.0080.025.01- .03

HSLA GradesCMnPSAlSiCuNiCrMoVCbTiN
45C10.221.350.040.040.20.20.150.060.0050.0050.005
45C20.151.350.040.040.20.20.150.060.0050.0050.005
50C10.231.350.040.040.20.20.150.060.0050.0050.005
50C2 & 55C20.151.350.040.040.20.20.150.060.0050.0050.005
55C10.251.350.040.040.20.20.150.060.0050.0050.005
60C1 & 65C10.261.50.040.040.20.20.150.060.0050.0050.005
60C2 & 65C20.151.50.040.040.20.20.150.060.0050.0050.005
70C10.261.650.040.040.20.20.150.160.0050.0050.005
70C20.151.650.040.040.20.20.150.160.0050.0050.005

Common GradesCMnPSAlSiCuNiCrMoVCbTiN
CSA0.10.60.030.0350.20.20.150.060.0080.0080.025
CSB0.02-.150.60.030.0350.20.20.150.060.0080.0080.025
CSC0.080.60.10.0350.20.20.150.060.0080.0080.025
BH0.0121.50.120.030.20.20.150.060.0080.0080.025
FSA0.10.50.020.0350.20.20.150.060.0080.0080.025
FSB0.02-.150.50.020.030.20.20.150.060.0080.0080.025
DDS0.060.50.020.025.010.20.20.150.060.0080.0080.025
EDDS0.020.40.020.02.01*0.20.20.150.060.10.10.15
