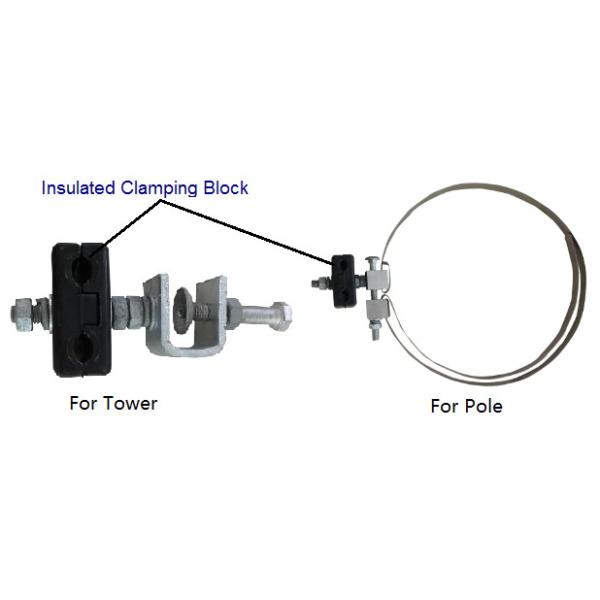

DA-ADSS-LDC Series Lead Down Clamp
Dawnergy Telecom’s DA-ADSS-LDC lead down clamp is used to fasten cables on the pole or on the tower to protect them from shake and abrasion.
Features
Specifications
| Item | Parameter | ||
| Main Material | Tower Lead Down Clamp | Galvanized steel | |
| Pole Lead Down Clamp | Stainless steel 304 | ||
| C Clamp Dimensions (mm) (W)*(T) | 40*5 | ||
| Insulated Clamping Block | Yes | ||
| Available Cable Diameter (mm) | ≤14.3 or 14.4~17 | ||
| Pole Mount Steel Tape | Material | Stainless steel 304 | |
| Dimension (W×T×L) (mm) | 20mm (W) × 0.5mm (T) × 1200mm (L) or 20mm (W) × 0.5mm (T) × 1500mm (L) | ||
| Model | Description | ||
| DA-ADSS-LDC-P350-D14-L1200 | Used for pole and pole diameter ≤350mm; Available ADSS cable diameter ≤14.3mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1200 (L) | ||
| DA-ADSS-LDC-P350-D17-L1200 | Used for pole and pole diameter ≤350mm; Available ADSS cable diameter range 14.4~17mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1200 (L) | ||
| DA-ADSS-LDC-P450-D14-L1500 | Used for pole and pole diameter ≤450mm; Available ADSS cable diameter ≤14.3mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1500 (L) | ||
| DA-ADSS-LDC-P450-D17-L1500 | Used for pole and pole diameter ≤450mm; Available ADSS cable diameter range 14.4~17mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1500 (L) | ||
| DA-ADSS-LDC-T20-D14 | Used for tower; Available ADSS cable diameter ≤14.3mm; Clamp material: galvanized steel, dimensions (mm): 40 (W) × 5 (T) | ||
| DA-ADSS-LDC-T20-D17 | Used for tower; Available ADSS cable diameter range 14.4~17mm; Clamp material: galvanized steel, dimensions (mm): 40 (W) × 5 (T) | ||
Applications

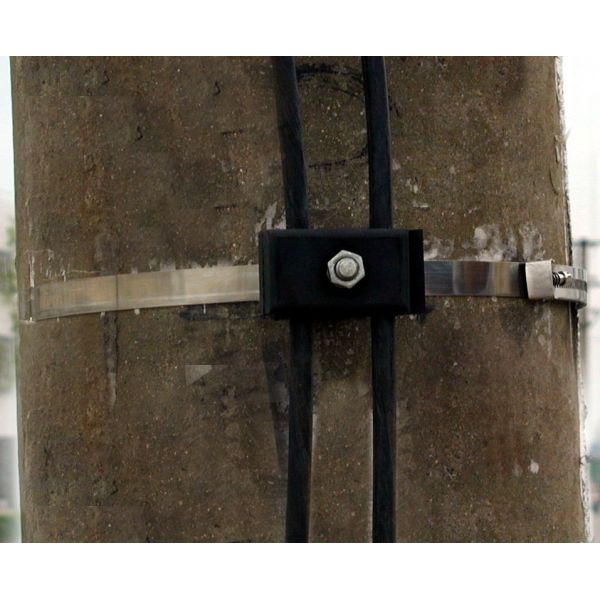

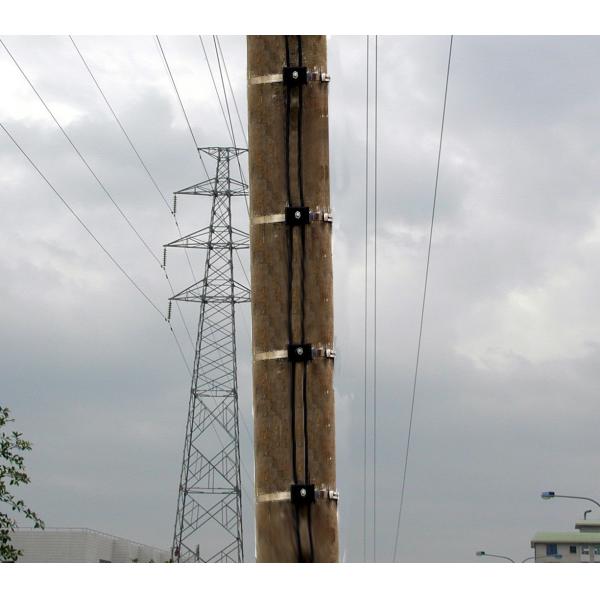

Pole mounted

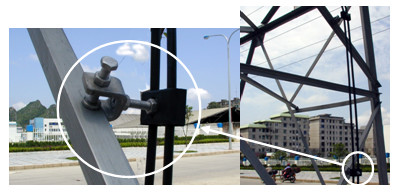

Tower mounted
|
