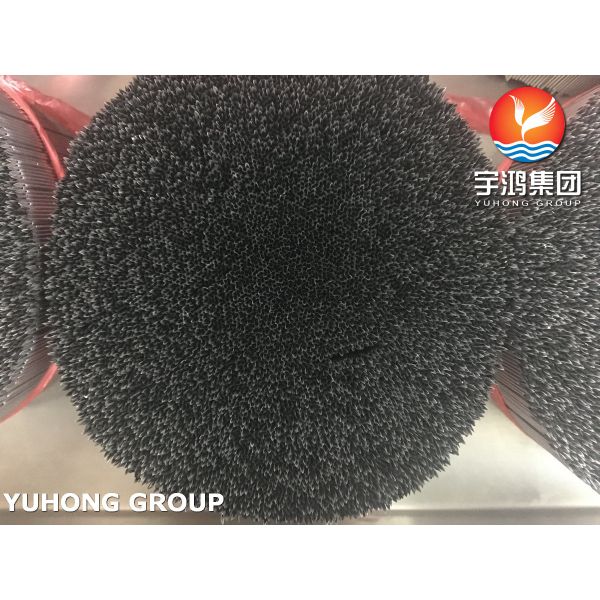

Medical Grade 304 316L Needles Precise Stainless Steel Capillary Tubing

Medical Grade 304 316L Needles , Precise Stainless Steel Capillary Tubing for Medical Device


Stainless steel capillary tube needle tubing is a type of specialized tubing used in various medical applications, such as hypodermic needles, biopsy devices, and catheters. Here are some key points to know:

1. Material:

   • Stainless steel is the primary material used for capillary needle tubing due to its excellent properties, including corrosion resistance, durability, and biocompatibility.
   • Common stainless steel grades used for capillary needle tubing include 304, 316, and 316L.
   • These grades offer high resistance to corrosion, making them suitable for medical applications that involve contact with bodily fluids or harsh environments.

2. Size and Dimensions:

   • Capillary needle tubing typically has small outer diameters and thin walls to accommodate its numerous medical applications.
   • The outer diameter (OD) can range from a fraction of a millimeter (e.g., 0.2 mm) to several millimeters, depending on the specific application.
   • The inner diameter (ID) of the tubing is smaller, enabling the flow of fluids or insertion of medical instruments.

3. Precision and Tolerance:

   • Capillary needle tubing requires high precision and tight tolerances to meet the stringent requirements of medical devices.
   • The production of capillary needle tubing involves advanced manufacturing techniques, such as cold drawing, to achieve consistent dimensions and excellent surface finish.

4. Biocompatibility and Sterilization:

   • Stainless steel capillary needle tubing is known for its excellent biocompatibility, meaning it is well-tolerated by the human body and does not cause adverse reactions.
   • The tubing can be sterilized through various methods, such as autoclaving, ethylene oxide (ETO) sterilization, or gamma irradiation, ensuring its suitability for medical use.

Stainless Steel Capillary Tube Chemical Composition

Stainless Steel Needle Tube are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Needle Tube is manufactured according to current standards ASTM, and ASME. If required for special projects we can also supply large diameter Needle Tube.


Documents
To the patrons' documents provided are raw material test report, heat treatment chart, quality assurance plan, material traceability report, MTC as per EN 10204/3.1B, radiography test report etc.


Applications
High precision capillary tube is used in many Instrumentation systems which include the use of:
1. HPLC tubing
2. UPLC tubing
3. Coriolis tubing
4. Remote seal pressure transmitter tubing
5. Sheath tubing
6. Hydraulic tubing
7. Medical Equipments/Services
8. Industrial Components
