| Categories | Hybrid Solar System |
|---|---|
| Brand Name: | Goodwe |
| Model Number: | GW10K-BT |
| Certification: | SAA / CE / ROHS / ISO9001 / CCC |
| Place of Origin: | China |
| MOQ: | 10 units |
| Price: | negotiable |
| Supply Ability: | 1000units/week |
| Packaging Details: | carton package |
| Type: | DC/AC Inverters |
| Phase: | single Phase |
| Inverter Efficiency: | 98.3% |
| Input Voltage: | 180-1500V |
| Output Frequency: | 50/60Hz |
| Protection degree: | IP65 |
| Operating Altitude: | 4000(>3000 derating) |
| Operation Temperature Range: | -30~60℃ |
| User Interface: | LED, Bluetooth+APP |
| PID recovery: | optional |
| Company Info. |
| PVkingdom (Chongqing) New Energy Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

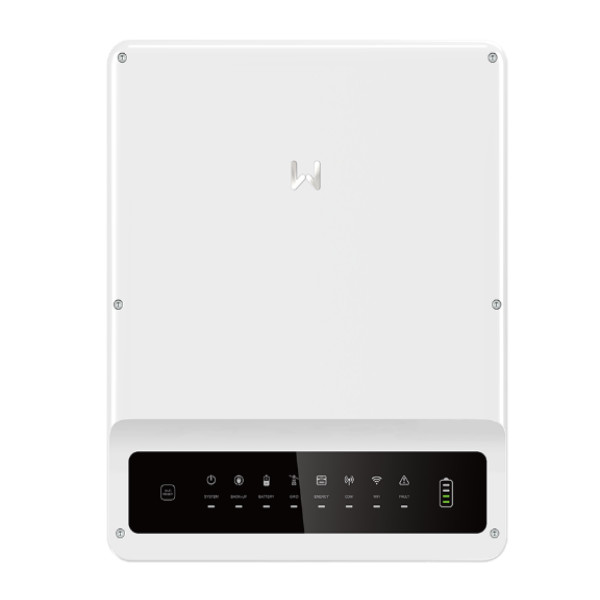

Goodwe BT Series GW10K-BT Hybrid Solar Inverter Goodwe Hybrid Inverter 10kW three phase hybrid inverter AC-coupled
| Battery Input Data | ||||
| Battery Type | Li-Ion | Li-Ion | Li-Ion | Li-Ion |
| Nominal Battery Voltage (V) | 500 | 500 | 500 | 500 |
| Battery Voltage Range (V) | 180 ~ 600 | 180 ~ 600 | 180 ~ 600 | 180 ~ 600 |
| Start-up Voltage (V) | 180 | 180 | 180 | 180 |
| Number of Battery Input | 1 | 1 | 1 | 1 |
| Max. Continuous Charging Current (A) | 25 | 25 | 25 | 25 |
| Max. Continuous Discharging Current (A) | 25 | 25 | 25 | 25 |
| Max. Charging Power (W) | 5000 | 6000 | 8000 | 10000 |
| Max. Discharging Power (W) | 5000 | 6000 | 8000 | 10000 |
| AC Output Data (On-grid) | ||||
| Nominal Output Power (W) | 5000 | 6000 | 8000 | 10000 |
| Nominal Apparent Power Output to Utility Grid (VA) | 5000 | 6000 | 8000 | 10000 |
| Max. Apparent Power Output to Utility Grid (VA)*1*5 | 5500 | 6600 | 8800 | 11000 |
| Max. Apparent Power from Utility Grid (VA) | 10000 | 12000 | 15000 | 15000 |
| Output Voltage Range (V) | 0 ~ 300 | 0 ~ 300 | 0 ~ 300 | 0 ~ 300 |
| Nominal Output Voltage (V) | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| AC Grid Frequency Range (Hz) | 45 ~ 55 | 45 ~ 55 | 45 ~ 55 | 45 ~ 55 |
| Max. AC Current Output to Utility Grid (A) | 8.5 | 10.5 | 13.5 | 16.5 |
| Max. AC Current From Utility Grid (A) | 15.2 | 18.2 | 22.7 | 22.7 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |||
| Max. Total Harmonic Distortion | <3% | <3% | <3% | <3% |
| AC Output Data (Back-up) | ||||
| Back-up Nominal Apparent Power (VA) | 5000 | 6000 | 8000 | 10000 |
| Max. Output Apparent Power without Grid (VA)*2 | 5000 (10000@60sec) | 6000 (12000@60sec) | 8000 (15000@60sec) | 10000 (15000@60sec) |
| Max. Output Apparent Power with Grid (VA) | 5000 | 6000 | 8000 | 10000 |
| Max. Output Current (A) | 8.5 | 10.5 | 13.5 | 16.5 |
| Nominal Output Voltage (V) | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE | 400 / 380, 3L / N / PE |
| Nominal Output Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Output THDv (@Linear Load) | <3% | <3% | <3% | <3% |
| Efficiency | ||||
| Max. Efficiency | 97.6% | 97.6% | 97.6% | 97.6% |
| European Efficiency | 97.2% | 97.2% | 97.5% | 97.5% |
| Max. Battery to AC Efficiency | 97.6% | 97.6% | 97.6% | 97.6% |
| Protection | ||||
| PV Insulation Resistance Detection | Integrated | Integrated | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated | Integrated | Integrated |
| Battery Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overcurrent Protection | Integrated | Integrated | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated | Integrated | Integrated |
| General Data | ||||
| Operating Temperature Range (°C) | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Max. Operating Altitude (m) | 4000 | 4000 | 4000 | 4000 |
| Cooling Method | Natural Convection | Natural Convection | Natural Convection | Natural Convection |
| User Interface | LED, APP | LED, APP | LED, APP | LED, APP |
| Communication with BMS*3 | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| Communication with Meter | RS485 | RS485 | RS485 | RS485 |
| Communication with Portal | WiFi, LAN | WiFi, LAN | WiFi, LAN | WiFi, LAN |
| Weight (kg) | 21 | 21 | 21 | 21 |
| Dimension (W × H × D mm) | 415 × 516 × 180 | 415 × 516 × 180 | 415 × 516 × 180 | 415 × 516 × 180 |
| Topology | Non-isolated | Non-isolated | Non-isolated | Non-isolated |
| Self-consumption at Night (W)*4 | <15 | <15 | <15 | <15 |
| Ingress Protection Rating | IP66 | IP66 | IP66 | IP66 |
| Mounting Method | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
|
