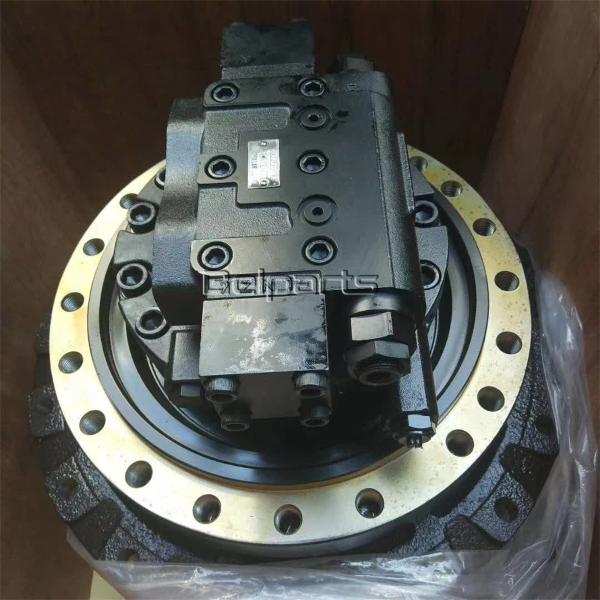

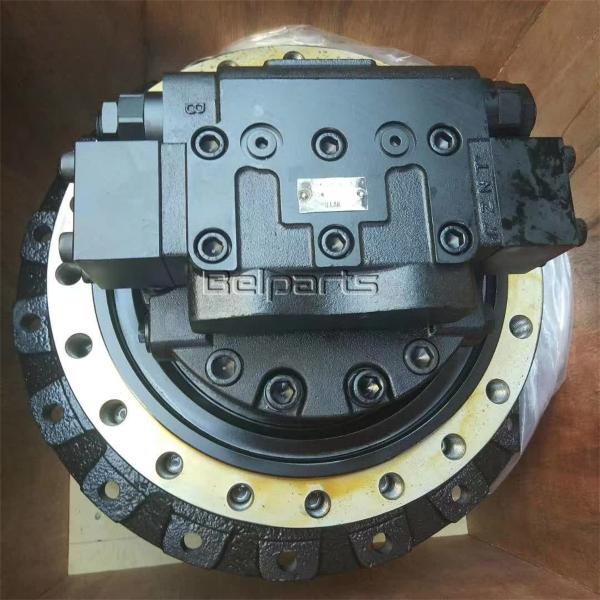

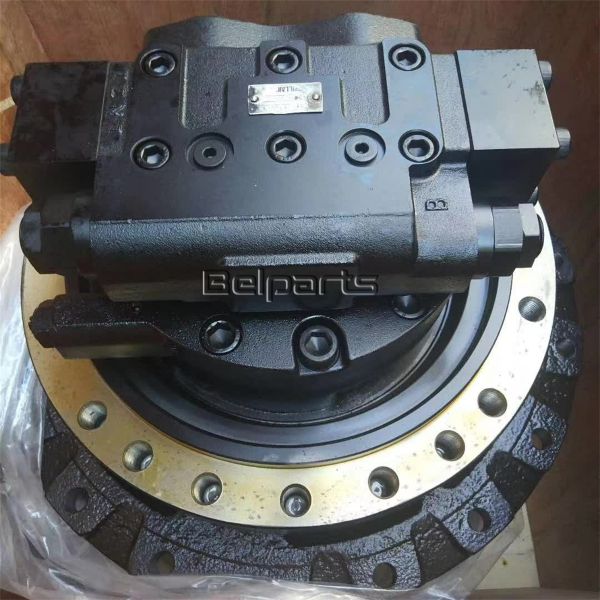

Belparts Excavator travel motor assy E325 E329D final drive assy
2042674 199-4521 227-6138 227-6116 267-6796
Appliion:Excavator machine
Part name:travel motor
Model: E325 E329D
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 2042674 199-4521 227-6138 227-6116 267-6796 |
| Model | E325 E329D |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| Part No | Part Name | Price request |

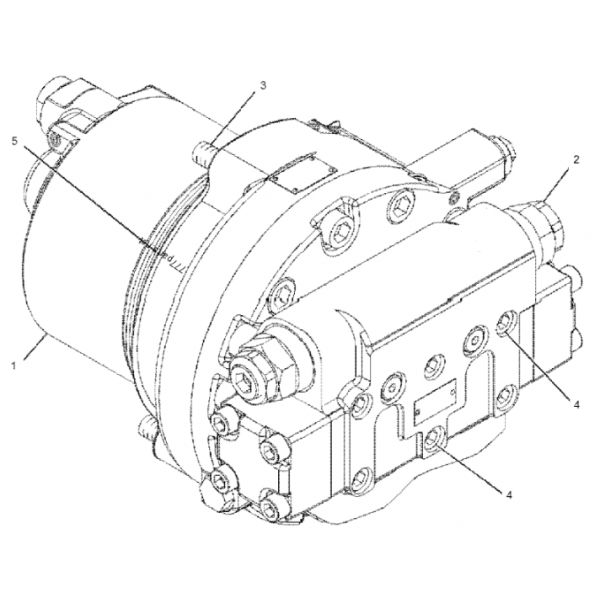

| 2042674 | MOTOR & MTG GROUP-TRAVEL |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 2095894 | SHAFT | 1 | |
| 2 | 0874743 | STOPPER | 2 | |
| 3 | 0941399 | RING - RETAINING | 1 | |
| 4 | 7Y4212 | BEARING | 1 | |
| 5 | 0874757 | PISTON | 2 | |
| 5A | 1425515 | RING-BACKUP | 2 | |
| 6 | 1076969 | BODY | 1 | |
| 7 | 1225114 | GUIDE - BALL | 1 | |
| 8 | 2095909 | PLATE (CAM) | 1 | |
| 9 | 1475860 | PISTON AS | 1 | |
| 10 | 2344629 | BARREL AS | 1 | |
| 11 | 1076954 | PLATE (FRICTION) | 4 | |
| 12 | 1076955 | PLATE (SEPARATOR) | 5 | |
| 13 | 0961523 | GUIDE - PISTON | 1 | |
| 14 | 7Y4213 | PISTON - BRAKE | 1 | |
| 15 | 7Y4202 | HEAD | 1 | |
| 16 | 8T4944 | BOLT - SOCKET HEAD (M16 X X2 X 40 MM) | 10 | |
| 17 | 0961521 | SHIM (1.0mm THICK) | 1 | |
| 18 | 0963785 | SHIM (1.2mm THICK) | 1 | |
| 19 | 0963786 | SHIM (1.4mm THICK) | 1 | |
| 20 | 0963787 | SHIM (1.6mm THICK) | 1 | |
| 21 | 0961522 | SHIM (2.0mm THICK) | 1 | |
| 22 | 0963788 | SHIM (1.8mm THICK) | 1 | |
| 23 | 0965916 | SHEET | 2 | |
| 24 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 2 | |
| 25 | 0951572 | SEAL - O-RING (4.80 MM ID) | 2 | |
| 26 | 0965919 | RING (5.00MM ID) | 2 | |
| 27 | 0965915 | RETAINER | 2 | |
| 28 | 0964003 | BEARING, NEEDLE | 1 | |
| 7Y4234 | RACE (NEEDLE ROLLER) | 1 | ||
| 29 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 1 | |
| 30 | 0874742 | VALVE | 1 | |
| 31 | 0961519 | SHEET | 1 | |
| 32 | 0957380 | SPRING | 1 | |
| 33 | 0957382 | RETAINER | 1 | |
| 34 | 0941875 | PIN, ROLLER | 1 | |
| 35 | 0957378 | SPRING, DISK | 1 | |
| 36 | 0941882 | PLUG, TAPERED | 10 | |
| 37 | 0951575 | SEAL - O-RING (7.80 MM ID) | 3 | |
| 38 | 0964378 | RING (BACK UP) | 1 | |
| 39 | 0964377 | SEAL - O-RING (190.0 MM ID) | 2 | |
| 40 | 0941882 | PLUG, TAPERED | 1 | |
| 41 | 0957384 | SEAL - O-RING (160.0 MM ID) | 1 | |
| 42 | 0957383 | SEAL-O-RING (ID=174.00mm) | 1 | |
| 43 | 0957386 | RING (175.25MM ID) | 1 | |
| 44 | 0957387 | RING, BACK-UP | 1 | |
| 45 | 0951685 | SEAL - O-RING (179.3 MM ID) | 1 | |
| 46 | 0964389 | SPRING | 9 | |
| 47 | 7Y4215 | SPACER | 1 | |
| 48 | 0951586 | SEAL - O-RING (19.80 MM ID) | 2 | |
| 49 | 7Y4217 | RING (20.0MM ID) | 2 | |
| 50 | 0964376 | SEAL (LIP TYPE) | 1 | |
| 51 | 1232008 | KEY | 2 | |
| 52 | 1211558 | PIN | 2 | |
| 53 | 0874786 | ADAPTER | 1 | |
| 54 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 | |
| 55 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 1 | |
| 56 | 0951700 | SEAL - O-RING (34.40 MM ID) | 2 | |
| 57 | 7Y4224 | ORIFICE | 2 | |
| 58 | 0963978 | SPRING | 1 | |
| 59 | 7Y4216 | SPOOL | 1 | |
| 60 | 2M9780 | SEAL--TO CONNECTOR PUMP OUTLET | 1 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 7Y4222 | SEAL KIT (J-CONSISTS OF PARTS MARKED J) | 1 | ||
| USE AS REQUIRED | ||||
| NOT REQUIRED FOR OPTIONAL BODY DESIGN | ||||
| KIT MARKED J SERVICES PART(S) MARKED J | ||||
| METRIC PART |
MIAN PRODUCTS We can supply excavator spare parts ( various brands )such as: Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller, wire harness, boom/ arm / bucket cylinder, throttle motor, pedal valve, pilot valve, pusher, solenoid valve and so on.
1. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
2. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24
hours; if not in stock , we will inform you before placing the
order.
|
