| Categories | Stainless Steel Bar |
|---|---|
| Brand Name: | DELTA |
| Model Number: | 201 304 316L 321 309S 310S 2205 17-4PH 2507 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 500 kgs |
| Price: | 2400 - 3500 USD/Ton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20Ton per week |
| Delivery Time: | 5 - 12 days based on the quantity |
| Packaging Details: | standard packing for export |
| Shape: | Angle Bar / channel bar |
| Standard: | ASTM EN GB JIS |
| Grade: | 201 304 316L 309S 310S 321 2205 2507.etc |
| Application: | Construction,Industry,surgical tools,seawater equipment.,kitchenware |
| Length: | Customers' Requirements,5.8m,6m,2m-6m,or as required |
| Size: | custom as request |
| Packing: | Standard Seaworthy Package,In wooden cases(for FCL/ LCL shipment) |
| Service: | Cutting, surface finishing |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

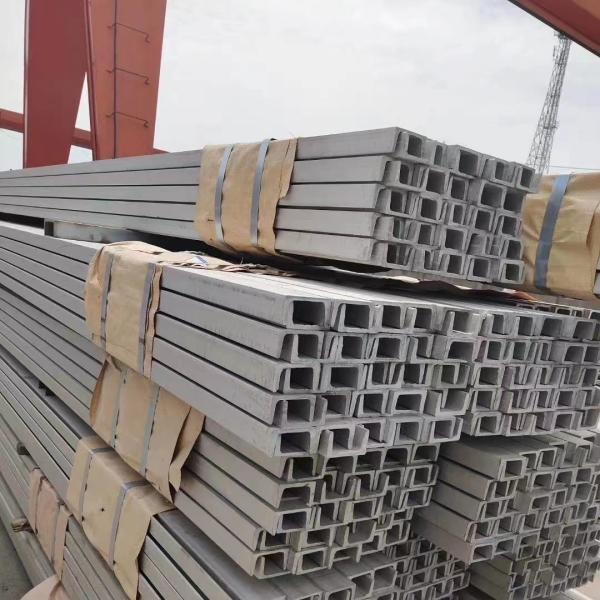

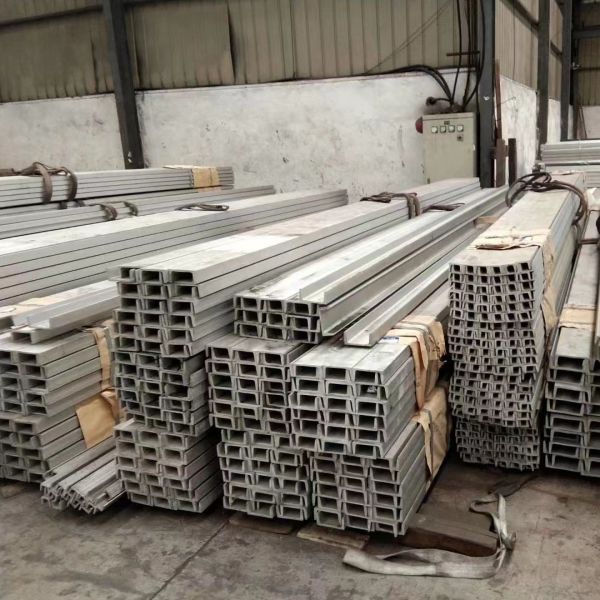

Stainless Steel U Beam Grade 304 SS Beams Width 40 - 200mm Stainless Steel Channels
| Products | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
| Grade | 201 304 304L 310S 316L 2205.etc |
| Finishing | Hot rolled |
| Diameter | 30*30*3- 120*120*12 |
| Length | 6m or custom cutting as request |
| Service | Cutting |
| MOQ | 500 Kgs |
| Deliver time | 10 - 15 Days based on the quantity |
| Packing | wooden box, or packing as request |
| Loading Port | Shanghai Port. Ningbo Port |
| Other Shape | Round, Square, Flatness, Hexagonal , Angle, Channel |
| Company Type | Factory |
supplies stainless channels in 304/304L and 316/316L. Larger channels in excess of 24″ can be manufactured utilizing laser fusion technology. Laser fused technology also enables engineers and metal buyers to mix thickness or even material grades. Laser fused channels can also be supplied in Duplex 2205 and lean Duplex 2101.
All channels can be cut to size. Stainless channels can be supplied with a polished finish. See below for information specific to channels. Also, see our Structural Products page for structural overview info, including manufacturing techniques.
Size of our stainless steel channel
| Dimensions | D | F | Tw | Tf | Est. Wt | Availability |
|---|---|---|---|---|---|---|
| 3 x 1.375 x .188 | 3 | 1.375 | .188 | .188 | Yes | |
| 3 x 1.5 x .188 | 3 | 1.5 | .188 | .188 | Yes | |
| 3 x 1.5 x .25 | 3 | 1.5 | .25 | .25 | Yes | |
| 4 x 1.75 x .25 | 4 | 1.75 | .25 | .25 | Yes | |
| 4 x 2 x .25 | 4 | 2 | .25 | .25 | Yes | |
| 5 x 1.87 x .375 | 5 | 1.87 | .375 | .375 | Yes | |
| 5 x 2.5 x .25 | 5 | 2.5 | .25 | .25 | Yes | |
| 6 x 3 x .25 | 6 | 3 | .25 | .25 | Yes | |
| 6 x 3 x .375 | 6 | 3 | .375 | .375 | Yes | |
| 8 x 4 x .25 | 8 | 4 | .25 | .25 | Yes | |
| 8 x 4 x .375 | 8 | 4 | .375 | .375 | Yes |
Our Service
Beam and angle forming is a process used to bend an iron to a specific degree or angle.Typically beam forming differs from angle iron rolling, in that it is more concerned with forming the angle iron to a specific angle or degree, rather than a curve or radius. Beam forming processes use applied force to a piece of sheet metal to modify its geometry rather than remove any material, often using a die to create specific shapes (ie I Beams, Tees, etc). The applied force stresses the metal beyond its yield strength, causing the material to deform, but not to fail. By doing so, the sheet can be bent or stretched into a variety of complex shapes.
In some cases, it may be necessary to complete additional positive material identification testing. Penn Stainless Products can complete this testing in house or we can work with an independent laboratory to complete the testing. Please contact us for specific requirements.
|
