Customized Glass Tempered Furnace for 4-19mm Glass Thickness Glass Production Lin

Categories Glass Tempering Furnace
After-sales Service: One Year
Glass Thickness: 4-19mm
Transport Package: Wooden Package
Specification: steel
Trademark: Fssida
Origin: China
HS Code: 8475291900
Supply Ability: 2 Sets/Mouth
Warranty: One Year
Type: Glass Tempering Furnace
Certification: ISO 9001
Structure: Horizontal
Control System: Industrial Computer
Condition: New
Customization: Available | Customized Request
Place of Origin: China
MOQ: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized Glass Tempered Furnace for 4-19mm Glass Thickness Glass Production Lin

Detailed Photos

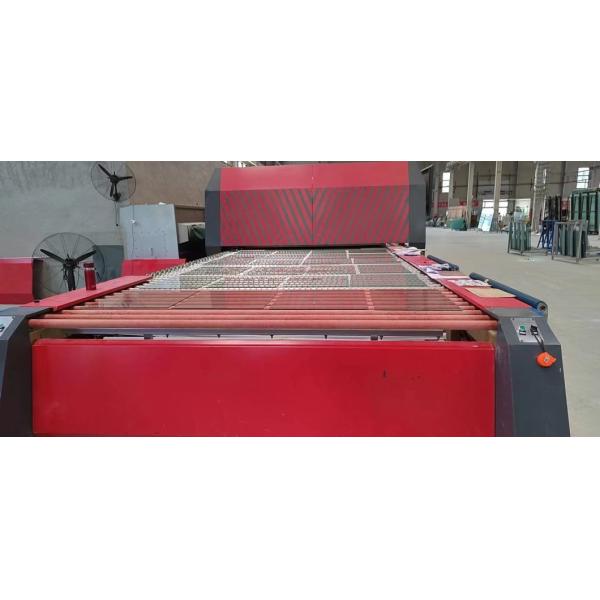

Loading Table The loading table is composed of rubber-covered rollers and Kevlar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the furnace where it will be in ready-to-enter-furnace position and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.

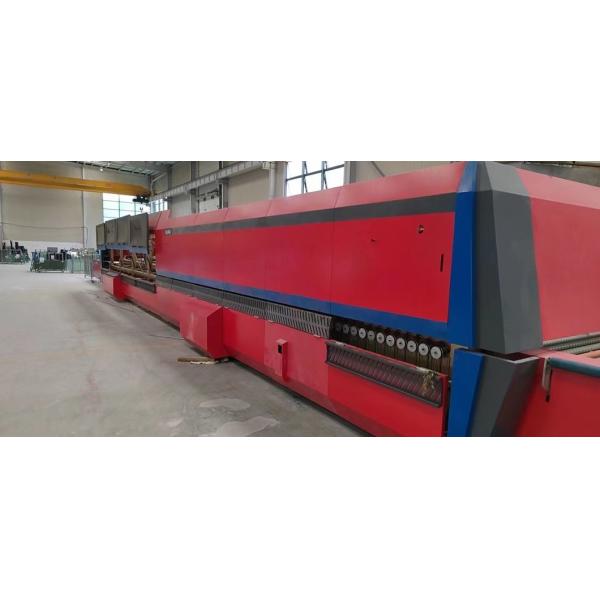

Heating Section The structure of the heating section is of a double-layer box type covered with thermos-insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this section. The upper layer radiation plate is special heat resistant and anti-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramic part, it's easy to replace. When the glass is going to enter the furnace, the front door of the heating section opens the rolls of the loading table and heating section move at the same time. When the glass is in the furnace, the front door will close and the glass on the rollers will be moved back and forth at the distance calculated by the controlling system automatically, so that the glass will be heated evenly. The upper section can be lifted up for maintenance. The heating elements are in matrix layout.
Packaging & Shipping
ModelSTG-A2442-5
Flat Glass sizeMax loading area2440 x 4220mm
Glass thickness range5 -19mm
Max glass size2440 x 4220mm 5-19mm glass
Min Glass size400x400mm
Recommended
transformer capacity
680KVA
Blower Controlcontrolled by frequency inverters
Quality StandardANSI Z97.1-2004,
Finished product rate≥ 98%
Installation period (approximately,)15 working days
Commissioning period (approximately)7 working days
Training period (approximately)1 ( one ) working week
Guarantee periodONE year for non worn-out parts and components.
Power supplier mode380 V + 50 HZ
