| Categories | EV Charging Accessories |
|---|---|
| Place of Origin: | Sichuan, China |
| Model Number: | EVO-CCS1-S-150A |
| Brand Name: | Evoyage |
| Packaging Details: | Standard export carton box |
| Supply Ability: | 10000 Piece/Pieces per Week |
| MOQ: | 2 pieces |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Purpose: | for replace/repair, for retrofit/upgrade |
| Condition: | New |
| Type: | Plug, Inlet, CCS1, EV charger, DC EV charging socket |
| Product Name: | Combo 1 Ccs Ev Inlet |
| Application: | Electric Vehicle Car Charging |
| Rated current: | 80/150/200/250/300A |
| Rated voltage: | 1000V |
| Standard: | CCS1 |
| Mechanical life: | 10000 Times' Plug In/off |
| Function: | EV Car Charger |
| Material: | Thermoplastic |
| Warranty: | 1 Year |
| Company Info. |
| Chengdu Sixpence Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

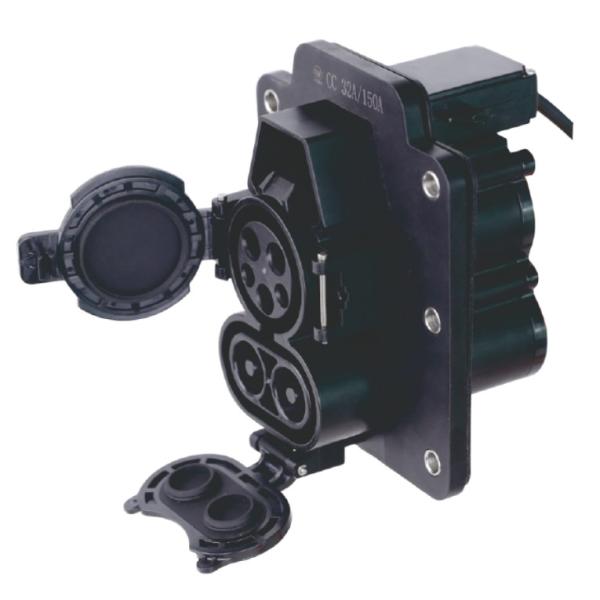

High Voltage DC Fast Charge CCS-1 Electric Vehicle Inlet 200A CCS 1
Charging inlets for electric vehicles
Electric Vehicle Charging Inlet CCS 1 DC Fast Charging Connectors
for Electric Vehicle – DC Charging Inlet Connector ,CCS1 Charging
Connector Inlet 200A For Electric Vehicle.
| Features | 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard | ||||||||
| 2. Concise appearance, support back installation | |||||||||
| 3. Back Protection class IP65 | |||||||||
| 4. DC Max charging power: 90kW | |||||||||
| 5. AC Max charging power:41.5kW | |||||||||
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times | ||||||||
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |||||||||
| Electrical Performance | 1. DC input: 150A 1000V DC MAX | ||||||||
| 2. AC input: 63A 240/415V AC MAX | |||||||||
| 3. Insulation resistance:＞2000MΩ(DC1000V) | |||||||||
| 4. Terminal temperature rise:＜50K | |||||||||
| 5. Withstand Voltage:3200V | |||||||||
| 6. Contact resistance: 0.5mΩ Max | |||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | ||||||||
| 2. Pin:Copper alloy,silver + thermoplastic on the top | |||||||||
| Environmental performance | 1. Operating temperature: -30°C~+50°C | ||||||||
| Model selection and the standard wiring | |||||||||
| Model | Rated current | Cable specigication | Cable Color | ||||||
| DSIEC3J-EV200S | 200Amp | 2 X 70mm²+1 X 6mm² +6 X 0.75mm² | Orange or Black | ||||||
Product name | CCS 1 EV socket |
Voltage | 1000V |
Current | 150A/200A/250A/300A |
Brand Name | Evoyage |
Application | Electric Vehicle Car Charging |
Standard | CCS |
Mechanical life | 10000 Times' Plug In/off |
Material | Thermoplastic |
Warranty | 1 Year |
|
