| Categories | Fiber Optic Distribution Terminal Box |
|---|---|
| Model Number: | Fiber Optic Distribution Cabinet Box |
| Type: | Fiber Optic Distribution Cabinet Box |
| Brand Name: | OEM |
| Use: | 96core Fiber Optic Distribution Cabinet Box |
| Warranty Time: | 10 year |
| Network: | None |
| Working temperature: | -40℃~+60℃ |
| Relative humidity: | ≤ 93% (+40 ℃) |
| atmospheric pressure: | 70KPa~106Kpa |
| Connector attenuation: | ≤0.2dB |
| Return Loss: | FC/UPC≥50dB FC/APC:≥60dB |
| Insertion and removal durability: | >1000 times |
| protection grade: | IP65 |

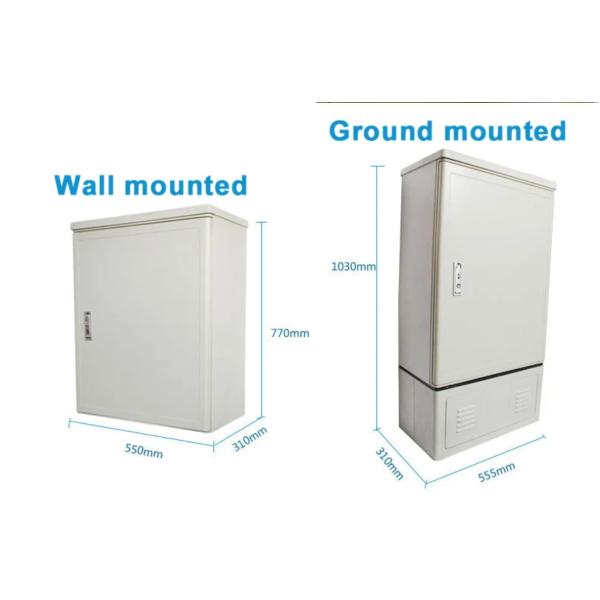

| External dimensions: | 1035mm (height) x 550mm (width) x 308mm (depth) (including base) |
| characteristic: | Moisture proof, waterproof, dustproof, corrosion-resistant |
| characteristic 1: | Fiber bending radius greater than 40mm |
| MOQ: | 50 pieces |
| Price: | $63.00/pieces 50-499 pieces |
| Company Info. |
| Ningbo Fibconet Communication Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |







Operating Temperature | -40°C~+60°C |
Relative humidity | ≤95%(40°C) |
Atmospheric pressure | 70kpa-106kpa |
Insulated resistance | ≥2x10000M/500V(DC) |
Connector loss (insert, repeat) | ≤0.5db |
Return loss | pc ≥ 40db, UPC ≥ 50dB, APC ≥ 60dB |
Mechanical Durability Test | ≥1000 times |
Warranty time | 50 years |


|
