| Categories | Die Cutting And Creasing Machine |
|---|---|
| Warranty: | 1 Year |
| Type: | Other |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company |
| Showroom Location: | Egypt, India, Mexico |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Motor |
| Condition: | New |
| Application: | Commodity, Machinery & Hardware, paperboard |
| Packaging Type: | Cartons, case |
| Packaging Material: | Paper |
| Automatic Grade: | Automatic |
| Driven Type: | Electric |
| Voltage: | 380V |
| Power: | 11kw |
| Place of Origin: | Hebei, China |
| Brand Name: | Cangzhou Tongbao Carton Machinery CO.,LTD |
| Weight: | 23 KG |
| Dimension(L*W*H): | 11000*2450*2300 |
| Key Selling Points: | High-accuracy |

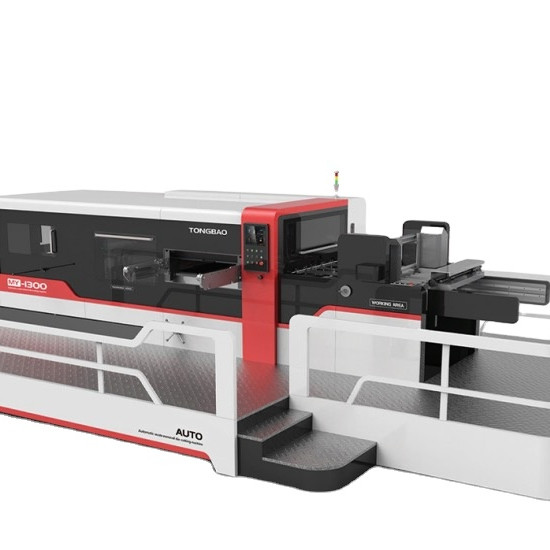

| Product name: | Automatic die cutting and creasing machine |
| Function: | High Effieciency |
| Max paper transmitting size (mm): | 1500*1100 |
| Min paper transmitting size(mm): | 500*450 |
| Max die cutting size(mm): | 1480*1080 |
| Max die cutting pressure: | 350T |
| Max die cutting speed: | 5500 sheets/h |
| Overall size: | 11000*2450*2300 |
| Total weight: | 26T |
| Certification: | CE |
| Packaging Details: | We use plastic film to wrap and put it in box |
| Port: | TIanjin port |
| Supply Ability: | 5 Set/Sets per Month |
| Price: | $50,000.00 - $92,800.00/sets |
| MOQ: | 1pc |
| Company Info. |
| Cangzhou Tongbao Carton Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
MY1300 | MY1500 | MY1650 | |
Max paper transmitting size (mm): | 1300*930 | 1500*1100 | 1650*1200 |
Min paper transmitting size(mm): | 450*400 | 500*450 | 550*500 |
Max die cutting size(mm): | 1280*910 | 1480*1080 | 1630*1180 |
Die cutting accuracy(mm): | ≤±0.50mm | ≤±0.50mm | ≤±0.50mm |
Max die cutting pressure: | 350T | 350T | 350T |
maximum mechanical speed: | 5500sheet s/h | 5500sheet s/h | 5000sheet s/h |
machine size:length, width and height | 9100*2300*2300 | 11000*2450*2300 | 13000*2600*2300 |
machine weight: | 23T | 26T | 32T |



|
