103KT2125T-1P

Categories Sensors Encoders
Brand Name: Semitec
Model Number: 103KT2125T-1P
Place of Origin: PHILIPPINES
MOQ: 1PCS
Price: $0.10/PCS
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500000 PCS
Delivery Time: STOCK
Packaging Details: 4000/Reel
Certification: RoHS DIRECTIVE2011/65/EU
Description: 103KT2125T-1P Semitec Temperature Ntc Thermistor Sensor 10K Ω±1% 3435K±1% SMD 0805
Stock: 50000 PCS
Shipping Method: LCL, AIR, FCL, Express
Category: NTC Thermistors Temperature Sensors
Mfr: Semitec
Series: KT
Package: Reel
Product Status: Active
Resistance in Ohms @ 25°C: 10K Ω
Resistance Tolerance: ±1%
B 25/85: 3435K
B Value Tolerance: ±1%
Operating Temperature: -40~125℃
Power - Max: 5.0 mW
Size(L*W*T): 2.0*1.25*0.95mm
Mounting Type: PCB Mount
Termination Style: SMT
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

103KT2125T-1P

103KT2125T-1P Semitec 10K Ω±1% 3435K±1% SMD 0805 High accuracy, NTC Thermistor temperature Sensor


The KT series thermistor features high accuracy with tight resistance and B-value tolerances of (±1%). The KT thermistor is a high performance, high reliability chip thermistor which complies with IEC standards (dimensions: 1005, 1608) and JIS standards. SEMITEC’S KT thermistors are fully compliant with RoHS DIRECTIVE2011/65/EU.


Applications

Office automation equipment, communication equipment, IT equipment, mobile devices, battery packs, LCDs, hybrid ICs, AV equipment

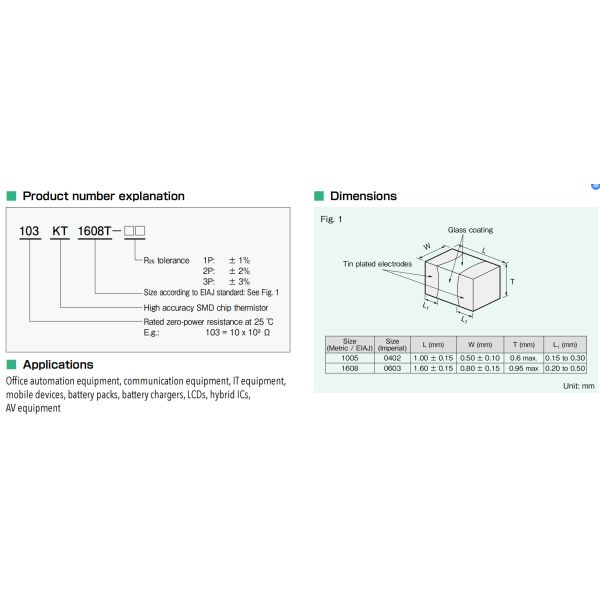

Dimensions

Rating

Part No.R25※1R25ToleranceB-value※2Dissipation factor
mW/℃
Thermal time constant s※3Rated power
mW at 25℃
Operating Temperature range
103KT1608T10kΩ±1%3435k±1%approx. 0.9approx. 54.5−40〜+125
503KT1608T50kΩ4055k±1%
104KT1608T100kΩ4390k±1%
103KT1005T10kΩ3435k±1%approx. 0.7approx. 2.23.5

※1:Rated zero-power resistance at 25℃
※2:B-value determined by rated zero-power resistance at 25℃ and 85℃
※3:Time required to reach 63.2% of temperature difference. Measured in still air.
