| Categories | Automatic Laminating Machine |
|---|---|
| Applicable Industries: | Manufacturing Plant, Other, Advertising Company |
| Showroom Location: | None |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Marketing Type: | New Product 2021 |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition: | New |
| Application: | clothing, shoes |
| Automatic Grade: | Automatic |
| Production Capacity: | 5-35m/min |
| Place of Origin: | Jiangsu, China |
| Brand Name: | GAOQI |
| Voltage: | 380V 50Hz Three Phase |
| Power: | 220kw |
| Dimension(L*W*H): | 18500mm*3000mm*4550mm |
| Weight: | 6500 |
| Features: | Non-bubble |
| Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| based materials: | release paper,kraft ,tissue, membrane (BOPP , CPP , PE , PU,etc.) |
| Color: | Customrized |
| Product Type: | Adhesive Sticker, Masking Tape |
| Effective coating width: | 1300 mm |
| Certification: | ce |

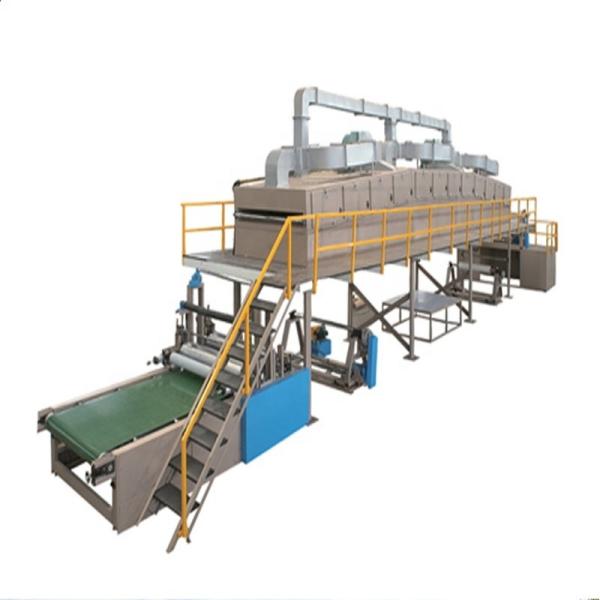

| Packaging Details: | water baesd glue laminating machine for BOPP/PET film to silicone release paper
Inner Package: film Outer Package: wooden case |
| Port: | Shanghai |
| Supply Ability: | 30 Set/Sets per Month |
| Price: | $13,000.00 - $19,999.00/sets |
| MOQ: | 1 PC |
| Company Info. |
| Jiangsu Gaoqi Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |






The main raw materials: (1) Based Material: release paper (silicone oil paper), tissue, membrane (BOPP , CPP , PE , PU,etc.) (2) Glue:oily or water-based pressure-sensitive adhesive,solvent-based adhesive (3) coating method: Comma knife coating |
Main technical specifications: 1. Effective coating width:1300mm (coating roller,blade,machine
rollers width are 1500 mm ) 2.Machine's speed:0-35m/min 3.Coating and laminating speed:5-30m/min 4.Gross Motor: about 15KW 5.Power of electric heating:about 60KW (full-load power ) 6.Coating of variation:±0.005 mm 7.Coating thickness:thinnest 0.01mm 8.Drying heating method:electric heating air circulation 9.Coating method:comma knife coating 10.Gluing amount:20~120 g/m² 11.Temp. control:Max. 120 °C (±3 °C) ; 12m oven (customizable) 12.Max. unwinding diameter:Ø 1000mm 13.Max. winding diameter:Ø 1000mm 14.Winding uniformity:± 2 mm 15.Temperature control of drying track: ≤ 100 °C accuracy:±3 °C 16.Voltage: 380V ± 10% , 50Hz , 3 phase five-wire 17.Gross Power: about 220 KW. (Normal production consumes about 80kW) only for reference . 18.Overall Dimension(L*W*H): about 18000mm×3000mm×4550mm |









|
