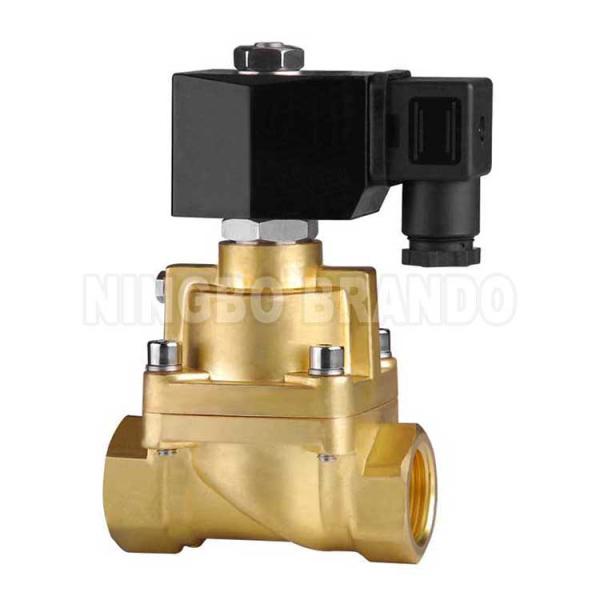

90 bar High Pressure Brass Solenoid Valve For Water Air Gas 1/4'' 3/8'' 1/2'' 24V 220V

90 bar High Pressure Brass Solenoid Valve For Water Air Gas 1/4'' 3/8'' 1/2'' 24V 220V

Product Features:

1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Working Temperature: NBR (-5 to +80ºC), FKM (-10 to +150ºC), PTFE (-20 to +180ºC)
3. Max Working Pressure: 90 bar
4. Body Material: Brass
5. Seal Material: NBR, FKM, PTFE
6. Port Size: 1/4'', 3/8'', 1/2''
7. Orifice Size: 8mm
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

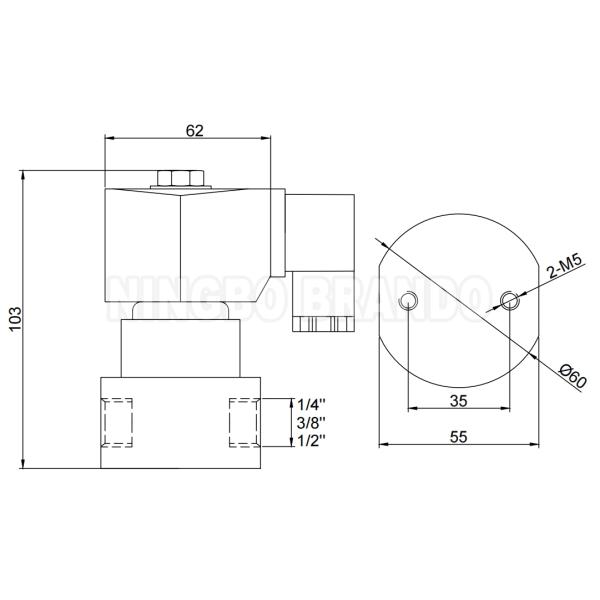

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
