| Applicable Industries: | Food & Beverage Factory, Other, Ice Making Machine |
| Condition: | New |
| Place of Origin: | Jiangsu, China |
| Ice Shape: | tube ice |
| Voltage: | 380v/3p/50Hz |
| Power: | 11.01kw |
| Dimension(L*W*H): | 1700x920x2000(LxWxHmm) |
| Weight: | 1250 KG |
| Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate |
| Ice storage capacity: | Other |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Condenser, Compressor, Evaporator |
| Compressor brand: | Bitzer |
| Application: | Industrial, Ice Making |
| Product name: | tube ice machine |
| Cooling way: | Air Coolig |
| Material: | SUS304 Staineless Steel |
| Ice size: | 29mm external diameter |
| Refrigerant: | R404A |
| Control system: | Siemens PCL Program Control System |
| Feature: | High Effective |
| After-sales service1: | Remote Technical Guidance |
| After-sales service2: | On site installation&maintenance |
| Packaging Details: | 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required compone |
| Port: | Shanghai Port, China |
| Supply Ability: | 100 Set/Sets per Quarter |
| Price: | $20,800.00/units >=1 units |
| MOQ: | 1pc |
| Company Info. |
| Focusun Refrigeration Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |





Name: Evaporator module
The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .
A complete unit with all equipment assembled in a steel frame
except its cooling tower for water-cooling or air fan for
air-cooling. It's suitable for container shipment, easy to ship,
move and install. Right after connecting to an electric and water
source, the machine can be put into use

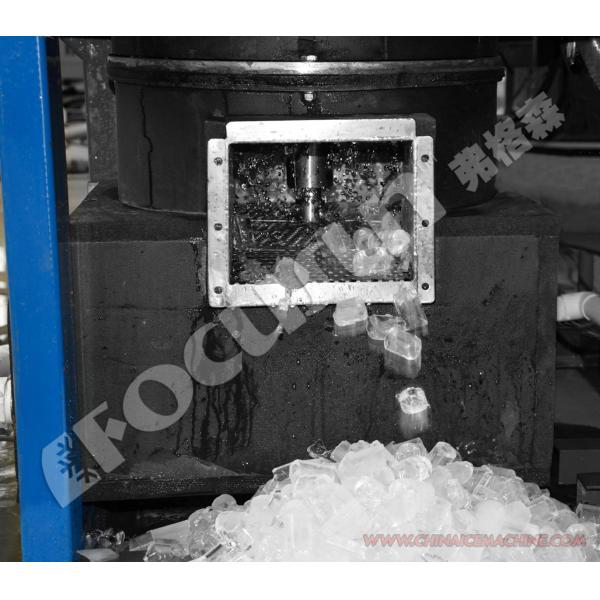

Name: Ice generator
The main part of the tube ice machine is the ice generator, a
vertical shell-and-tube vessel surrounded by a water tank. Special
water distributors on top of each tube control an even,spiral
supply of water down the inside of the tubes. Expess water is
collected in a tank beneath the ice generator and pumped back up to
the tank at the top .
Tube ice is widely used in hotels, restaurants, bars, flight
kitchens, catering, concrete cooling, chemical industry processing,
food production processing, fishing industry and a variety of
laboratory and medical applications.

FOCUSUN is a pioneer in the fields of ice making and vacuum
pre-cooling. We specialized in designing and manufacturing all
kinds of high quality ice machines and cooling systems. With the
technology and experience accumulated over the years, we use
advanced technology of refrigeration and mechanical transmisson to
provide quality service to more than 11,000 professional clients in
56 countries around the world.










Packaging | ||
Size | 1800 (L) * 1000 (W) * 1450 (D) | |
Weight | 3000kg | |
