| Categories | Fiber Laser Cutting Machine |
|---|---|
| Place of Origin: | Beijing, China |
| Brand Name: | BOAO |
| Certification: | ce |
| Packaging Details: | Wooden box |
| Supply Ability: | 50 Unit/Units per Month |
| Price: | $17,000.00/units 1-1 units |
| MOQ: | 1 UNIT |
| Application: | LASER CUTTING, Automatic laser engraving and cutting |
| Applicable Material: | Metal |
| Condition: | New |
| Laser Type: | Fiber Laser |
| Cutting Area: | 400mm*400mm |
| Cutting Speed: | ≤7000mm/s |
| Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT |
| Cutting Thickness: | 0.1-20mm |
| CNC or Not: | Yes |
| Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT2000 |
| Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Raytools |
| Servo Motor Brand: | Siemens |
| Guiderail Brand: | PMI |
| Control System Brand: | Cypcut |
| Weight (KG): | 900 KG |
| Key Selling Points: | High-accuracy |
| Optical Lens Brand: | Might |
| Warranty: | 2 years |
| Applicable Industries: | Manufacturing Plant, Advertising Company |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Warranty of core components: | 2 years |
| Core Components: | Other, laser source |
| Mode of Operation: | continuous wave |
| Configuration: | gantry type |
| Products handled: | Sheet Metal |
| Feature: | Programmable |
| Applicable Materials: | precious metals |
| line width: | ≤30μm |
| Laser power: | 500W / 1000W / 2000W / 3000W |
| Laser source: | Raycus IPG |

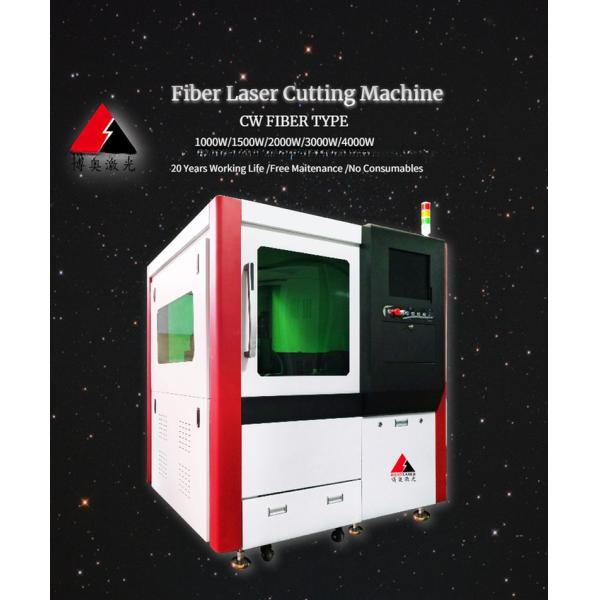

| Product name: | Fiber Laser Metal Cutting Machine |
| Driving system: | Yasukawa Servo System |
| Power supply: | 380V/50/60HZ |
| Laser tube type: | CW Fiber |
| Port: | Tianjin |
| Company Info. |
| Beijing Boao Laser Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Model NO: | BFC1000 | ||||||
Laser Type | RAYCUS /MAX FIBER ,CHINA | ||||||
Laser Wavelength | 1060nm | ||||||
Laser Maximum Power | 1000W | ||||||
Max. Cutting thickness | ≤12mm | ||||||
Total Power Consumption | <18KW (380v/ 3Phase/50Hz/) | ||||||
Working Size | 3000*1500 mm | ||||||
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||||
X, Y, Z Axis Orientation Precision | ≤±0.03mm/m | ||||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||||
Min line width | ≤0.15mm | ||||||
Maximum Empty Running Speed | 100m/min | ||||||
Driving way | Imported servo motor | ||||||
Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw | ||||||
Worktable Max Load | 1-3Tons | ||||||
Cooling System | Water Cooling | ||||||
Continuous working time | 24 Hours | ||||||
Environment temperature | 0-35°C | ||||||
Power requirements | 380V/3 Phases /50Hz or 60Hz | ||||||
|
