| Categories | Semi Rigid Solar Panels |
|---|---|
| Brand Name: | AHONY or Customer's own brand |
| Model Number: | eMarvel 115w |
| Place of Origin: | Guangdong, China |
| Packaging Details: | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
| Supply Ability: | 20000 Piece/Pieces per Month |
| MOQ: | 4 pieces |
| Price: | $152.00/pieces 4-49 pieces |
| Product name: | Bifacial solar module for solar home system |
| Cell size: | 125mmx125mm |
| Type: | IBC Black Solar Panel |
| Panel Dimensions: | 550*1090*4 |
| Panel Efficiency: | 24.4% |
| Warranty: | 2 years |
| Solar cell: | SunPower or Monocrystalline PERC |
| Color: | White or Black transparent solar panel |
| Application: | Popular bifacial solar module for premium solar home system |
| Certificate: | CE,ROHS,SGS,IEC,85°C& 85% humidity test |
| Company Info. |
| Shenzhen Ahony Power Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

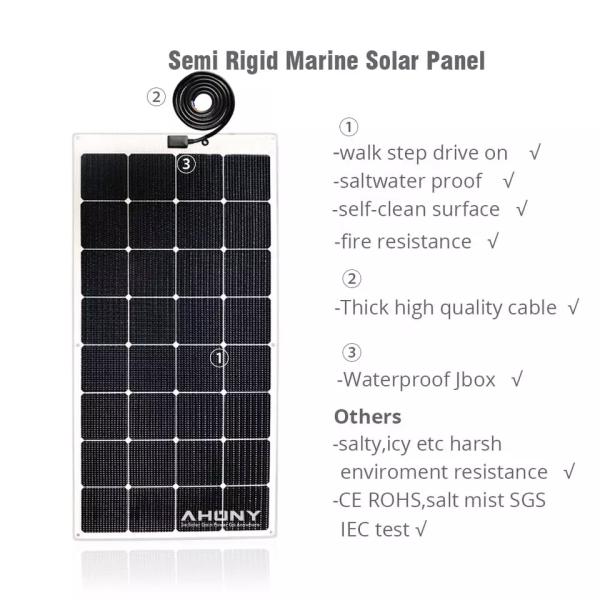

115w Walkable Solar Panel Rough ETFE High Efficient Marine Module For Marine Floating Deck Cold Chain Car Boat Yacht
The eMarvel light marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this light marine solar panel can bend a slightly angle,they
are approved by CE,ROHS,S GS,certified under IEC standard.
AHONY uses high efficiency cell 24.4% back contact cells.We offer a
wide ranges of customize service,OEM,ODM,automatically producing
line insures better workmanship,faster delivery and more stable
quality.

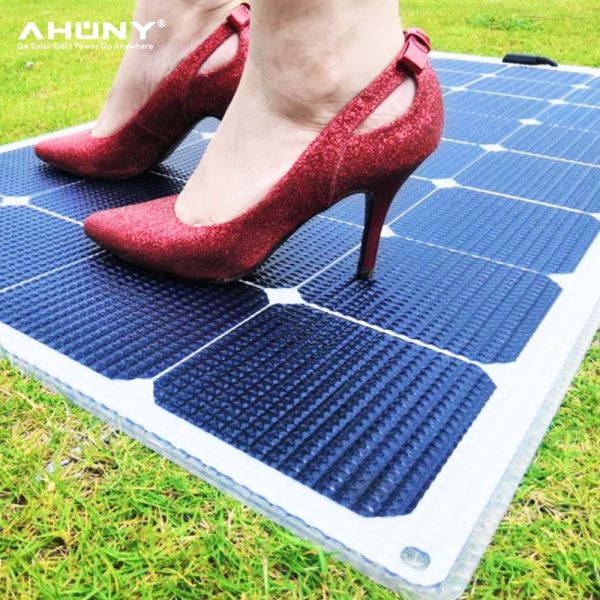

* Walkable and Anti-slippery
* Longer lifespan 15years guaranteed
* High temp resistance and little power loss
* Rigid,thin,light design for widely use
Solar cells can be:
Back contact cell;
Monocrystalline solar cell
HJT,bificial solar cells
| Model No. | eMarvel 115w |
| Feature | solar panel can walk on step on with rough surface anti slippery |
| Product Name | walkable solar panel 115w anti slippery surface rough ETFE from Japan for marine riverside boat yacht |
| Maximum Power[Wp] | 115 |
| Solar Cell | SunPower Maxeon Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 24.4% |
| Size[mm] | 550*1090*4 |
| Max Power Voltage Vmp[V] | 19.6 |
| Max Power Current Imp[A] | 5.87 |
| Open Circuit Voltage Voc[V] | 23.13 |
| Short Circuit Current Isc[A] | 6.34 |
| Net.Weight[kg] | 4.95 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 0A<IR<2A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,S GS,IEC,85°C& 85% humidity test |
| Maximum bend radius(θ) | 5° |
| Cables and Connectors | APJB010,2m dual cores cable 2.5mm2 bare at end |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with installation hole |
|
