Product Description

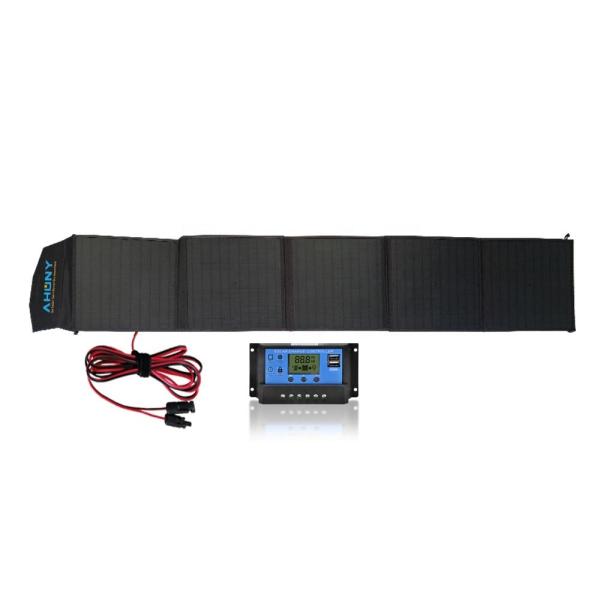

This New eMobi F100w M foldable solar kit is with very small size to charge small portable generator 250wh to 450wh;
1.supporting leg to get max angle of sunshine,get 15-20% more power than regular;
2.the front colour stripe is green,colour can be custmoized to orange,red,yellow or any colour the same with your logo,we offer different designs and colurs,can print customer's logo;
3.charge controller is PWM with LCD display;
4.controller support all kinds of battery including lithium LiFePO4, LITHIUM ION,lead acid,gel,flood batteries etc.

Traditonal function and feature.
it has the best size that is suitable for RV,the voltage is 20V which is better for 12v battery.
A grade mono solar cells,efficienty is over 21.3%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
strong solid thick fibreglass backsheet,heat resistance;
With a bag on back to fix and fill in the cable.

Folding solar panel eMobi F100w M uses waterproof fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.

The textile has a inner PU layer to prevent water come in panel and makes it waterproof.
The cell efficiency is 21.3%-22.5% makes size smaller than panel with other low efficiency solar cells.

Item	Description
Model No.	eMobi FM100W
Power max	100wp
Folded size	400*360*80mm
Open size	1980*400*4mm
N.W:	4.3kg

Direction for use

使用说明

-The foldable kit has cable and MC4 connector which can plug to portable generator;

-there is controller,battery clips that can charge different batteries like lead acid,gel battery,sealed or flood batteries,charge controller has charging and discharging function and LCD display.This charge controller also support lithium LifePo4 etc battery.

-when connected battery,the dual USB can charge all kinds of 5v port like cellphone,powerbank,drones,bluetooth etc.

Widely used for:
Folding solar kits,Portable solar generator,Lead acid battery,Marine use battery,Electrical motocycle,Gel battery,Car battery,flood battery etc.
This charge controller do not support lithium battery,if you must use to charge lithium battery,please consult sales person to change another one.

Application scene
-Self-driving travel
-cycling
-mountain climbing
-yacht,boat,marine
-Desert
-snow mountain
-disaster area
-camping picnic
-Portable refrigerator

For all outdoor to meet the 12v or customized power requirements.Hot sale solar panel folding solar kit 60w small size portable light weght for charging 12v battery used in camping.

• Description of application effect

Cable,charge controller,battery clips all in one design,very small size and only 4.3kg/9.46lbs.

Only need open the kit,stick on the supporting leg to get max vertical shinning and max power.Connect battery.

Easy,portable,environmental!

Size Information

Size Chart of This Design

Model No.	eMobi F5x20w or eMobi F100w M or eMobi F5*20w
Product Name	A grade cell 100w mono portable folding solar charging bag dual USB PWM controller CE for rv 5v 12v power station all batteries
Maximum Power[Wp]	100
Solar Cell	Mono PERC A Grade Solar Cell
Cell Efficiency	23.5%-25%
Folded Size[mm]	400*360*60
Open Size[mm]	1980*400*4
Max Power Voltage Vmp[V]	20.26
Max Power Current Imp[A]	4.94
Open Circuit Voltage Voc[V]	24.05
Short Circuit Current Isc[A]	5.34
Net.Weight[kg]	4.3
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS ISO9001
Suface/backsheet	PET+FR4 fibreglass
Charge controller	PWM 10A 12/24V,2 USB,LCD display
Cables	5m 14AWG cable
Supporting Leg	Yes
Hook up way	ropes

Packing&Shipping

1 pcs in a bubble plastic bag,then in 1 carton box,plywood pallet.The whole package will use thin film to protect and make it waterproof.
