| Categories | Scrap Metal Baler |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | gaode |
| Packaging Details: | in nude Alligator hydraulic metal scrap stainless steel cutter |
| Supply Ability: | 100 Set/Sets per Year |
| Price: | $5,550.00/sets 1-4 sets |
| Condition: | New |
| Type: | CNC Plasma Cutters |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Motor, Pump |
| Voltage: | 220v or in your demand |
| Rated Power: | 22kw |
| Dimension(L*W*H): | 2300*1000*1300 |
| Year: | 2019 |
| Warranty: | 6months |
| Key Selling Points: | Competitive Price |
| Applicable Industries: | Other |
| Showroom Location: | Germany, Russia, Thailand, Argentina, Bangladesh, Japan, Malaysia, Australia |
| Weight (KG): | 80 KG |
| color: | blue |
| Max Holding Force(ton): | 25 |
| Max shear Force(ton): | 160 |
| Blade Length(mm): | 700 |
| Max Blade Opening(mm): | 320 |
| Shear Frequency(times/min): | 9-16 |
| Nominal Speed: | 1460rpm |
| Power(KW): | 18.5 |
| operation: | Menual Feeding menual or Automatic operation |
| Square Steel(mm): | 50*50 |
| Port: | shanghai |

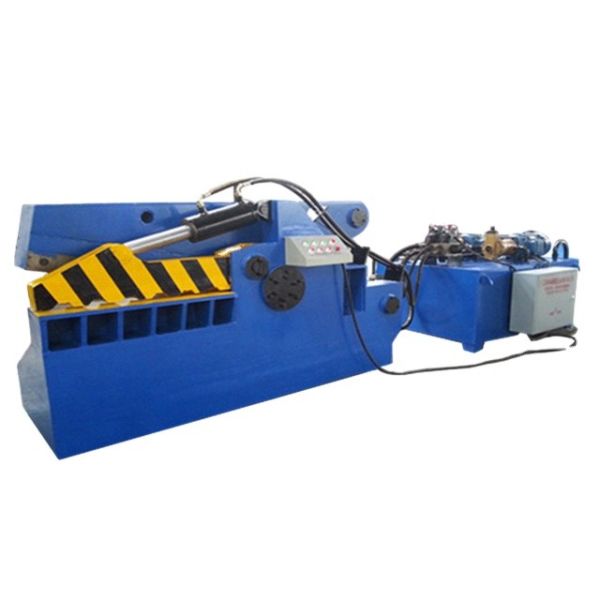

Alligator hydraulic metal scrap stainless steel cutter HC43-1600
Technical Specifications:
TECHNICAL SPECIFICATIONS | |||||||
1 | Max Shear Force | 2000KN | |||||
2 | Max Holding Force | 250KN | |||||
3 | Shearing Frequency | 9~16 times/min | |||||
4 | Height of Working Table | 740 mm | |||||
5 | Blade Length | 700mm | |||||
6 | Max Blade Opening | 320mm | |||||
7 | Hydraulic System Pressure | 21.5MPa | |||||
8 | Control System | Hydra-electrical Valves; Push Button to Control | |||||
9 | Shearing Material Size | Round Steel | Ø35MM | ||||
Square Steel | 50*50 MM | ||||||
10 | Motor | Model | Y180M-4 | Quantity | 1 set | ||
Nominal Speed | 1460rpm | Nominal Power | 18.5 KW | ||||
11 | Hydraulic Pump | Model | 80YCY14-1B | Quantity | 1set | ||
Nominal Outflow | 80ml/r | Nominal Pressure | 31.5MPa | ||||
Product Flow:
Packaging Detail: in nude
Delivery Detail: 20-25 working days
Exhibition:
Factory:
Jiangyin Gaode Hydraulic Machinery Co,Ltd. We are the professional manufacture of hydraulic machinery and scrap proccessing equipment . As we all known, there are abundant technical force, advanced test equipment and technology and completed testing means.
The products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, materials recovery facility and so on.
Company Contact: Jiangsu Gaode Hydraulic Machinery Co,Ltd.
Nancy Ren
Trademanager:cn200094822
TEL: 86-510-86996082 13815143573
FAX: 86-510-86993993
ADD: NO.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
|
