| Categories | Overhead Insulated Cable |
|---|---|
| Brand Name: | Zhenglan Cable |
| Model Number: | LV overhead insulated cable |
| Certification: | ISO 9001:2015，ISO 14001:2005 |
| Place of Origin: | Henan, China |
| MOQ: | 1000meters |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80Km/Month |
| Delivery Time: | 15-30 days |
| Packaging Details: | Wooden drum, iron wooden drum |

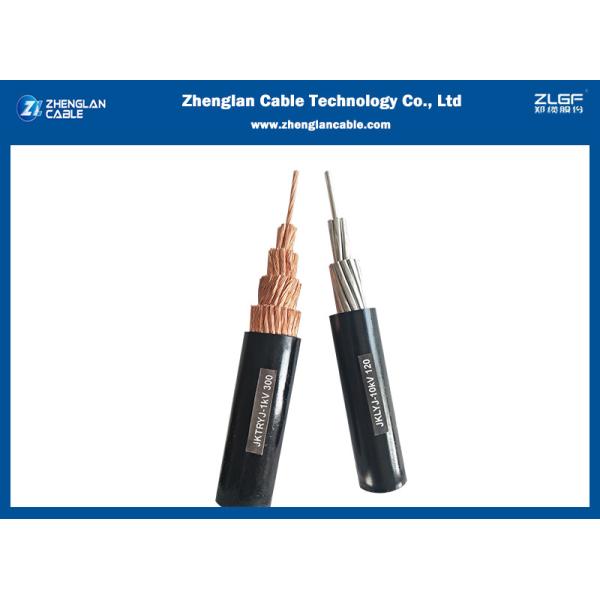

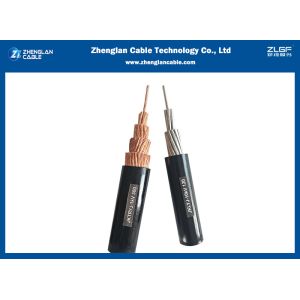

| Name: | 1kV SAC Cable Overhead Insulated Cable Aerial Spaced Cable |
| structure: | AL / XLPE |
| Conductor Material: | Aluminum |
| Insulation Material: | XLPE |
| Outer sheath color: | Black |
| Application: | Overhead transmission use |
| Quality: | confirm to IEC60502-2 |
| Standard: | ISO 9001:2015 |
| Company Info. |
| Zhenglan Cable Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
APPLICATION

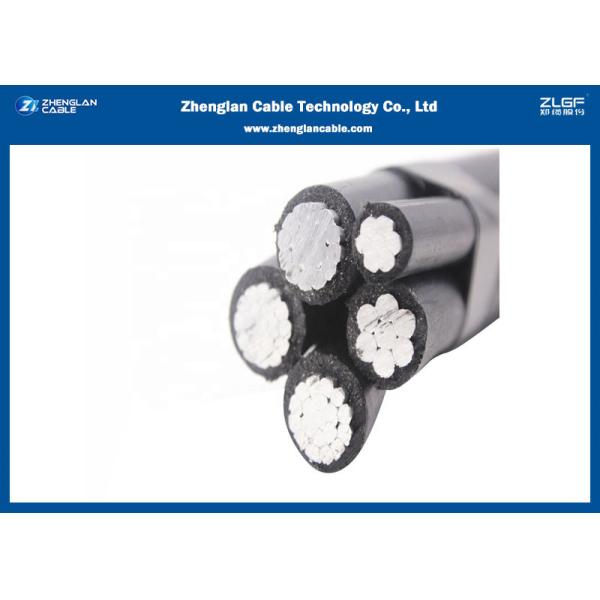

Aerial Bundle Cable (ABC cable) is a very innovative concept for
overhead power distribution as compared to the conventional bare
conductor overhead distribution system. It provides higher level of
safety and reliability, lower power losses and ultimate system
economy by reducing installation, maintenance and operative cost.
LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial
service for temporary service at construction sites, as a service
drop (power pole to service entrance), as a secondary cable (pole
to pole) or street lighting. This over-head cable provides
reinforced insulation acc. IEC 61140 and fulfill therefore Class II
acc. IEC 61140. It is not flame retardant. But this could be if
requested change to a flame retardant cable.
STANDARD
Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1
/ NFC 33-209 / AS/NZS 3560-1 standards
CONSTRUCTION
Conductor: Aluminium conductor, round stranded compressed (RM).
insulation: XPLE compound, UV-resistant.
Core identification: 1, 2 resp. 3 raised longitudinal ribs on the
surface of the cores. The surface of the neutral core should have
at least 12 ribs for cross-sections up to 50 mm² and a minimum of
16 ribs for cores above 50 mm². In the case of five core bundles
the surface of the protective core should be smooth.
2 Cores : 1 rib Or Number 1
3 Cores : 2 ribs Or Number 1,2
4 Cores : 3 ribs Or Number 1,2,3
ELECTRICAL PROPERTIES
Rated Voltage:0.6/1kV
| Test Voltage | 4kV |
| Minimum laying Temperature | -20°C |
| Operating Temperature | -40°C~ +90°C |
| Maximum Short-circuit Temperature | 250°C |
| Maximum Conductor Temperature | 80°C |
| Minimum Bending radius | 18×OD |
| Number of Cores xNominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
| No.×mm² | mm | Kg/Km | Ω/Km | KN | A |
| 1x16 RM | 8,0 | 74 | 1,910 | 2,5 | 72 |
| 1x25 RM | 9,0 | 106 | 1,200 | 4,0 | 107 |
| 1x35 RM | 10,5 | 138 | 0,868 | 5,5 | 132 |
| 1x50 RM | 11,8 | 182 | 0,641 | 8,0 | 165 |
| 1x70 RM | 13,0 | 252 | 0,443 | 10,7 | 205 |
| 1x95 RM | 15,4 | 333 | 0,320 | 13,7 | 240 |
| 1x120 RM | 17,0 | 408 | 0,253 | 18,6 | 290 |
| 1x150 RM | 19,0 | 502 | 0,206 | 23,2 | 334 |
| 1x185 RM | 21,0 | 611 | 0,164 | 28,7 | 389 |
| 1x240 RM | 24,0 | 801 | 0,125 | 37,2 | 467 |
| 2x16 RM | 15,6 | 147 | 1,910 | 2,5 | 72 |
| 2x25 RM | 18,0 | 208 | 1,200 | 4,0 | 107 |
| 2x35 RM | 20,0 | 277 | 0,868 | 5,5 | 132 |
| 2x50 RM | 23,5 | 361 | 0,641 | 8,0 | 165 |
| 2x70 RM | 25,4 | 505 | 0,443 | 10,7 | 205 |
| 2x95 RM | 30,3 | 666 | 0,320 | 13,7 | 240 |
| 2x150 RM | 38,0 | 1004 | 0,206 | 23,2 | 334 |
| 4x16 RM | 18,8 | 286 | 1,910 | 2,5 | 72 |
| 4x25 RM | 21,2 | 430 | 1,200 | 4,0 | 107 |
| 4x35 RM | 24,1 | 553 | 0,868 | 5,5 | 132 |
| 4x50 RM | 27,8 | 746 | 0,641 | 8,0 | 165 |
| 4x70 RM | 31,8 | 1.009 | 0,443 | 10,7 | 205 |
| 4x95 RM | 37,8 | 1.332 | 0,320 | 13,7 | 240 |
| Number of Cores xNominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
| No.×mm² | mm | Kg/Km | Ω/Km | KN | A |
| 4x120 RM | 54,4 | 1.632 | 0,253 | 18,6 | 290 |
| 4x50 + 1x25 RM | 319 | 814 | 0,641/1,200 | 8,0/4,0 | 165/107 |
| 4x50 + 1x35 RM | 319 | 845 | 0,641/0,868 | 8,5/5,5 | 165/132 |
| 4x70 + 1x25 RM | 360 | 1105 | 0,443/1,200 | 10,7/4,0 | 205/107 |
| 4x70 + 2x25 RM | 400 | 1217 | 0,443/1,200 | 10,7/4,0 | 205/107 |
| 4x95 + 1x25 RM | 418 | 1438 | 0,320/1,200 | 13,7/4,0 | 240/107 |
| 4x95 + 2x25 RM | 420 | 1544 | 0,320/1,200 | 13,7/4,0 | 240/107 |
| 4x120 + 1x25 RM | 590 | 2050 | 0,253/1,200 | 18,6/4,0 | 290/107 |
