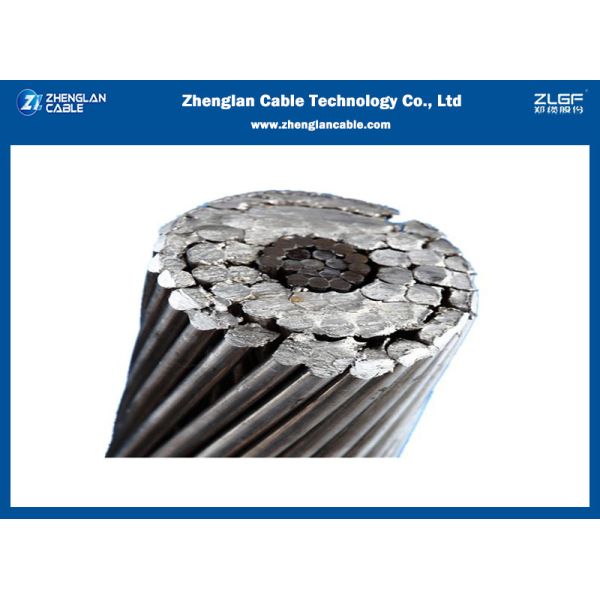

BS 215 Partea 2-1970 222.3mm2 Aluminum Conductor Steel Reinforced ACSR Jaguar

BS 215 ACSR JAGUAR (AL:210.60mm2 , ST:11.69mm2 ) Bare Aluminum Conductor For Overhead Transmission Line(AAC,AAAC,ACSR)

Overhead Bare Conductor Wire APPLICATION

ACSR Conductor have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Overhead Bare Conductor Wire STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Bare Conductor Types

(1) all aluminum conductor (AAC)
(2) all aluminum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4)aluminum conductor aluminum alloy reinforced(ACAR)

Overhead Bare Conductor Wire ELECTRICAL PROPERTIES

density@20ºC	Aluminium: 2.703 kg/dm
density@20ºC	Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C	Aluminium: 0.00403 (°C)
resistivity@20°C	Aluminium: Should not exceed 0.028264
linear Expansivity	Aluminium: 23 x10 (°C)
linear Expansivity	Galvanised Steel: 11.5 x10 (1/°C)

SERVICE CONDITIONS

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m
Seismic Acceleration	0.12 - 0.05g
Isokeraunic level	10 – 18
relative Humidity	5 – 100%

TECHNICAL DATA

Numbers of Wires		Modules of Elasticity		Coeficient of linear Expansion
AL	STEEL	Kg/mm2	Lb/in2	1/Cº	1/Fº
6	1	81	11.5 x10⁶	19.1 x10^-6	10.6 x10^-6
6	7	77	11.0 x10⁶	19.8 x10^-6	11.0 x10^-6
12	7	107	15.2 x10⁶	15.3 x10^-6	8.5 x10^-6
18	1	67	9.5 x10⁶	21.2 x10^-6	11.8 x10^-6
24	7	74	10.5 x10⁶	19.6 x10^-6	10.9 x10^-6
26	7	77	10.9 x10⁶	18.9 x10^-6	10.5 x10^-6
28	7	79	11.2 x10⁶	18.4 x10^-6	10.2 x10^-6
30	7	82	11.6 x10⁶	17.8 x10^-6	9.9 x10^-6
30	19	80	11.4 x10⁶	18.0 x10^-6	10.0 x10^-6
32	19	82	11.7 x10⁶	17.5 x10^-6	9.7 x10^-6
54	7	70	9.9 x10⁶	19.3 x10^-6	10.7 x10^-6
54	19	68	9.7 x10⁶	19.4 x10^-6	10.8 x10^-6

CONSTRUCTION PARAMETERS

• IEC 60189

Code	Nominal Area			Stranding		Overall Diameter	Weight	Breaking Load	Electrical Resistance @20°	Current Rating*
	AL	STEEL	TOTAL	AL	STEEL
	mm2	mm2	mm2	No.^xmm	No.^xmm	mm	Kg/Km	KN	Ω/Km	A
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934	85
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478	112
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174	150
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555	198
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869	263
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304	299
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.231	302
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.18	347
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805	351
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.144	398
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444	402
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154	458
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155	461
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917	526
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917	530
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722	607
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723	610
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642	651
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643	655
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578	693
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578	697
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516	741
560*	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516	745
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459	794
630*	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459	798
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407	851
710*	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407	856
800*	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361	910
800*	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362	912
800*	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362	916
900*	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321	972
900*	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322	974
1000*	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289	1031
1120*	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258	1096

Why you choose us?

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.

Product Tags:


*From:	Your email address is incorrect!
*To:	Zhenglan Cable Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Aluminum Conductor Steel Reinforced
Brand Name:	Zhenglan Cable
Model Number:	ACSR Bare Conductor(Area AL::210.60mm2 Steel:11.69mm2 Total:291mm2)
Certification:	3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin:	Henan, China
MOQ:	300 meters
Payment Terms:	L/C, T/T, , Western Union
Delivery Time:	10 days

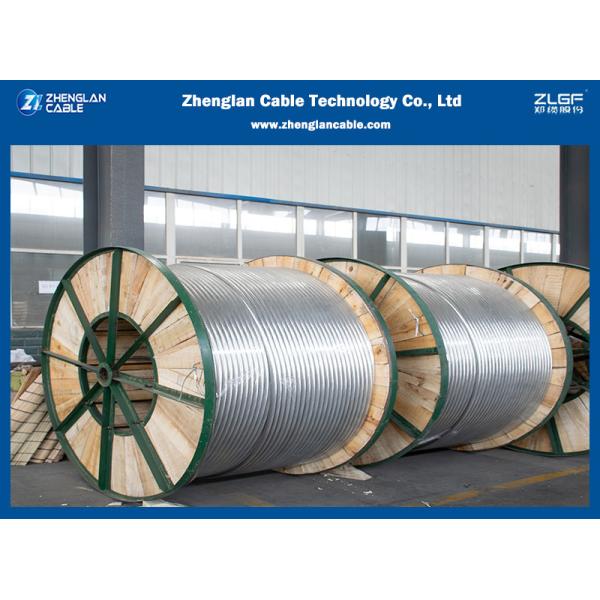

Packaging Details:	Wooden drum, wood and steel drum,as customer's request
Material:	AL&STEEL
Out Sheath Color:	None
Core:	AL:18; Steel:1
Cable Drum Length:	Customized
characted:	No Insulated
Armoured:	No
Total Area:	222.3mm²
HS Code:	7614100000
