Bare Conductor ACSR Aluminium Power Cable 1192.5 MCM Bunting Transmission Line ASTM B232

ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232

Application

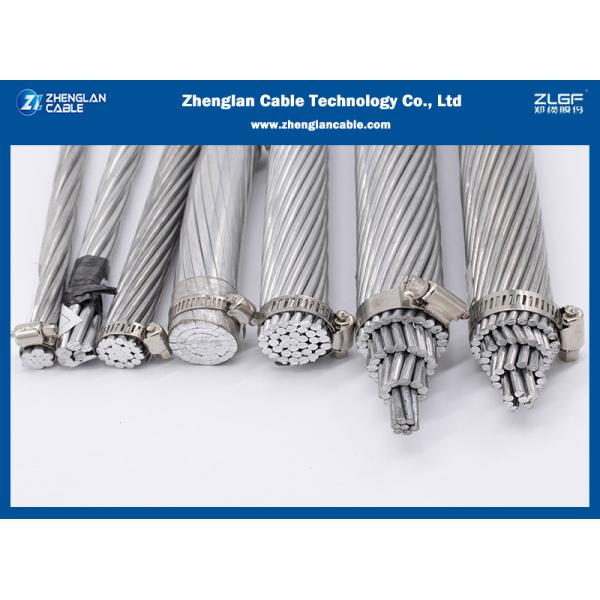

ACSR are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The inside of the ACSR is a steel "core", which mainly increases the strength; the outside is wrapped around the steel core with aluminum wire by twisting, and the aluminum strand mainly plays the role of transmitting electric energy.

Bare Conductor Electrical Cable STANDARD

BS EN50182 , IEC 61089, ASTM B232, BS 215-2, CSA C49M, GOST 839, NFC 34-120, GB/T1179-2008.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Construction:

• Concentric-lay stranded.
• 1 up to 4 layers aluminum wires stranded, 6 to 84 aluminum wires.
• 1 up to 3 layers steel wires as core, 1 to 37 steel wire.
• Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
• Coating od zinc, Zn-5A1-MM, high strength, Extra and Ultra available.
• Can-do both left-hand lay and right hand lay.

The ACSR has simple structure, convenient installation and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys. It has good electrical conductivity and sufficient mechanical strength and high tensile strength. , The distance of the tower pole can be enlarged and so on. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

ELECTRICAL PROPERTIES

SERVICE CONDITIONS

Technical date sheets

ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232

• overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
• 1-35kv overhead transmission line use insulated conductor
• power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
• power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
• 300/300V, 300/500V, 450/750V cotrol cable, house wire

Why you choose us?

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided

A Professional Manufacturer of Wires and Cables
—Zhenglan Cable Technology Co. Ltd, formerly known as Henan Zhengzhou Cable Co. Ltd, is one of the largest ­scale backbone enterprises in China's wire and cable industry. Our company's registered capital is about $32 million and our headquarters is located at the 49th floor of the South Tower of the Greenland Center, Zhengzhou New District (Twin Towers). Our factory is located in Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area.

Our main products are nine major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables and more) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, home use wires and others.

Wide Product Range to Choose From
Our company is specialized in conductors such as All Aluminium Conductors (AACs), All Aluminium Alloy Conductors (AAACs), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strands (ACSs) and Galvanized Steel Wire Strands. We can also supply Aerial Bundled Cables (ABC cables), PVC insulated wires and flexible wires, PVC insulated power cables, XLPE insulated power cables, general rubber sheathed flexible cables, mining cables, welding cables and control cables.


Meeting International Standards
Our products are produced in strict accordance with national standards (GB), and can be produced in accordance with IEC, CCITT, British BS, DIN, JIS, ASTM and NF production, but also according to customer's requirements for non-standard cable product design and manufacturing to meet different customer's needs. Contact us today to begin sourcing.


The Department of Quality Inspection
We have not only a team of QA, but also advanced equipment which are used to test. The QA team is responsible for the quality inspection of the products of the whole company. Mainly responsible for the control of the inspection, measurement and test equipment to make products meet the required requirements and our customer's special needs.

OEM and ODM Services are Welcome
We are a professional OEM and ODM supplier.

• As a OEM supplier: whatever of the cable you need, Zhenglan Cable can provide a bespoke solution cable to meet your particular requirements. Meanwhile, we'll keep it confidential.
• As a ODM supplier: there is a team of design and development, and technicians.

Once we confirmed the detail information of products, we will arrange ASAP. Contact us today to begin sourcing.
