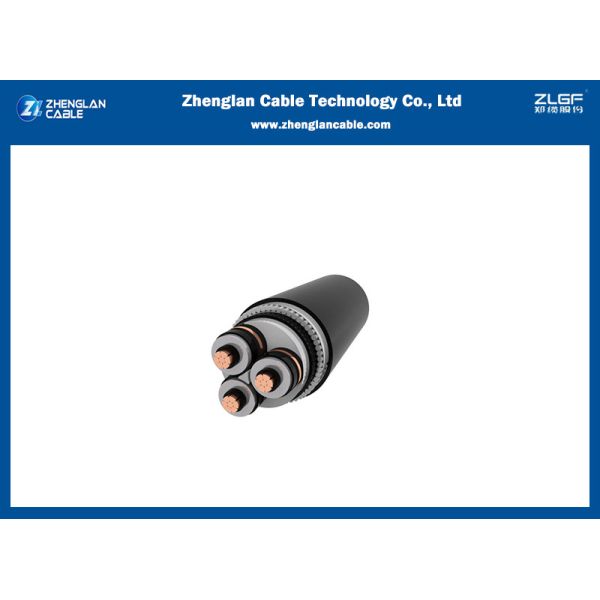

3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable

3 x 185mm2 XLPE Insulated Cable SWA Armour MV Electrical Cable

APPLICATIONS:

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Standard: IEC60502, BS6346, VDE, AS/NZS,etc

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage

1 or 3 core medium voltage

Construction:

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE)

Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Cable Parameters:
8.7/15KV Medium Voltage Single Core Power Cable (Amoured)

Why Choose Zhenglan Cable:

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.

A Professional Manufacturer of Wires and Cables
—Zhenglan Cable Technology Co. Ltd, formerly known as Henan Zhengzhou Cable Co. Ltd, is one of the largest ­scale backbone enterprises in China's wire and cable industry. Our company's registered capital is about $32 million and our headquarters is located at the 49th floor of the South Tower of the Greenland Center, Zhengzhou New District (Twin Towers). Our factory is located in Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area.

Our main products are nine major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables and more) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, home use wires and others.

Wide Product Range to Choose From
Our company is specialized in conductors such as All Aluminium Conductors (AACs), All Aluminium Alloy Conductors (AAACs), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strands (ACSs) and Galvanized Steel Wire Strands. We can also supply Aerial Bundled Cables (ABC cables), PVC insulated wires and flexible wires, PVC insulated power cables, XLPE insulated power cables, general rubber sheathed flexible cables, mining cables, welding cables and control cables.


Meeting International Standards
Our products are produced in strict accordance with national standards (GB), and can be produced in accordance with IEC, CCITT, British BS, DIN, JIS, ASTM and NF production, but also according to customer's requirements for non-standard cable product design and manufacturing to meet different customer's needs. Contact us today to begin sourcing.


The Department of Quality Inspection
We have not only a team of QA, but also advanced equipment which are used to test. The QA team is responsible for the quality inspection of the products of the whole company. Mainly responsible for the control of the inspection, measurement and test equipment to make products meet the required requirements and our customer's special needs.

OEM and ODM Services are Welcome
We are a professional OEM and ODM supplier.

• As a OEM supplier: whatever of the cable you need, Zhenglan Cable can provide a bespoke solution cable to meet your particular requirements. Meanwhile, we'll keep it confidential.
• As a ODM supplier: there is a team of design and development, and technicians.

Once we confirmed the detail information of products, we will arrange ASAP. Contact us today to begin sourcing.
