small dispensing peristaltic pump for liquid filling

Categories Peristaltic Pump
Warranty: 1 year
Customized support: OEM
Brand Name: Huiyu
Model Number: BT100F-1A
Place of Origin: Beijing, China
Application: Food and Beverage Industry, Mining industry, Pharmaceutical industry, Water Treatment Solutions, Metering
Power Source: Electric
Pressure: Low Pressure, Low Pressure
Structure: reciprocal
Power: Electric
Standard or Nonstandard: Nonstandard
Theory: Reciprocating Pump
Brand: Huiyu
flow rate: 0.07-380ml/min
Certification: RoHS
Supply Ability: 100 Set/Sets per Week
Price: $350.00 - $550.00/sets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

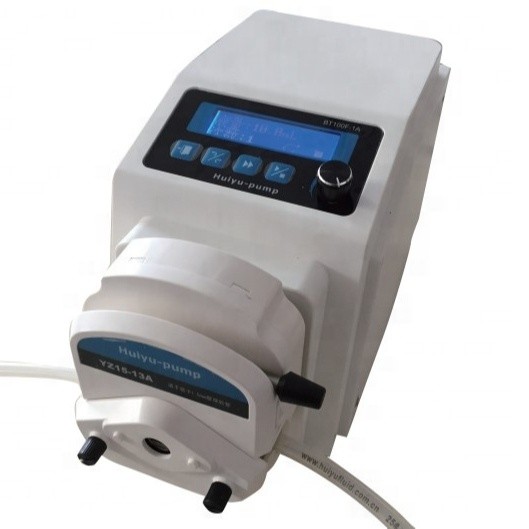

small dispensing peristaltic pump for liquid filling

30ml e liquid milk polish nail twisted glass bottle e juice filling peristaltic pump

Product Description

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible

Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet
Pump headmodelAvailable tubingflow rate range (ml/min)
YZ15-1A13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm0.07-380ml/min
YZ25-1A15#,24# wall thickness 2.5mm0.2-270ml/min
DG-1A
ID≤3.17mm;
wall thickness 0.8-1.0mm;
A Refers to 6 rollers;
B refers to 10 rollers
0.00025-48ml/min
DG-1B0.0002-32ml/min
DG-2A0.00025-48ml/min Single channel
DG-2B0.0002-32ml/min Single channel
DG-4A0.00025-48ml/min Single channel
DG-4B0.0002-32ml/min Single channel


Operation video link on Youtube for reference:

https://youtu.be/y6sA2m8JKAE


Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details


Industrial perisaltic pump BT600J+YZ35


Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

silicone tube

Packaging & Shipping

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head


OEM option

Accessories

CE certificate
