| Categories | Steel Structure Workshop |
|---|---|
| Brand Name: | XGZ |
| Model Number: | BYSS-006 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | China |
| MOQ: | 1 square meter |
| Price: | US $19~99 square meter |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Ton Per Month |
| Delivery Time: | 45 work days |
| Packaging Details: | Standard Container |
| Brace: | Round Bar |
| Building: | Prefabricated Steel Structure |
| Drawing Design: | dwgs Detailing by us |
| Finishing: | Painting |
| Level: | Multi levels |
| Shipment By: | Container or bulk ship |
| Snow Load: | 30~200kg Per Sqm |
| Steel Grade: | Q235B or Q345B |
| Beam: | Hot Rolled/Welded H-Section Steel |
| Cannopy: | Frame+double sheet, 3.2m length |
| Connect: | Bolt/Weld |
| Installation: | Fast and Easy |
| Life Span: | around 40~50 year |
| Lighting System: | Optional |
| Origin: | China |
| Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Wall And Roof: | Steel cladding sheet |
| Wall Type: | Steel Cladding |
| Working Scope: | Design,Fabrication, Installation |
| Building Use: | Prefabricated Workshop Buildings |
| Crane: | 1-100 ton or Custom |
| Dimensions: | as customer's requirement |
| Form: | Portal Frame |
| Main Steel Frame: | H Steel,Z or C Purlin |
| Material Grade: | Q235(ASTM G30), Q345(ASTM G50) |
| Service Life: | 50 years |
| Size: | Customizable |
| Structure Type: | Portal Frame |
| Surface Treatment: | Painting |
| Window: | Aluminum Alloy or PVC |
| Company Info. |
| Qingdao Xinguangzheng Husbandry Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

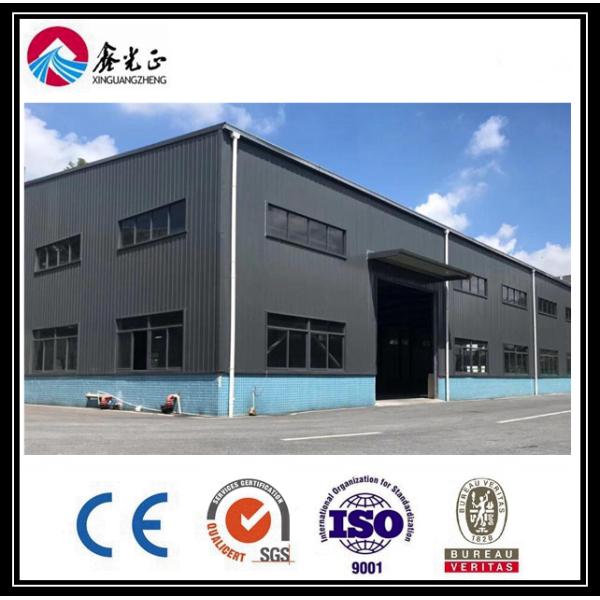

Packaging Industry Light Steel Prefabricated Steel Structure Factory Workshop
Product Description
Advantages of Steel Structure Building
1. Flexible layout| Steel Frame | Steel Column | Hot rolled H-beam or welded H beam, size will be calculated by our engineers team according to the building size | Q355B | |
| Steel Beam | Q355B | |||
| Wind Resist Column | Q355B | |||
| Connected Plate | The thickness will be calculated by our engineers team according to the building size | Q355B | ||
| Tie Bar | ¢89*3 | Q235B | ||
| Horizontal Support | ¢20 Round steel | Q235B | ||
| L Shape Steel for Bracing | L50*3 | Q235B | ||
| Roof Purlin | C160*50*20*2.0 or other sizes depend on different conditions | Q235B galvanized | ||
| Wall Purlin & Canopy Beam Purlin | ||||
| Structure Surface Treatment | Any color painting or hot-dip galvanize | |||
| Roof Claddings | Corrugated Steel Sheet | L*840, the thickness can be 0.426mm, 0.476mm, or other thickness as discussed | |
| EPS Sandwich Panel | L*1050*50mm/75mm/100mm, skin sheets thickness can be 0.426mm,
0.476mm, or other thickness as discussed | ||
| Rock Wool Sandwich Panel | L*960/950*50mm/75mm/100mm, skin sheets thickness can be 0.426mm,
0.476mm, or other thickness as discussed | ||
| PU Sandwich Panel | L*960/950*50mm/75mm/100mm, skin sheets thickness can be 0.426mm,
0.476mm, or other thickness as discussed | ||
| Wall Claddings | Corrugated Steel Sheet | L*840, the thickness can be 0.426mm, 0.476mm, or other thickness as discussed | |
| EPS Sandwich Panel | L*1150/950*50mm/75mm/100mm, skin sheets thickness can be 0.426mm,
0.476mm, or other thickness as discussed | ||
| Rock Wool Sandwich Panel | |||
| PU Sandwich Panel | |||
| Covering Accessories | Including the sealing covering, glue, hardware, etc. | ||
| Water Gutter | 0.8mm stainless steel | ||
| Water Pipe | D110 or D160 depends on the building size | ||
| Embedded Bolts | M24 or other size depends on the building size | ||
| Turnbuckles Bolts | M20 other size depends on the building size | ||
| High strength Bolts | M20*80 other size depends on the building size | ||
| Normal Bolts | M20*55 other size depends on the building size | ||
| Normal Bolts | M12*35 other size depends on the building size | ||
| Steel Rod | ¢12 | ||
| Rolling Gate | 4000mm*5000mm(high) or depends on the client's requirement | ||
| Automatic Machine for Rolling Door | |||
| Canopy | Size depends on the building size | ||
| Ventilation Materials | Ventilation balls by nature wind | ||
| Industrial fans by power | |||
| Steel Door for Man | 880W*2050H | ||
| Aluminum Sliding Window | 1500mm*3000mm or depends on the client's requirement | ||

|
