| Categories | Photovoltaic Solar Cable |
|---|---|
| Brand Name: | Solar cable |
| Model Number: | H1Z2Z2-K/PV1-F/62930 IEC131 |
| Place of Origin: | China |
| Certification: | ISO9001/CCC/CE/TUV |
| Application: | Photovoltaic Power Generation System/Solar System |
| Conductor: | Tinned Copper |
| Temperature rating: | 125℃ |
| Maximum short-circuit temperature: | 250℃ |
| Insulation Material: | XLPO/XLPE |
| Warranty: | 25 Year |
| Advantage: | Easy To Solder, Better Conductivity, Anti-oxidation, Anti-corrosion, Sturdy And Durable |
| Company Info. |
| Zhenglan Cable Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

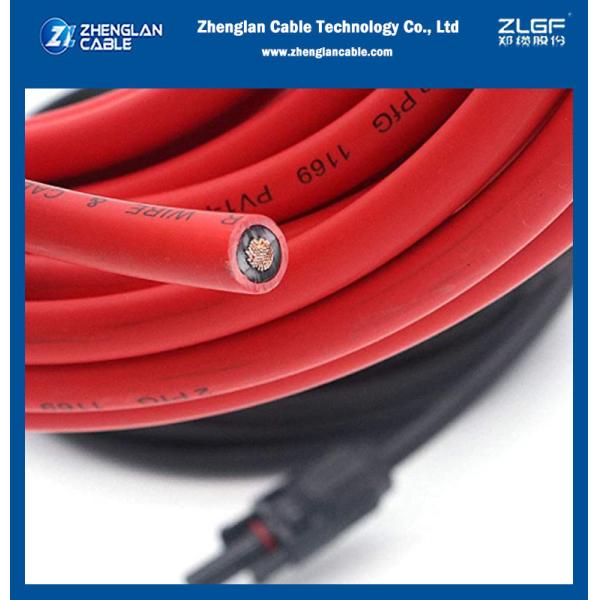

Solar cables, also known as photovoltaic (PV) cables, are specially designed cables used in photovoltaic power generation applications such as solar panels. These cables are intended for outdoor use in direct sunlight and are designed to be resistant to UV radiation and extreme weather conditions.
The Photovoltaic Solar Cable is sturdy and durable, with an elongation of after aging of ≥70%. This feature makes it resistant to wear and tear, corrosion and oxidation, and other environmental factors that can cause damage to the cable. The Solar Cable has a maximum short-circuit temperature of 250℃, which ensures that it can handle high levels of current without melting or catching fire.
The Solar Cable is versatile and can be used in various scenarios and occasions. It is ideal for outdoor use, such as solar panels, electric vehicles, and other renewable energy applications. It is also suitable for indoor use, such as home and office wiring, appliances, and electrical devices. The Solar Cable's easy-to-solder feature makes it convenient for users to connect and disconnect cables when needed without compromising the cable's integrity.

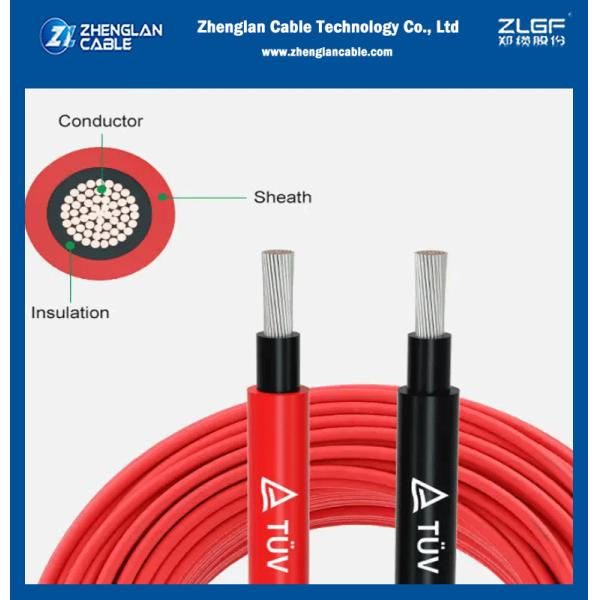

Conductor: Tinned CopperRated Voltage:AC 1KV, DC 1/1.5KV
Rated Current:41/55/70A
Insulation: XLPE
Jacket: XLPE

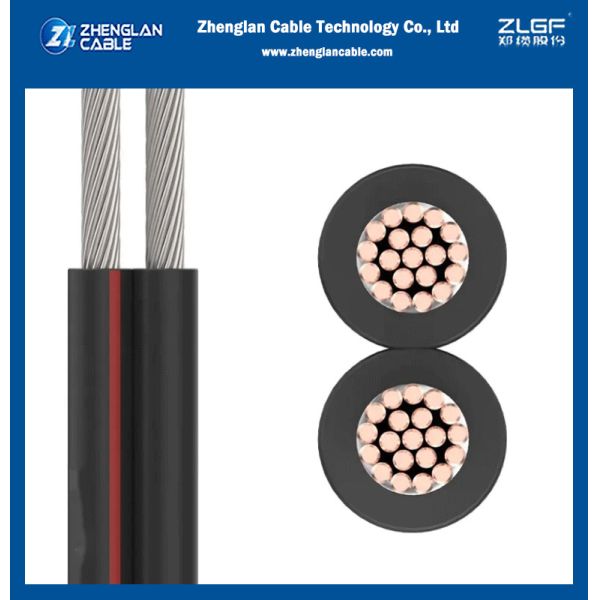

Cores: Single core, 2cores
Section Area: 1.5mm-35mm
Temperature: -45 ℃ to 120 ℃
Packaging: Iron Or Wooden Drum
Application Areas: Large scale photovoltaic power plants, urban
commercial power generation, and other fields
| No. Of cores x Construction | Conductor Construction | Conductor No./mm | Insul. | Current Aarring Capacity (A) |
| (mm2) | (n / mm) | Thick. (mm) | ||
| 1X1.5 | 30/0.25 | 1.58 | 4.9 | 30 |
| 1X2.5 | 50/0.256 | 2.06 | 5.45 | 41 |
| 1X4.0 | 56/0.3 | 2.58 | 6.15 | 55 |
| 1X6 | 84/0.3 | 3.15 | 7.15 | 70 |
| 1X10 | 142/0.3 | 4 | 9.05 | 98 |
| 1X16 | 228/0.3 | 5.7 | 10.2 | 132 |
| 1X25 | 361/0.3 | 6.8 | 12 | 176 |
| 1X35 | 494/0.3 | 8.8 | 13.8 | 218 |
| 1X50 | 418/0.39 | 10 | 16 | 280 |
| 1X70 | 589/0.39 | 11.8 | 18.4 | 350 |
| 1X95 | 798/0.39 | 13.8 | 21.3 | 410 |
Q: What is the model number of this solar cable?
A: The model number of this solar cable is PV1-F TUV EN 50618 H1Z2Z2-K.
Q: Where is this solar cable manufactured?
A: This solar cable is manufactured in China.
Q: What is the voltage rating for this solar cable?
A: The voltage rating for this solar cable is 1000V DC.
Q: Is this solar cable certified?
A: Yes, this solar cable is certified by TUV and EN 50618 standards.
|
