W01-358-0119 Firestone Industrial Bellows Single Convoluted Rubber Bellows

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 1B420150M10-G1/4
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Brand: AIRSUSTECH
Product Number: 1B420150M10-G1/4
Cross References: W01-M58-6974
Structure: Single Convoluted
Compressed Height: 51 MM
Extended Height: 178 MM
Function: Reduce Shock
Quality: 100 % Tested
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-0119 Firestone Industrial Bellows Single Convoluted Rubber Bellows

W01-358-0119 Firestone Industrial Bellows Single Convoluted Rubber bellows only


Product Description

Rubber lining is a retractable inner mold with different shapes formed by the polymer properties of vulcanized rubber and high-strength fiber cloth.It is a product made of vulcanized rubber and fibers. It is compressive, elastic and airtight. After being filled with compressed air, the air bag will expand to meet the design requirements of its cross-section. Under the premise of ensuring quality, if it is used improperly, the service life of the air spring will be greatly shortened. Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in industrial machinery, instrumentation and other equipment.


Product Specifications

Cover Plate

Top Cover Plate Diameter: 384 mm

Screw Center Distance of Top Cover Plate: 350 mm

Bottom Cover Plate Diameter: 384 mm

Screw Center Distance of Bottom Cover Plate: 350 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth:18(M-10×1.5) Bolts

Bottom Cover Plate Screw(Nut) Tooth: 18(M-10×1.5) Bolts

Rubber Bellow

Rubber Bellow Max. Diameter: 442 mm

Minimum Height: 51 mm

Maximum Height: 178 mm

Product Technical Data

Force Table (Use for Airstrokeactuator design)

Assembly

Height

(mm)

Volume

@ 7 Bar

(cu cm)

EFF Area
@ 7 Bar

(cm sq)

kN Force

@ 3 Bar

@ 4 Bar

@ 5 Bar

@ 6 Bar

@ 7 Bar

1401408184723.2632.3140.9650.5959.29
1301309792225.7835.4644.8455.1734.52
1201213398227.7837.9947.9858.8568.74
11011058103329.4840.1550.6762.0072.34
10010008107530.8341.9752.8564.5375.23
908840111031.9943.5354.7366.7077.72
807704113932.9644.8156.2568.4579.72
706445116233.7945.8557.4869.8681.34

Cross References

Firestone

W01-358-8158, W01 358 8158, W013588158, WO1-358-8158, WO1 358 8158, WO13588158

W01-358-0119, W01 358 0119, W013580119, WO1-358-0119, WO1 358 0119, WO13580119

W01-M58-6974, W01 358 6974, W013586974, WO1-358-6974, WO1 358 6974, WO13586974

Contitech

FS 960-12 RS, FS 960 12 RS, FS960-12 RS, FS 960-12RS

FS960 12 RS, FS 960 12 RS, FS960-12RS, FS96012RS

FS 960-12 CI, FS 960 12 CI, FS960-12 CI, FS 960-12CI

FS960 12 CI, FS 960 12 CI, FS960-12CIS, FS96012CI


Firestone Style 119, We Can Supply

  • Ribbed neck aluminum 119 bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-M58-6974, W01 M58 6974, W0M586974, WO1-M58-6974, WO1 M58 6974, WOM586974
  • Rubber bellows only
W01-358-0119, W01 358 0119, W013580119, WO1-358-0119, WO1 358 0119, WO13580119
  • Rolled plate assembly, 1/2 blind nuts, 3/4 NPT
W01-358-7477, W01 358 7477, W013587477, WO1-358-7477, WO1 358 7477, WO13587477

Properties
  1. Maintenance-free
  2. High operational reliability
  3. Long service life
  4. Resistance to different media
  5. Simple, economical assembly

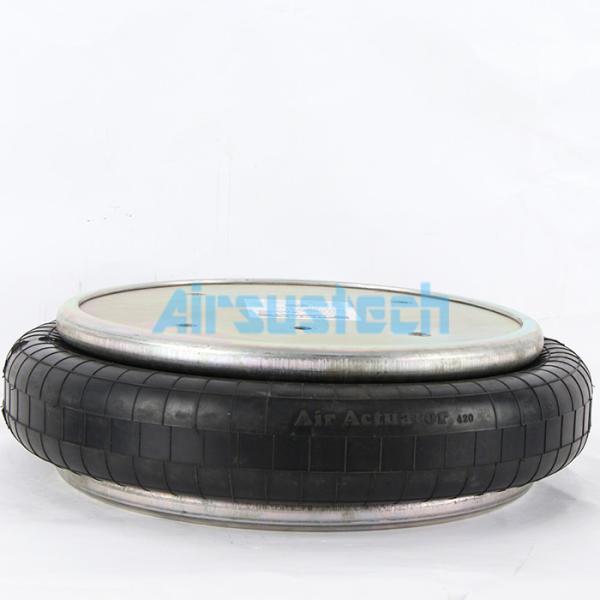

The Real Pictures
