| Categories | Android Motherboard |
|---|---|
| Brand Name: | Shi Zun |
| Model Number: | H-A133L Motherboard |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100+pcs+day |
| Packaging Details: | 100mm* 80mm* 9mm |
| CPU: | Allwinner A133, quad-core Cortex-A53, Clock up to 1.6GHz |
| GPU: | PowerVR GE8300 |
| RAM: | Standard 1GB LPDDR4, 2GB/4GBoptional |
| ROM: | Standard 16GB EMMC, up to 128GB |
| LVDS: | 31Pin FPC MIPI interface, supporting up to 1080P resolution |
| MIPI: | 30Pin dual-channel LVDS interface, supporting up to 1080P resolution |
| Headphone: | American standard four-stage headset integrated 3.5mm socket |
| Line Output: | Standard left and right channel line output |
| MIC Input: | Differential MIC input |
| Amplifier Output: | 8 ohm·-6W dual- channel audio amplifier output |
| USB Host: | 2 external USB2.0, 3 built-in USB2.0 |
| USB OTG: | 1 USB OTG interface |
| TF Card: | Self-elastic TF card socket, supports 256GB TF card |
| Serial ports: | 1-way TTL/RS232 serial port, 1-way TTL/RS232/RS485 serial ports |
| RTC: | Low power consumption RTC circuit with CR1220 battery |
| 12C: | 1-way I2C interface |
| Backlight: | 1-way backlight control interface, supports switch and brightness adjustment |
| GPIO: | 5-way GPIO signals |
| Access Control: | 1-way SPDT access control relay signal (optional) |
| Infrared: | Standard infrared remote control receiver and infrared receiving pin header |
| Button: | Burn button and power button |
| Pilot lamp: | Blue work indicator light |
| POE: | 1-way POE power receiving interface |
| Ethernet: | 1-way 10/100Mbps adaptive Ethernet |
| Wi-Fi: | High-performance WiFi, supports 802.11 b/g/n/ac |
| Bluetooth: | High-performance Bluetooth, Support BT V4.2 |
| DC Input: | 12V DC socket, supports 9V-15V wide voltage input |
| Size: | 100mm* 80mm |
| Thickness: | 9mm |
| Structure Compatibility: | Compatible with H0、H3、H-3399、H-3566、H-3568、H-T972、H-A133 structure and interchangeable |
| Operating Temperature: | -20℃~70℃ |
| Humidity: | 0%-95% (non-condensing) |

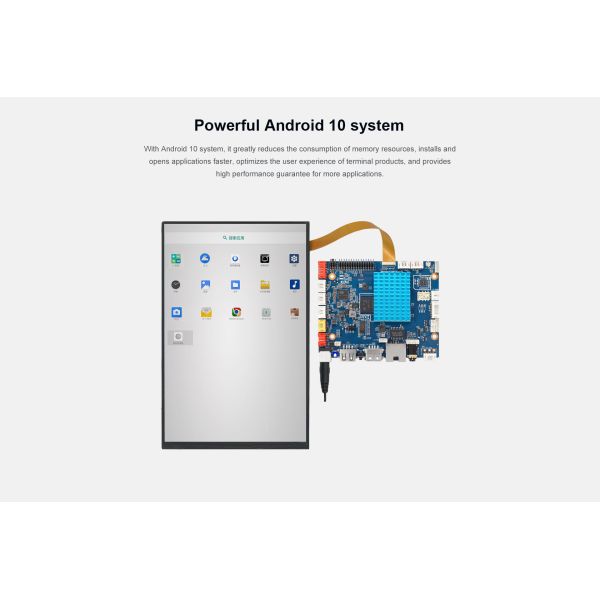

| Android system: | Recommend Android 10.0 |
| Linux System: | Linux Optional |
H-A133L Smart HMI Motherboard Up to 5 USB Ports 9~15V wide voltage DC power supply

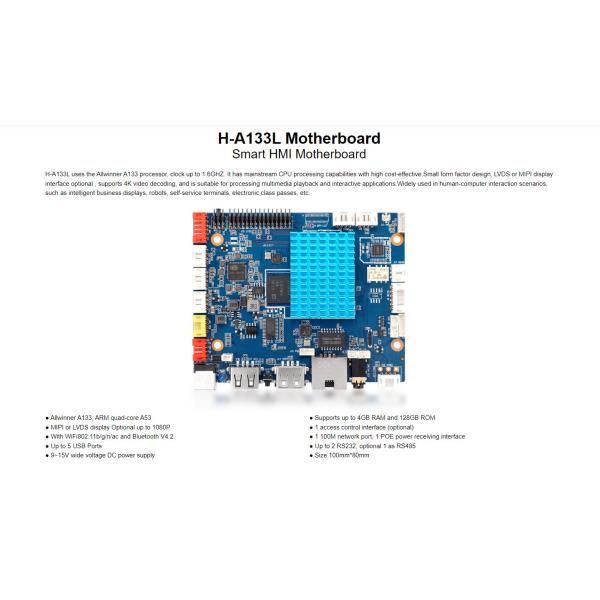

H-A133L Smart HMI Motherboard Description:
H-A133L uses the Allwinner A133 processor, clock up to 1.6GHZ. It has mainstream CPU processing capabilities with high cost-effective.Small form factor design, LVDS or MIPI display interface optional , supports 4K video decoding, and is suitable for processing multimedia playback and interactive applications.Widely used in human-computer interaction scenarios, such as intelligent business displays, robots, self-service terminals, electronic class passes, etc.
H-A133L Smart HMI Motherboard Parameters:
Keyword: | Smart HMI Motherboard | CPU: | Allwinner A133, quad-core Cortex-A53, Clock up to 1.6GHz |
|---|---|---|---|
| GPU: | PowerVR GE8300 | TF Card: | Self-elastic TF card socket, supports 256GB TF card |
RAM: | Standard 1GB LPDDR4, 2GB/4GBoptional | ROM: | Standard 16GB EMMC, up to 128GB |
USB Host: | 2 external USB2.0, 3 built-in USB2.0 | Serial Port: | 1-way TTL/RS232 serial port, 1-way TTL/RS232/RS485 serial ports |
Amplifier Output: | 8 ohm·-6W dual- channel audio amplifier output | Android: | Recommend Android 10.0 |
|
