| Categories | M8 Connectors |
|---|---|
| Model Number: | H0805BMA-0 |
| Place of Origin: | Guangdong, China |
| MOQ: | 50 pieces |
| Price: | Negotiable |
| Brand Name: | KRONZ |
| Certification: | CE |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pieces per month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Polybag packing |
| Contact carrier material: | PA, black |
| Housing material: | PBT/PA, black |
| Insulation Resistance: | ≥ 100MΩ |
| Contact resistance: | ≤ 5mΩ |
| Pollution degree: | 3 |
| Ambient temperature: | -25~+85℃ |
| Endurance(shell): | >100 cycles |
| Degree of protection: | IP67 |
| Company Info. |
| Kronz (guangzhou) Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Insulation Resistance | ≥ 100MΩ |
| Contact resistance | ≤ 5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Endurance(shell) | >100 cycles |
| Degree of protection | IP67 |

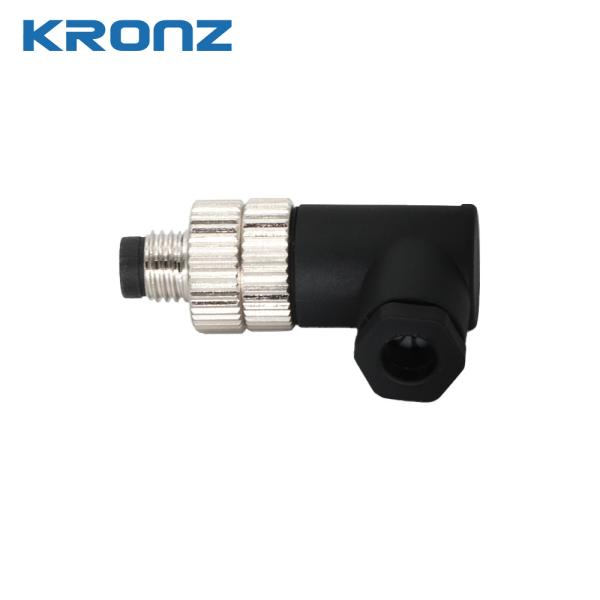

The M8 5-pin male connector with B-code provides a robust solution for applications requiring simultaneous power and data signal transmission. Designed for high-performance applications, this connector features an angled design for easy installation in confined spaces.
| Specification | Value |
|---|---|
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
