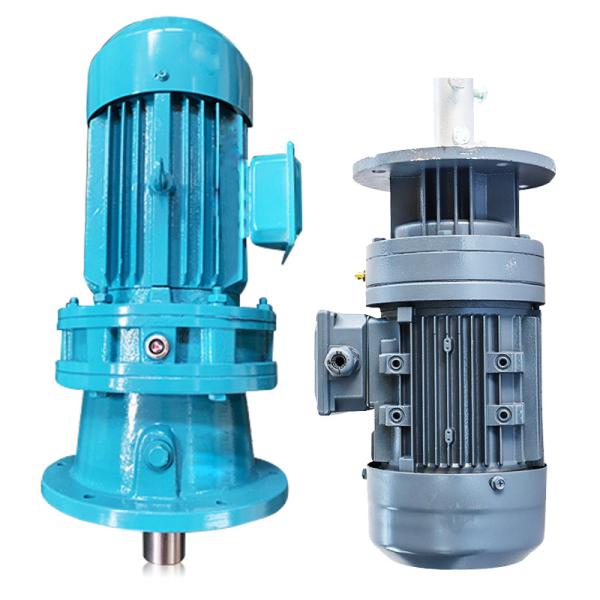

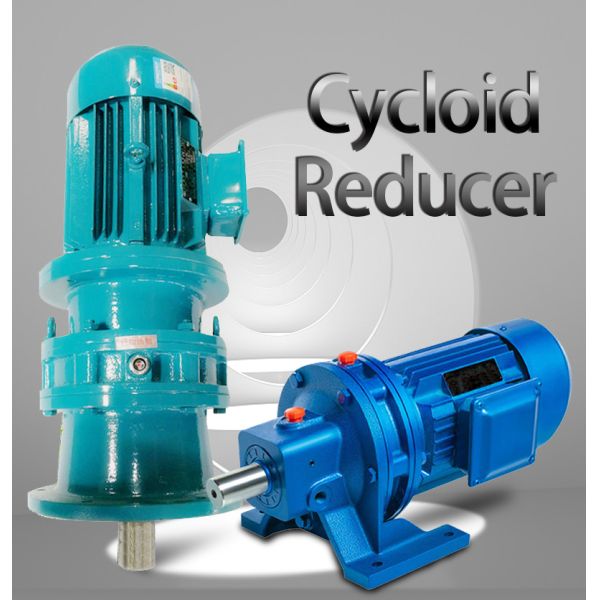

OEM Horizontal Cycloidal Gear Reducer Electric Motor For Architectural Industry

Horizontal Cycloidal Gear Reducer Electric Motor Speed Reducer For Architectural Industry

Description :

The cycloidal reducer is an innovative transmission device that employs the K-H-V planetary transmission principle with minimal tooth variance. In this mechanism, a unique transmission process unfolds: a dual eccentric sleeve, set at a 180-degree offset, is affixed to the input shaft. Two roller bearings, acting as rotating arms, are mounted on this eccentric sleeve to create an H-shaped mechanism. The eccentricity of the two cycloidal wheels' center holes aligns with the raceway of the upper arm bearing, forming an internal meshing deceleration system with a one-tooth difference.

This product finds extensive utility in various industries including metallurgy, mining, lifting, transportation, cement production, construction, chemical engineering, printing and dyeing, pharmaceuticals, food processing, environmental protection, and more. It is designed to operate effectively within a temperature range of -40°C to 40°C. When running at rated load and speed, the temperature increase of the reducer's oil reservoir should not surpass 60°C, with the maximum oil temperature staying below 80°C.

model	Power (KW )	shaft diameter (mm)	Center height (mm)	Mounting pitch (mm)	key size (mm)	shaft length (mm)	Shaft to hole (mm)
BWD-B0- 0.75	0.75	30	100	90*150	8	35	93
BWD-B1-1.1	1.1	35	120	110*240	10	56	125
BWD-B1-1.5	1.5	35	120	110*240	10 10	56	125
BWD-B2-2.2	2.2	45	140	150*280	14	68	144
BWD-B2-3.0	3.0	45	140	150*280	14	68	144
BWD-B3-5.5	5.5	55	160	200*340	16	80	149
BWD-B3-7.5	7.5	55	160	200*340	16	80	149

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
