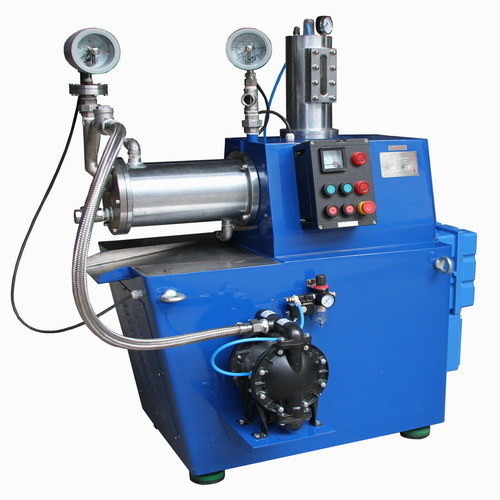

5L Pigment Mill Horizontal Nano Grinding Machine Zirconium Beads

5L Horizontal Bead Mill for Pigment Production in the Applicable Industry ZM5 Series

5L Horizontal Bead Mill for Paint, Ink, Pigment (ZM5 series)

5L horizontal bead mill-Model (ZM5 Series)

5L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is only 5 liters, then they suitable for small batches.

Even 5L, there are different materials and constructions to meet with the different grinding requirements. For example,

"ZM5SB3310-X" specification.

1) 5L

2) Double mechanical seal

3) Ex proof

4) Mold steel for inner grinding chamber and grinding discs

5) Double diaphragm fluid transfer pump

6) Without AC drive

7) Dynamic gap separator

8) Chilling water jacket

Option:

1) Single mechanical seal, double mechanical seal.

2) Ex proof or Non Ex proof.

3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.

4) Double diaphragm fuild transfer pump, gear pump, screw pump.

5) AC drive or without AC drive.

6) Dynamic gap separator or static gap separator.

5L Horizontal Bead Mill for Paint, Ink, Pigment (ZM5 series)

Model Parameter	ZM5S	ZM5D	ZM5SB	ZM5DB
Effective cylinder volume (L)	5	5	5	5
Main motor power (KW)	7.5/11	7.5/11	7.5/11	7.5/11
Grinding medium load (L)	About 85% of the cylinder volume
Materials in/outlet pipe diameter	G3/4	G3/4	G3/4	G3/4
Cooling water in/outlet pipe diameter	G3/4	G3/4	G3/4	G3/4
Pump pressure	0.7MPa
Compressed air consumption(m 3 /min)	0.2
