ACSR DINGO 150mm2 AL18/3.35 ST 1/3.35 Aluminum Conductor Steel Reinforced BS215-2

APPLICATIONS ACSR

conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

CABLE CONSTRUCTION ACSR

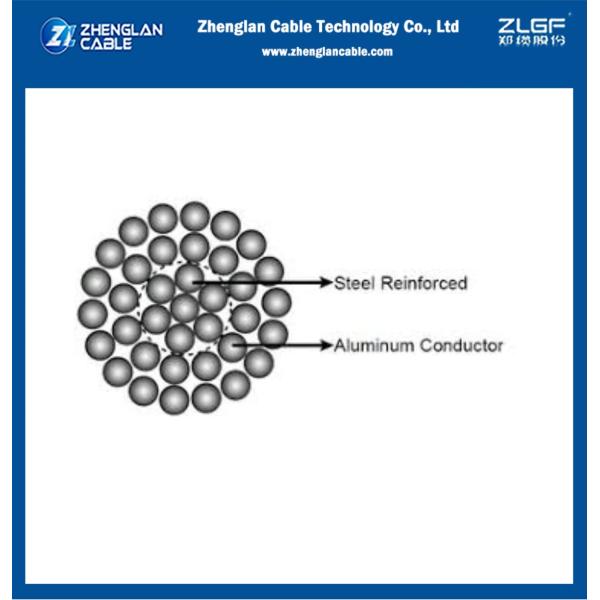

conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

PHYSICAL AND THERMAL PROPERTIES

Ambient Temperature: -5°C - 50°C

Isokeraunic level: 10 - 18

Relative Humidity: 5 - 100%

Our main products are

overhead power transmission use bare conductor(ACSR, AAC, etc)

1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)

STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable

STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable

450/750V instrument use control cable (shielded or unshielded)

300/300V, 300/500V, 450/750V fixed installation use building wire

A Professional Manufacturer of Wires and Cables
—Zhenglan Cable Technology Co. Ltd, formerly known as Henan Zhengzhou Cable Co. Ltd, is one of the largest ­scale backbone enterprises in China's wire and cable industry. Our company's registered capital is about $32 million and our headquarters is located at the 49th floor of the South Tower of the Greenland Center, Zhengzhou New District (Twin Towers). Our factory is located in Zhengzhou Cable Science and Technology Industrial Park of the Wuzhi industrial area.

Our main products are nine major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables and more) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, home use wires and others.

Wide Product Range to Choose From
Our company is specialized in conductors such as All Aluminium Conductors (AACs), All Aluminium Alloy Conductors (AAACs), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strands (ACSs) and Galvanized Steel Wire Strands. We can also supply Aerial Bundled Cables (ABC cables), PVC insulated wires and flexible wires, PVC insulated power cables, XLPE insulated power cables, general rubber sheathed flexible cables, mining cables, welding cables and control cables.


Meeting International Standards
Our products are produced in strict accordance with national standards (GB), and can be produced in accordance with IEC, CCITT, British BS, DIN, JIS, ASTM and NF production, but also according to customer's requirements for non-standard cable product design and manufacturing to meet different customer's needs. Contact us today to begin sourcing.


The Department of Quality Inspection
We have not only a team of QA, but also advanced equipment which are used to test. The QA team is responsible for the quality inspection of the products of the whole company. Mainly responsible for the control of the inspection, measurement and test equipment to make products meet the required requirements and our customer's special needs.

OEM and ODM Services are Welcome
We are a professional OEM and ODM supplier.

• As a OEM supplier: whatever of the cable you need, Zhenglan Cable can provide a bespoke solution cable to meet your particular requirements. Meanwhile, we'll keep it confidential.
• As a ODM supplier: there is a team of design and development, and technicians.

Once we confirmed the detail information of products, we will arrange ASAP. Contact us today to begin sourcing.
